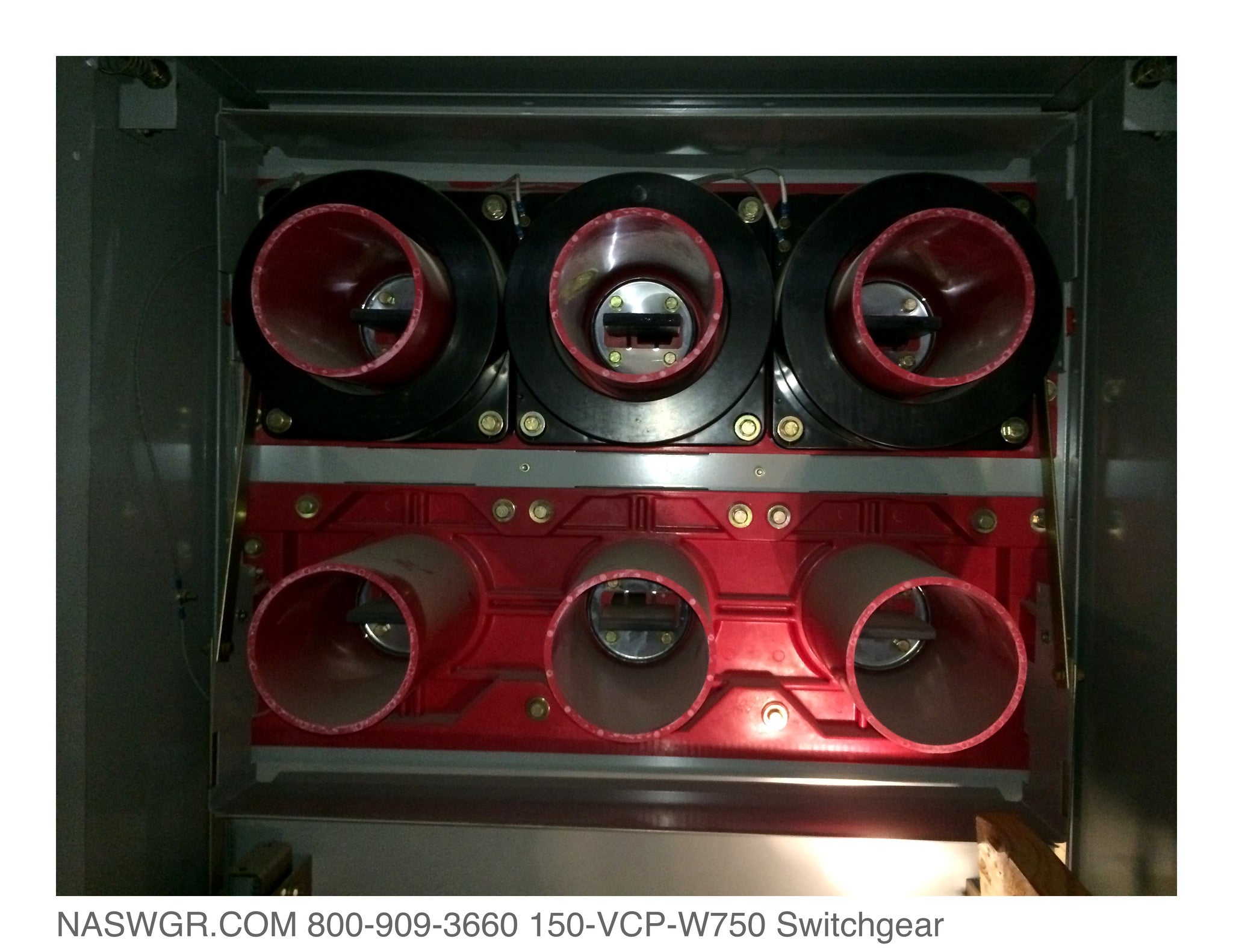

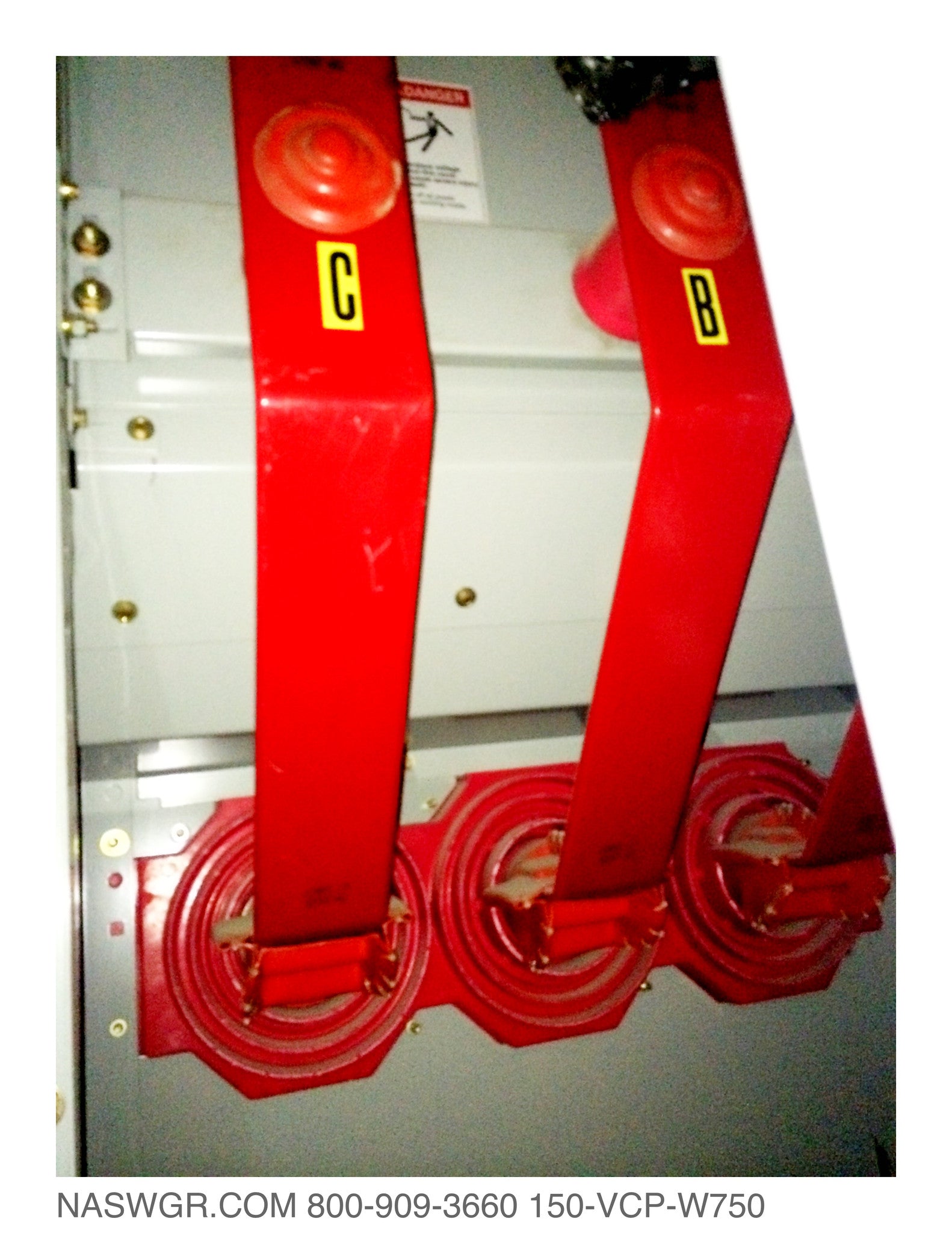

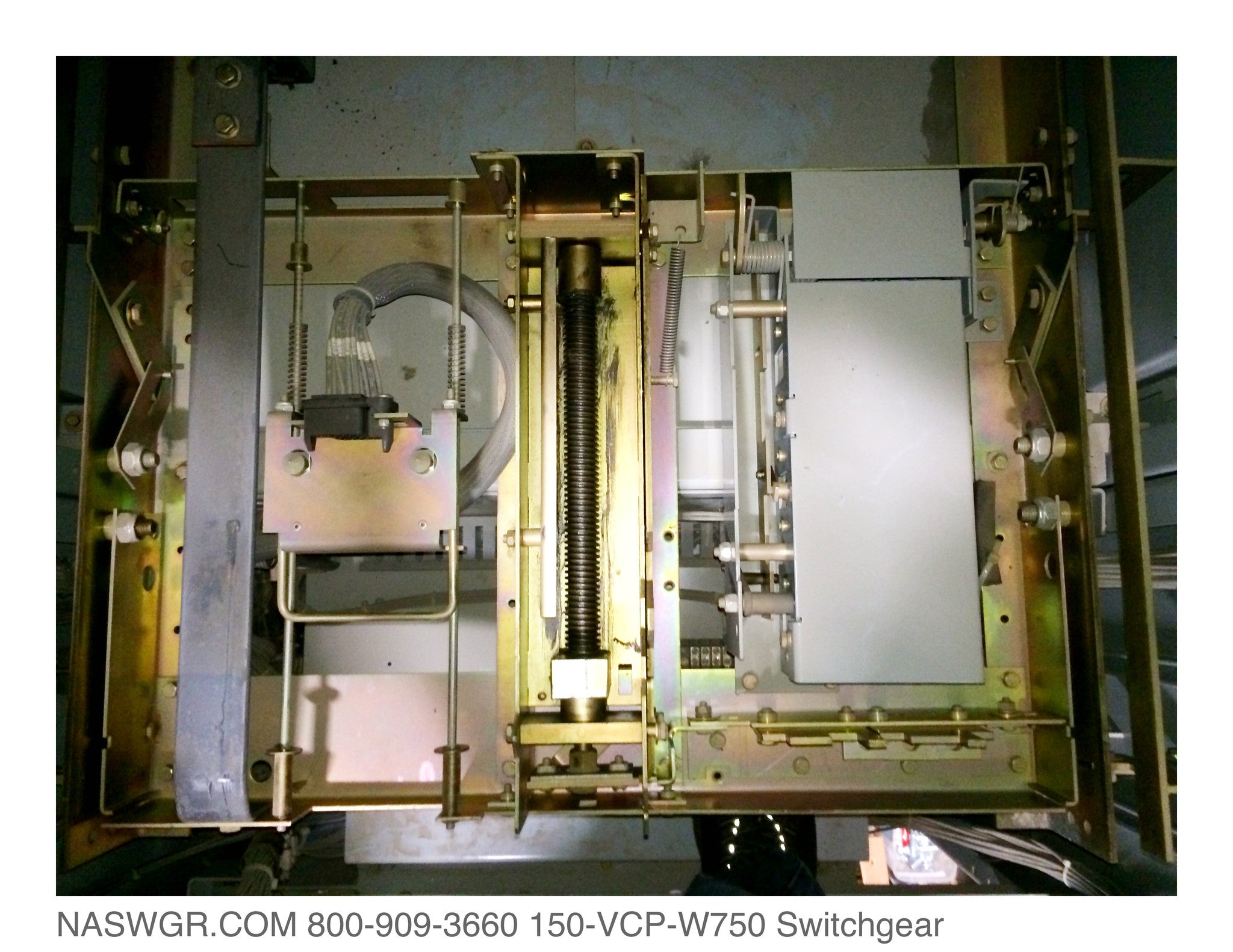

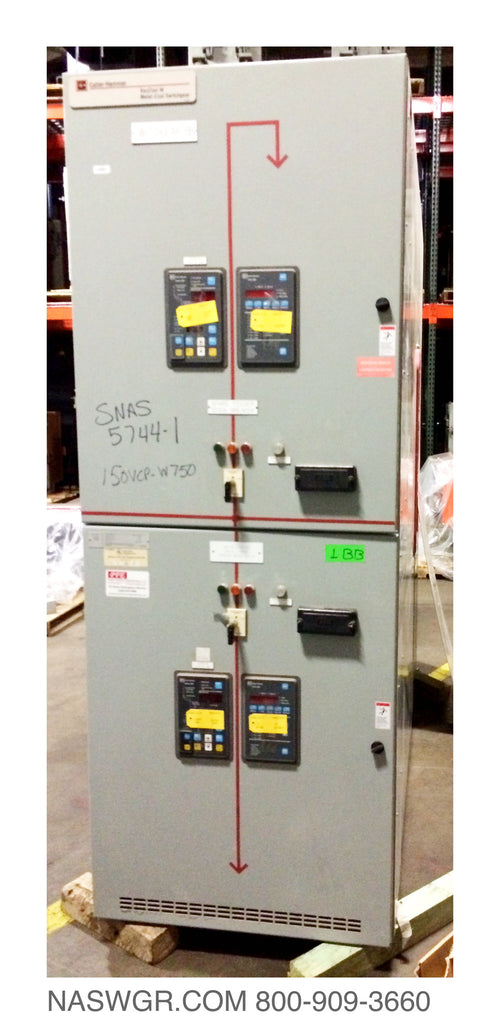

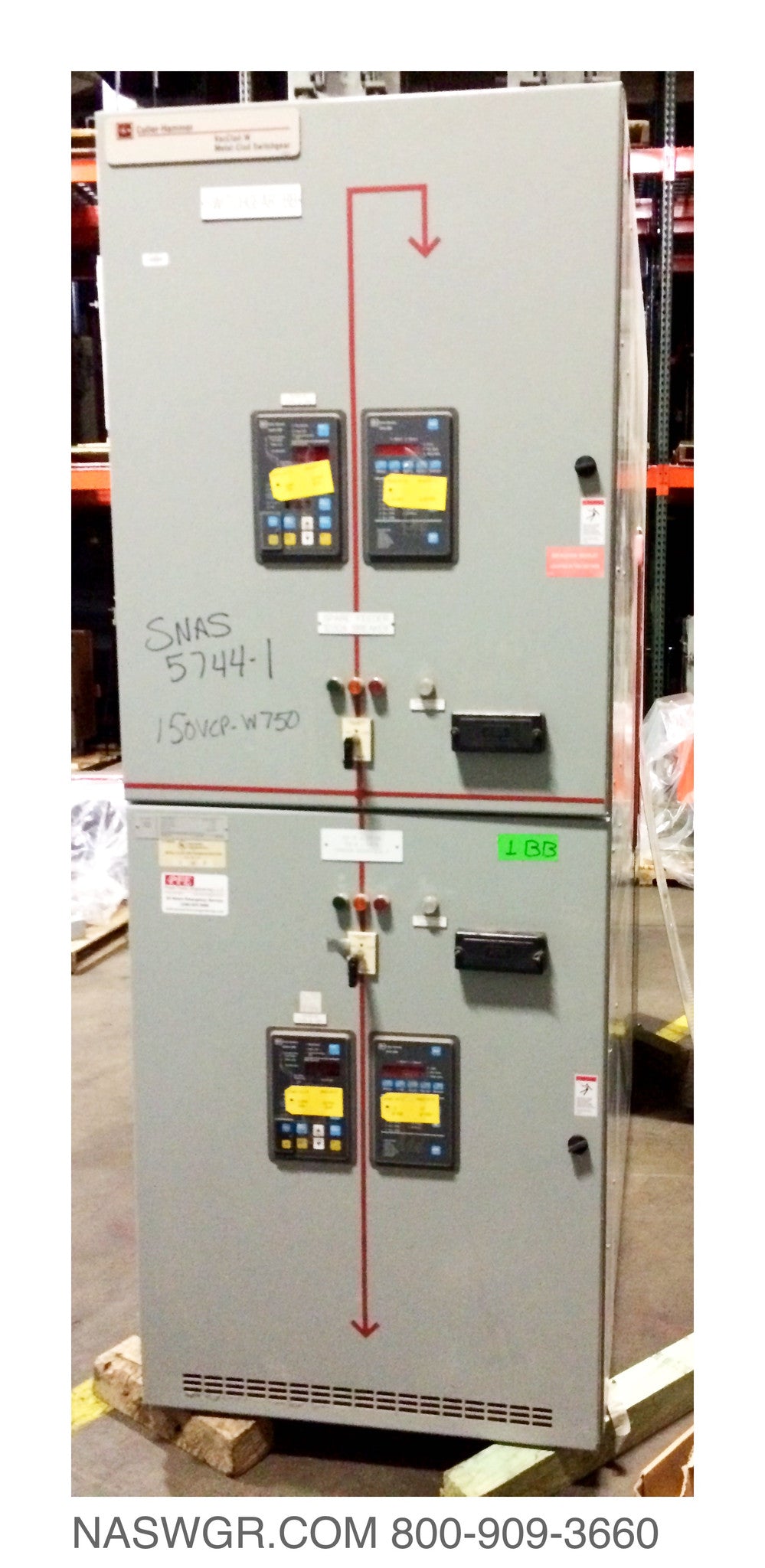

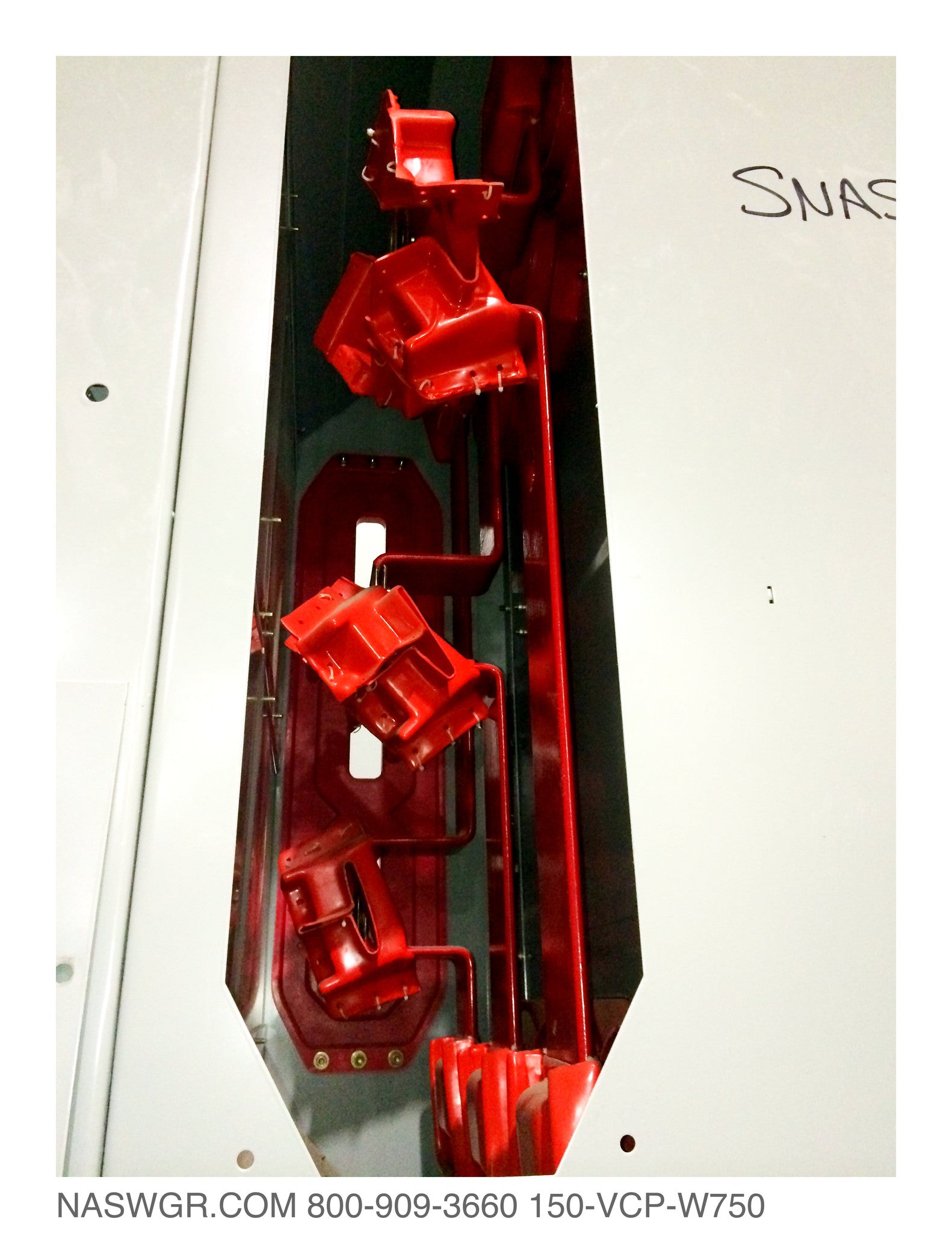

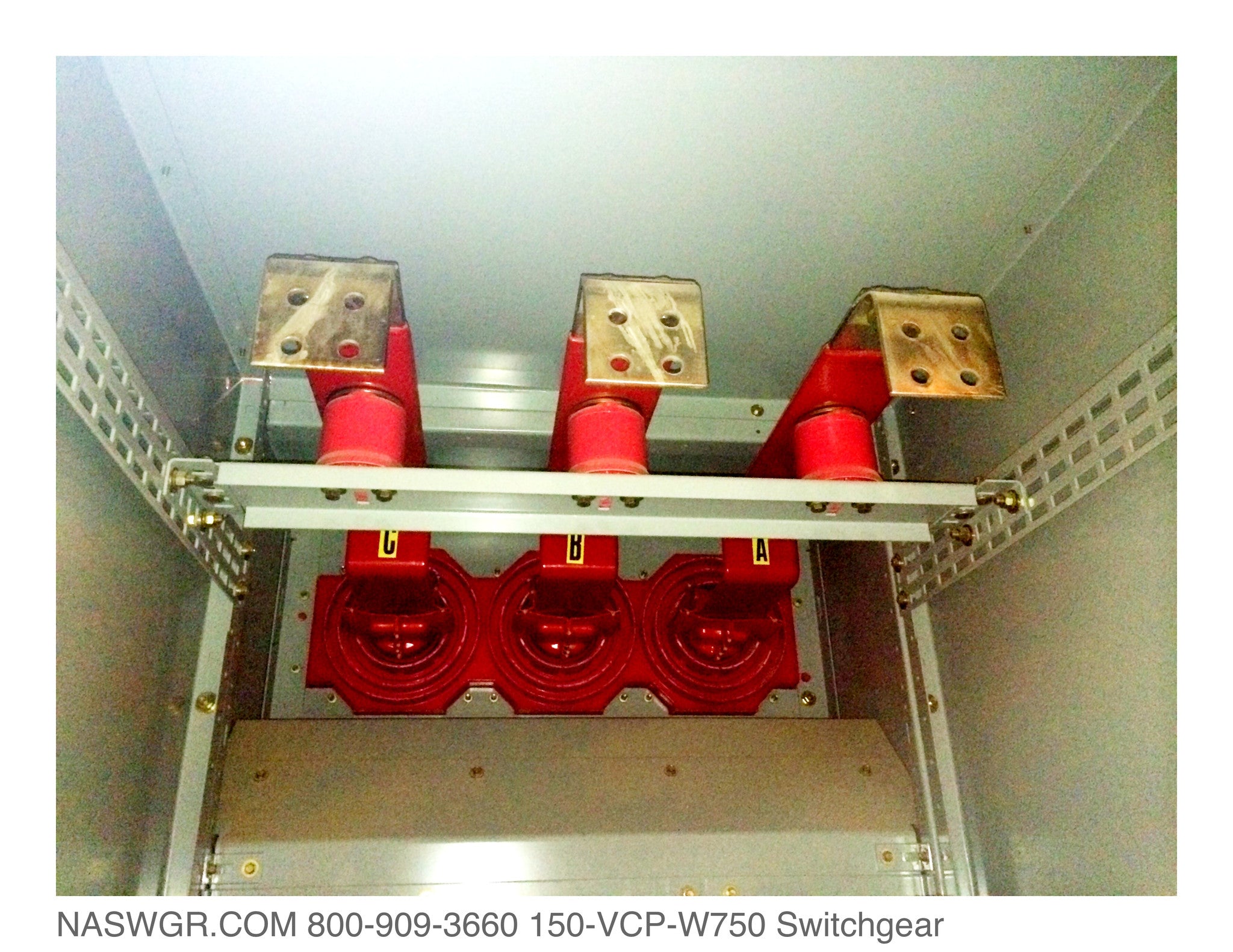

150VCP-W750 Switchgear

Switchgear Parts or Complete
Cutler Hammer VacClad-W Metal Clad Switchgear
EATON 150VCP-W750 Switchgear
Cutler Hammer 150VCP-W750 Switchgear

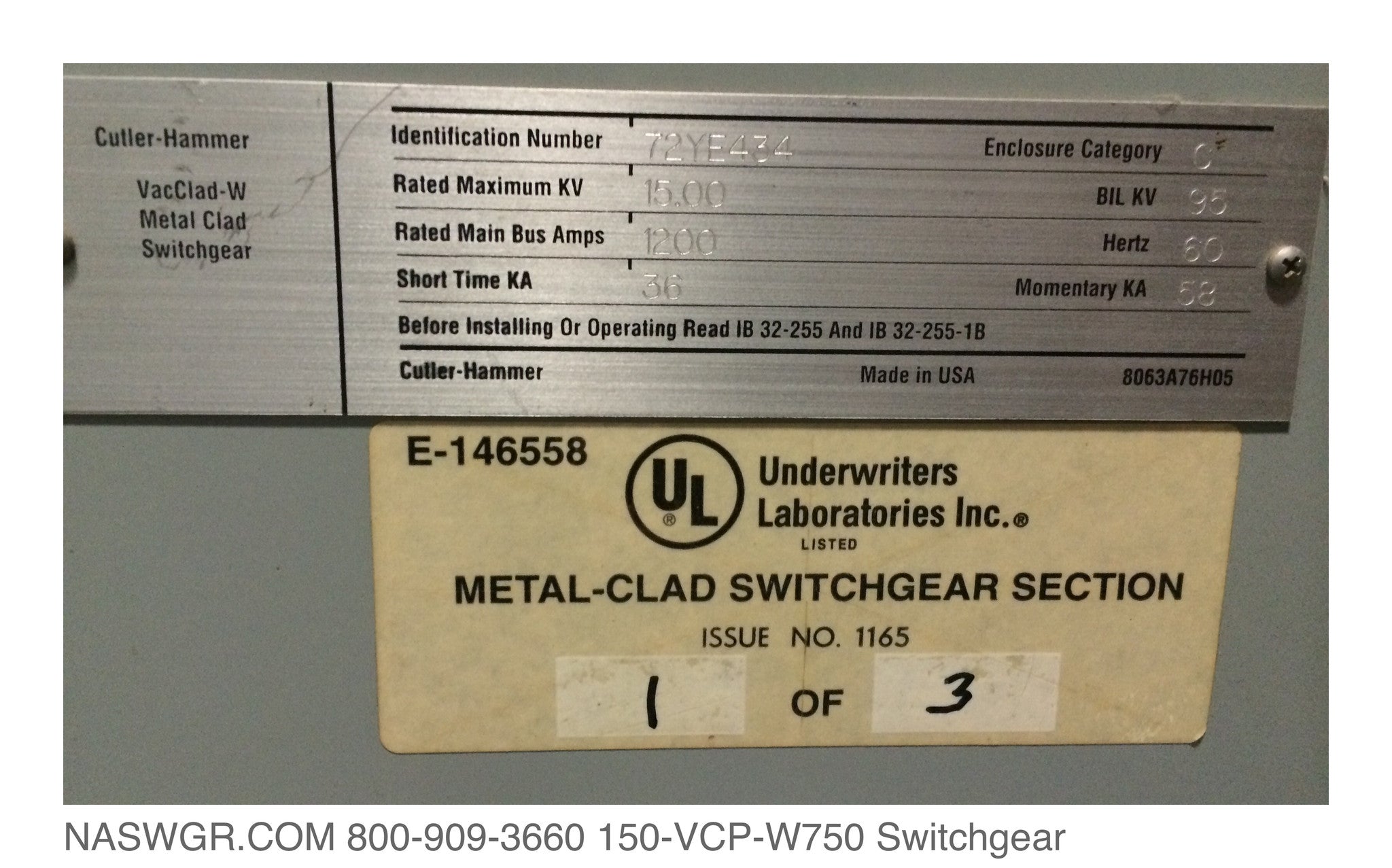

15kV
750 MVA
3 Pole
1200 Amp Rated
95kV BIL
60 HERTZ
Short Time KA 36
Momentary KA 58
Enclosure Category C (Indoor)

SNAS5744-2
With the following Components

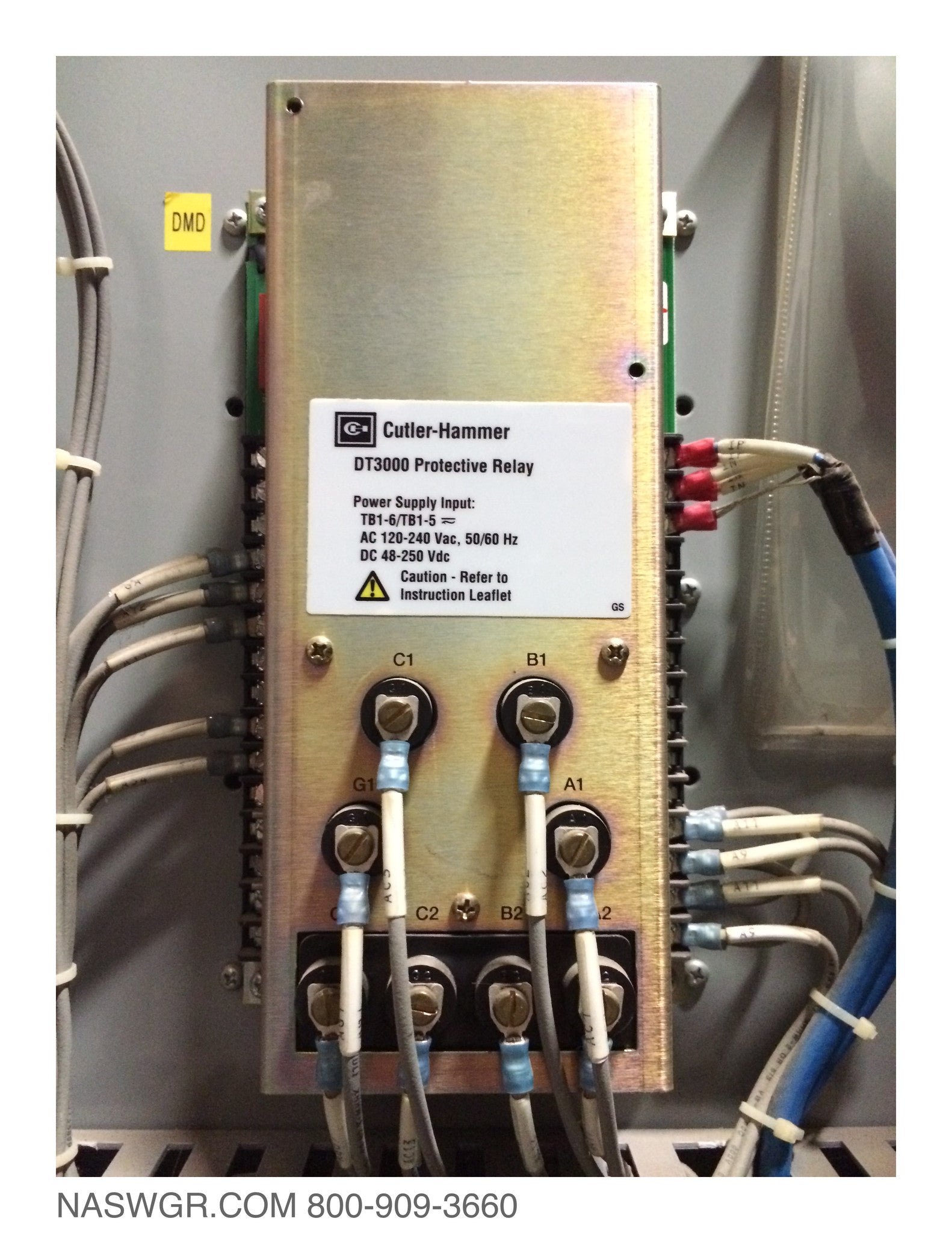

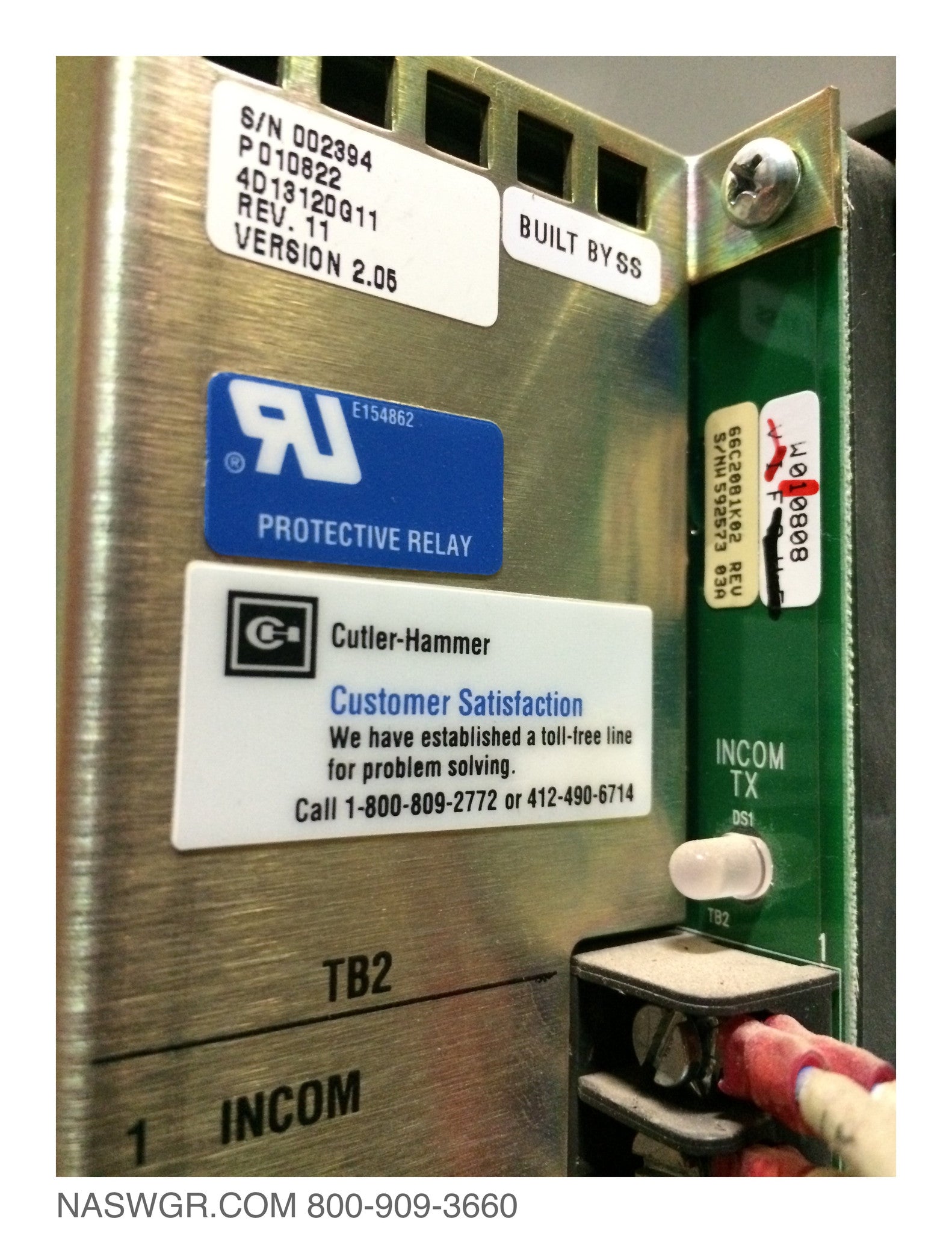

Cutler-Hammer Digitrip 3000 ~ DT3000 Protective Relay
4D13120G11 ~ (NASPG22707) Top Compartment (Sold Removed)

Cutler-Hammer MP-3000 (NASPG22709) Lower Compartment
Style: 66D2032G01

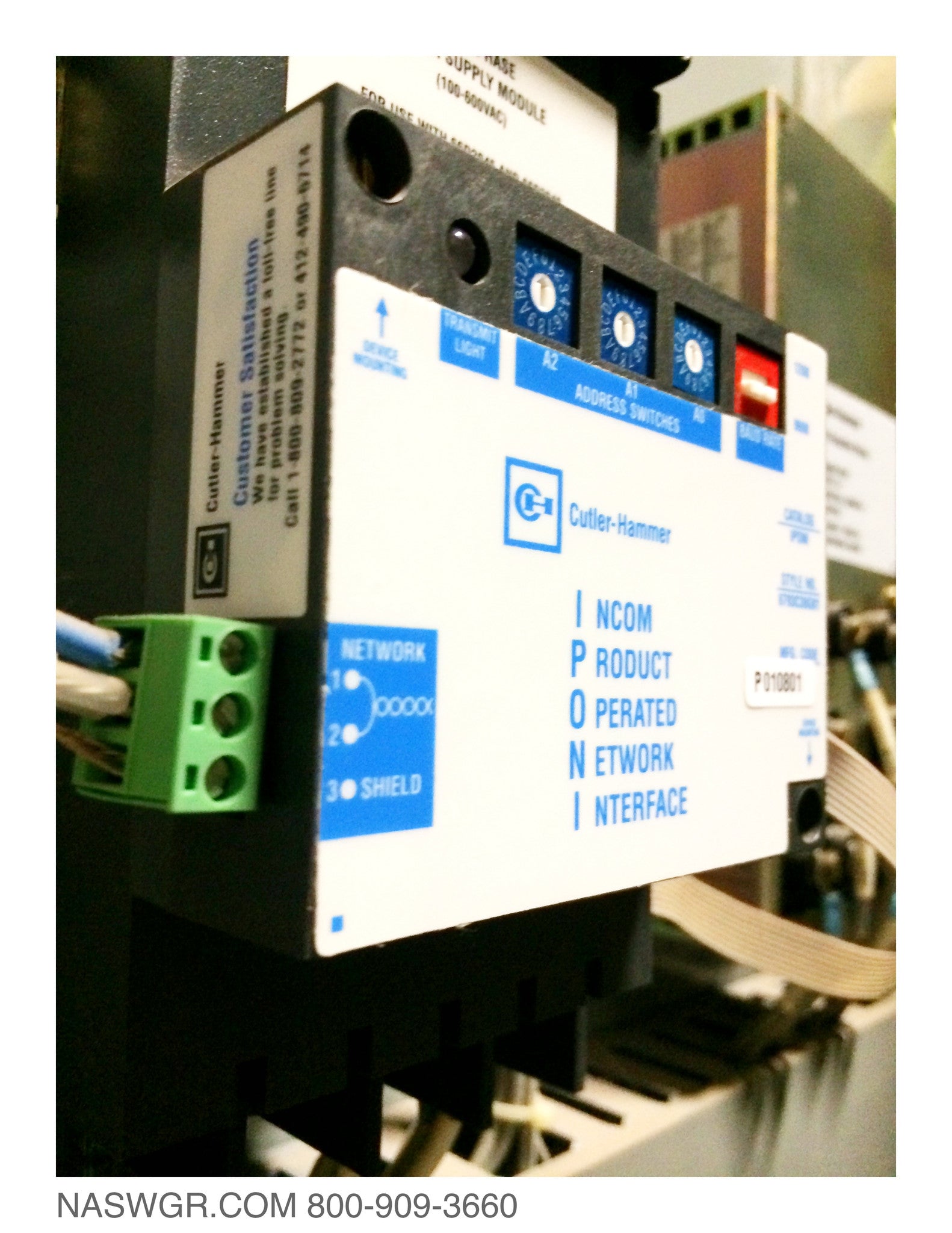

IPONI ~ INCOM PRODUCT OPERATED NETWORK INTERFACE
Style: 8793C36G01

Cutler-Hammer IQ DP-4000 (**NASPG22708 Sold 2/6/2015**/ NASPG22710- available) Top and Lower Compartment
Style: 66D2040G03

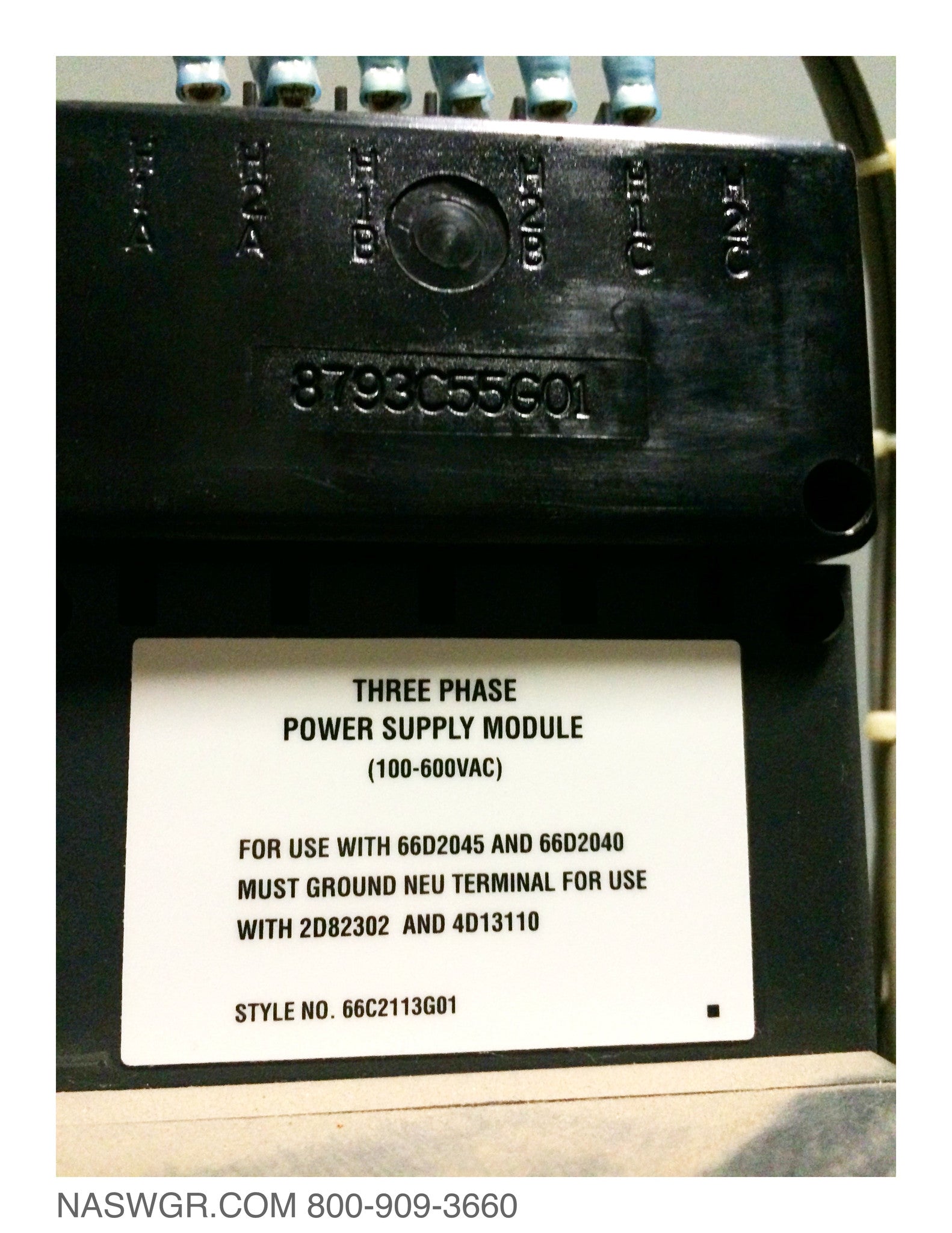

Cutler-Hammer Three Phase Power Supply Module (100-600vAC)
For Use with PN: 66D2045 ~ 66D2040
Ground Neutral with 2D82302 ~ 4D13110
Style: 8793C55G01
IPONI Style: 8793C36G01

SNAS5744-1
With the following Components

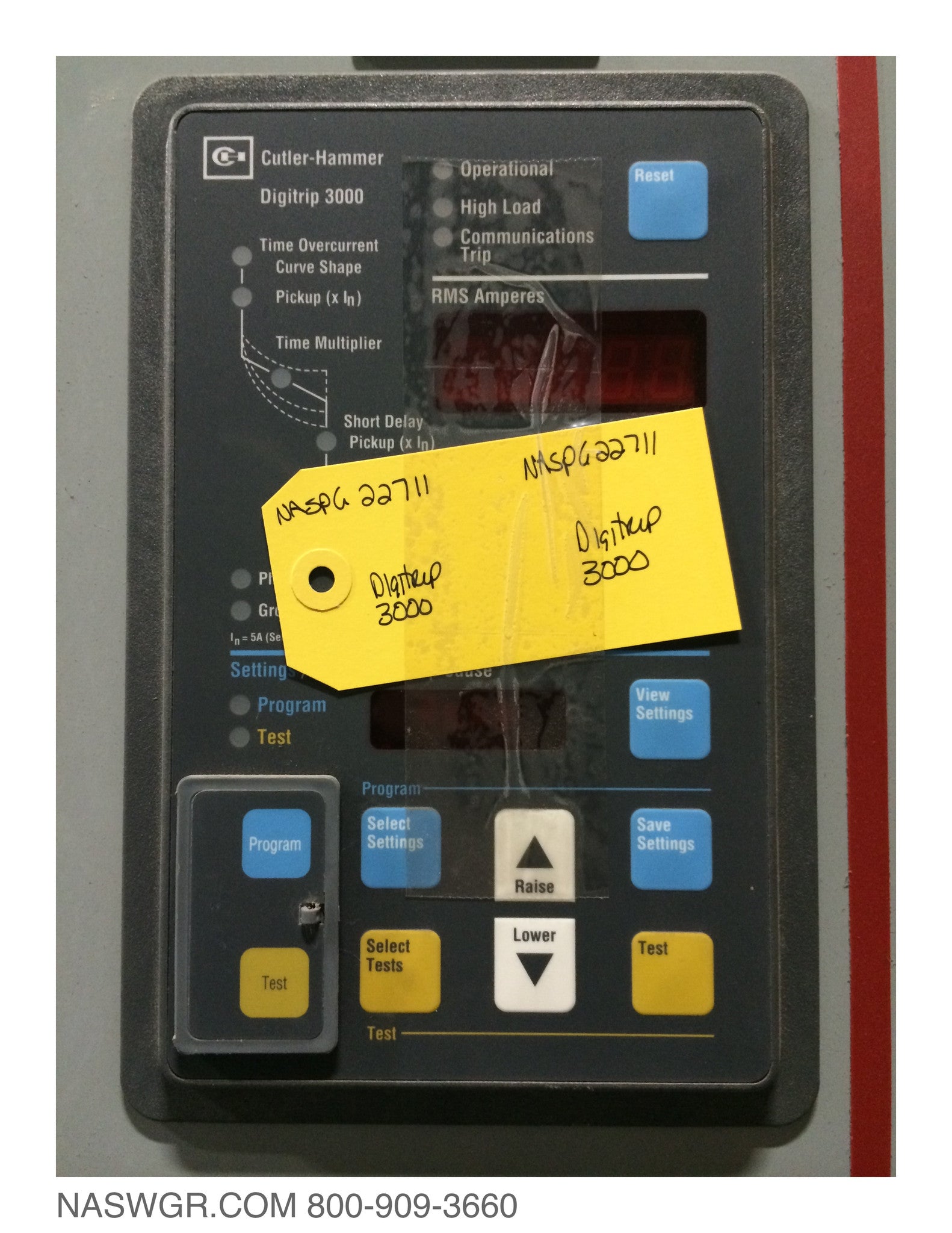

Cutler-Hammer Digitrip 3000 DT3000 (SNAS22711) Top Compartment
Style: 4D13120G11

Cutler-Hammer Digitrip 3000 DT3000 (SNAS22713) Lower Compartment
Style: 4D131230G21

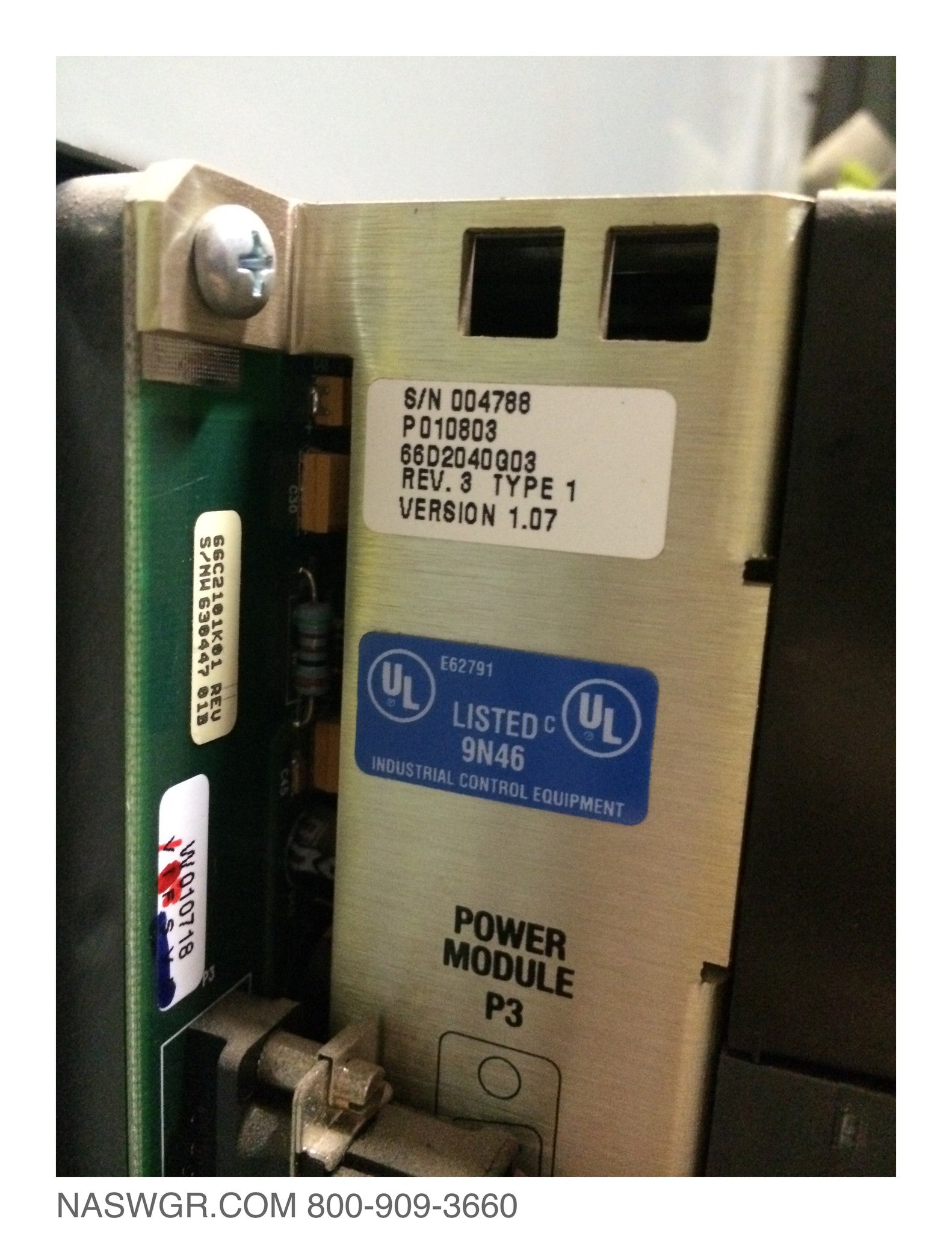

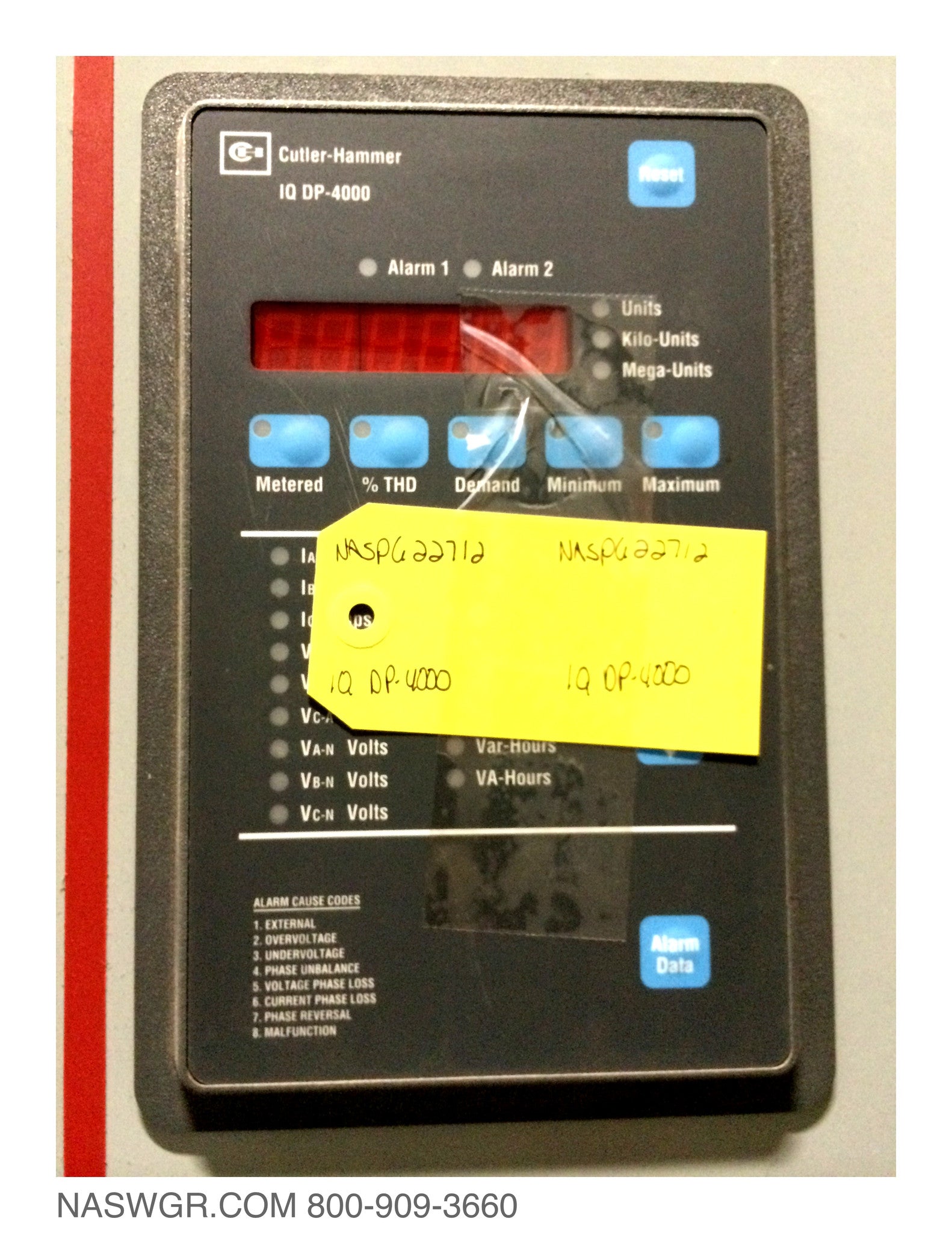

Cutler-Hammer IQ DP-4000 (NASPG22712/NASPG22714) Top and Lower Compartment
Style: 66D2040G03

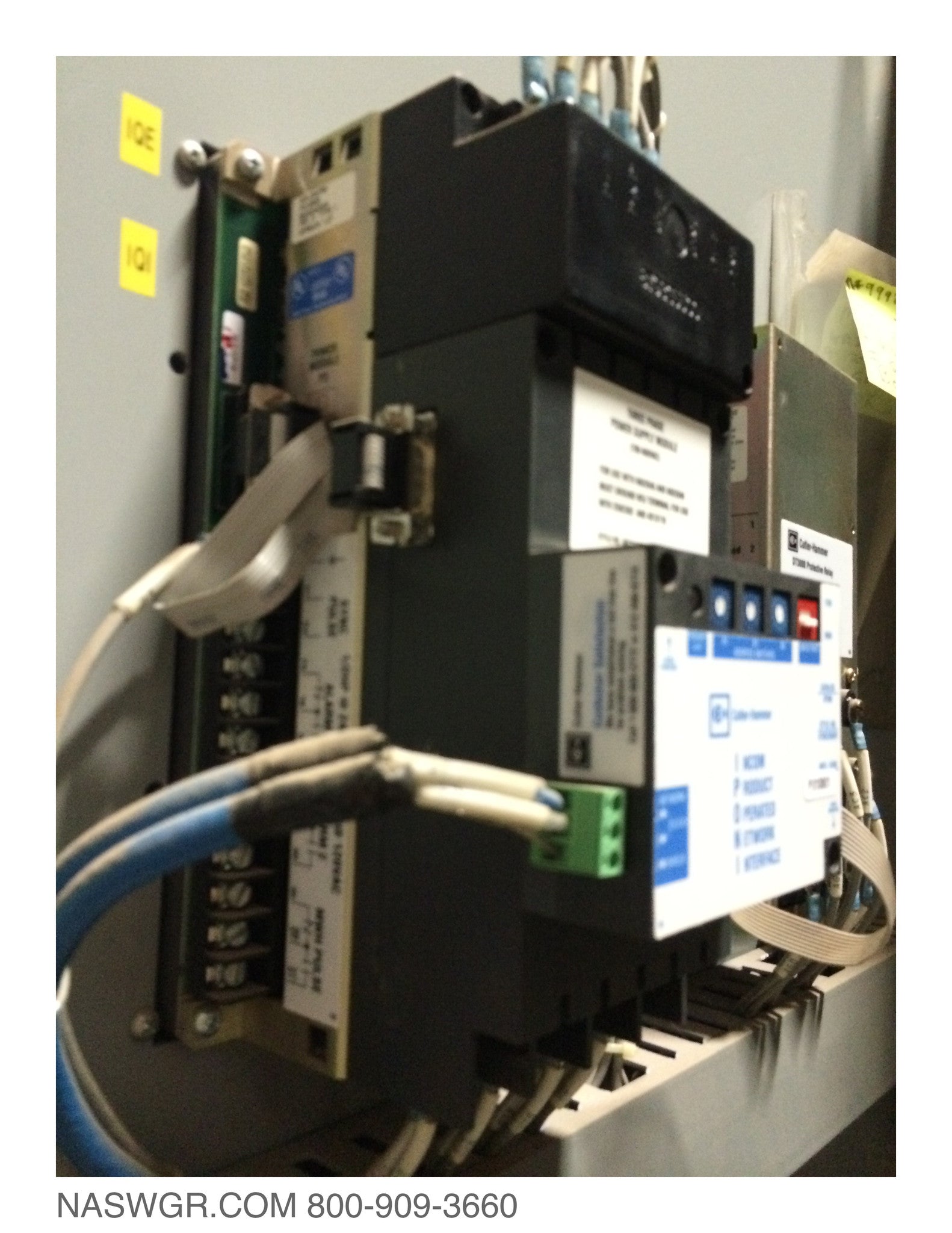

Cutler-Hammer Three Phase Power Supply Module (100-600vAC)
For Use with PN: 66D2045 ~ 66D2040
Ground Neutral with 2D82302 ~ 4D13110
PN: 8793C55G01
Style: 66C2113G01

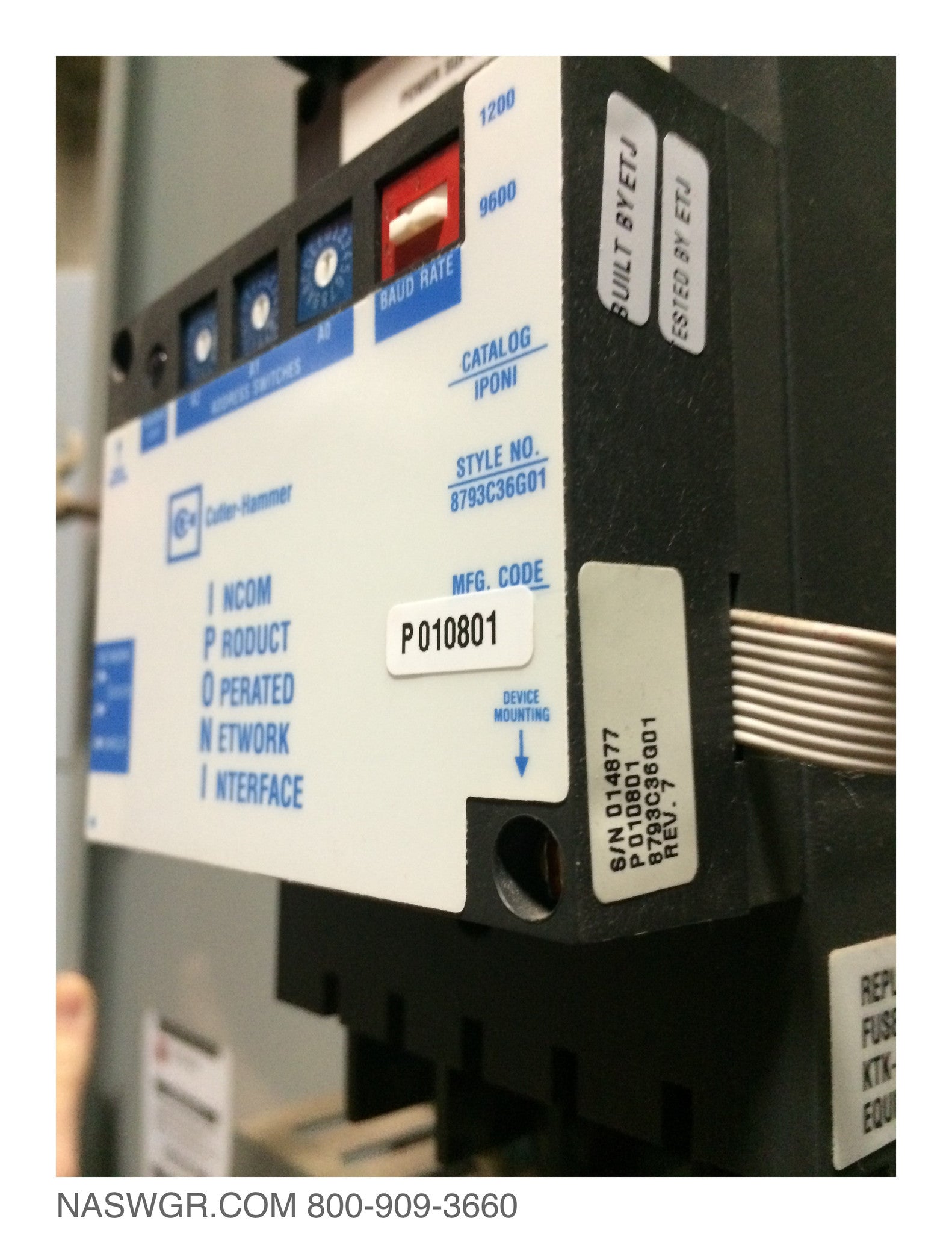

IPONI Style: 8793C36G01

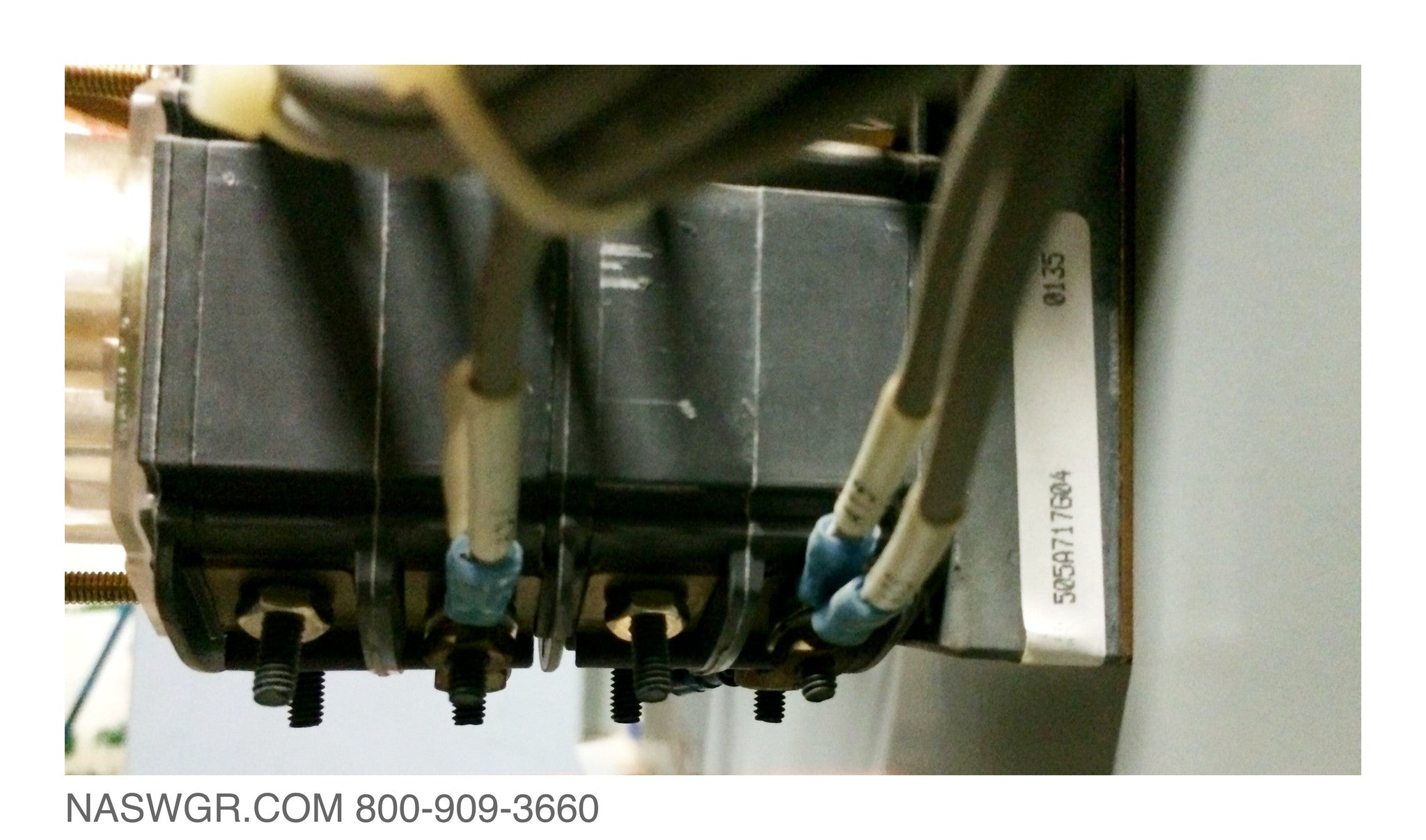

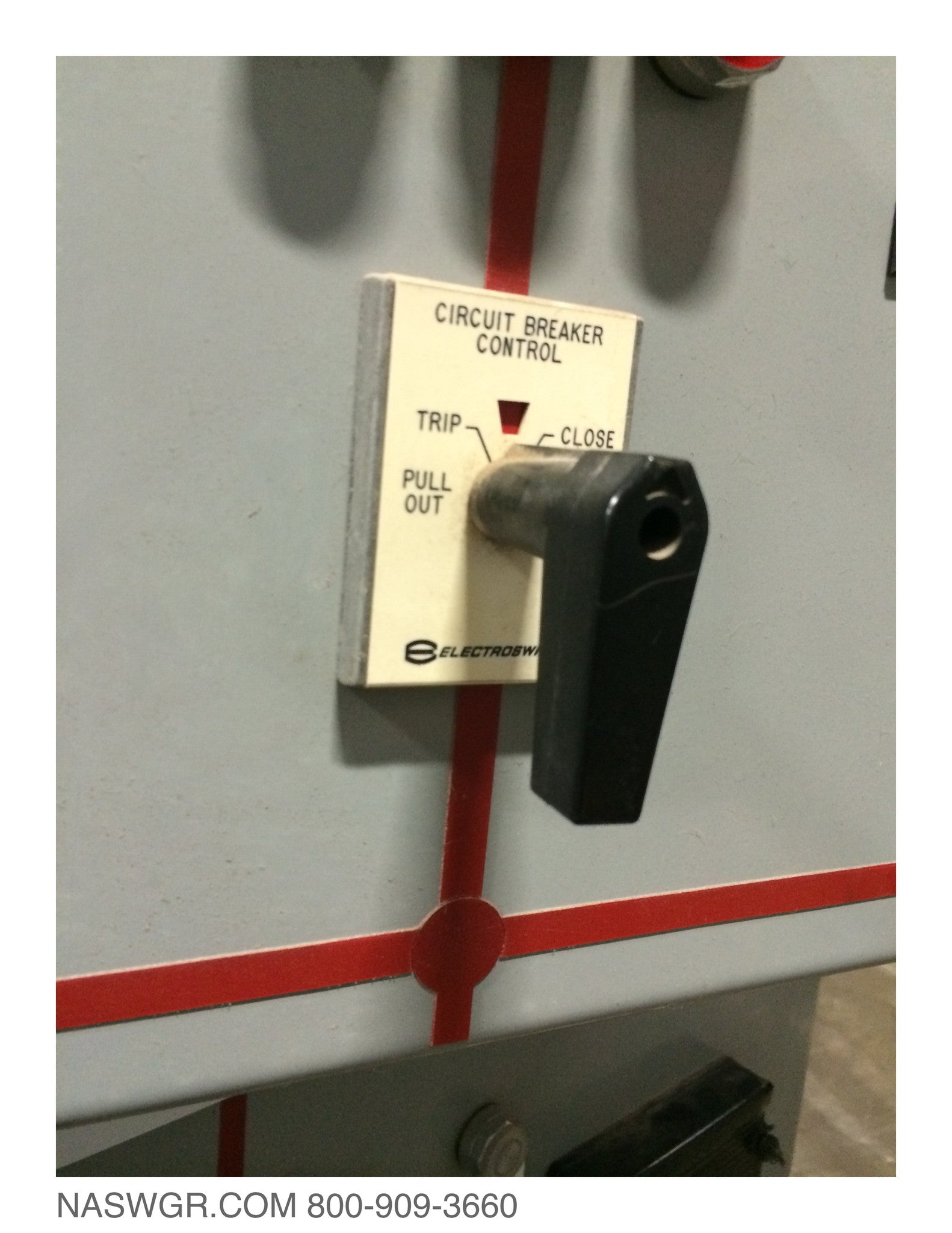

Electroswitch 505A717G04

SNAS5744-2
Top Cell Compartment

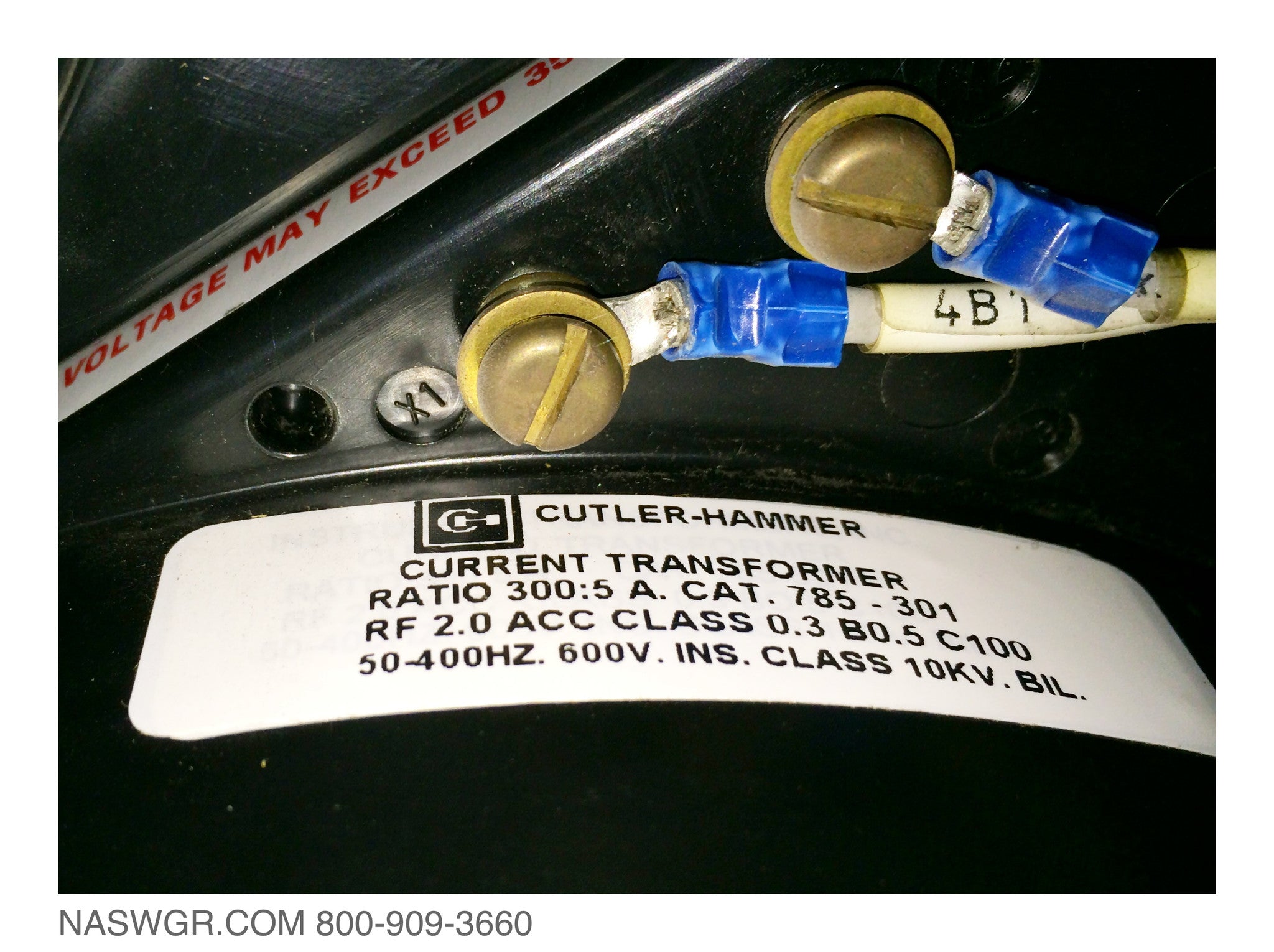

Cutler-Hammer 789301 Current Transformer 300:5 Ratio
Back of Gear

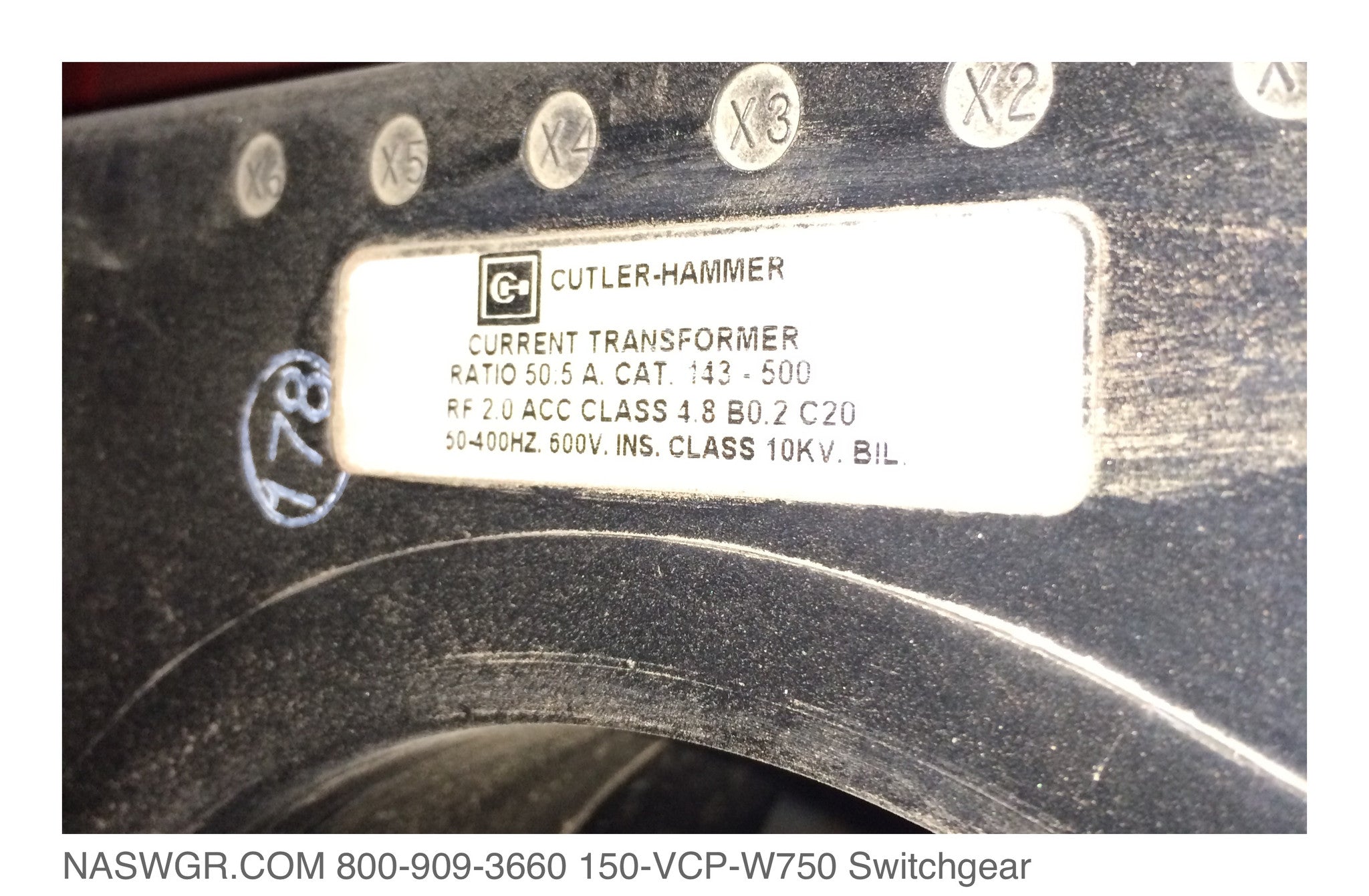

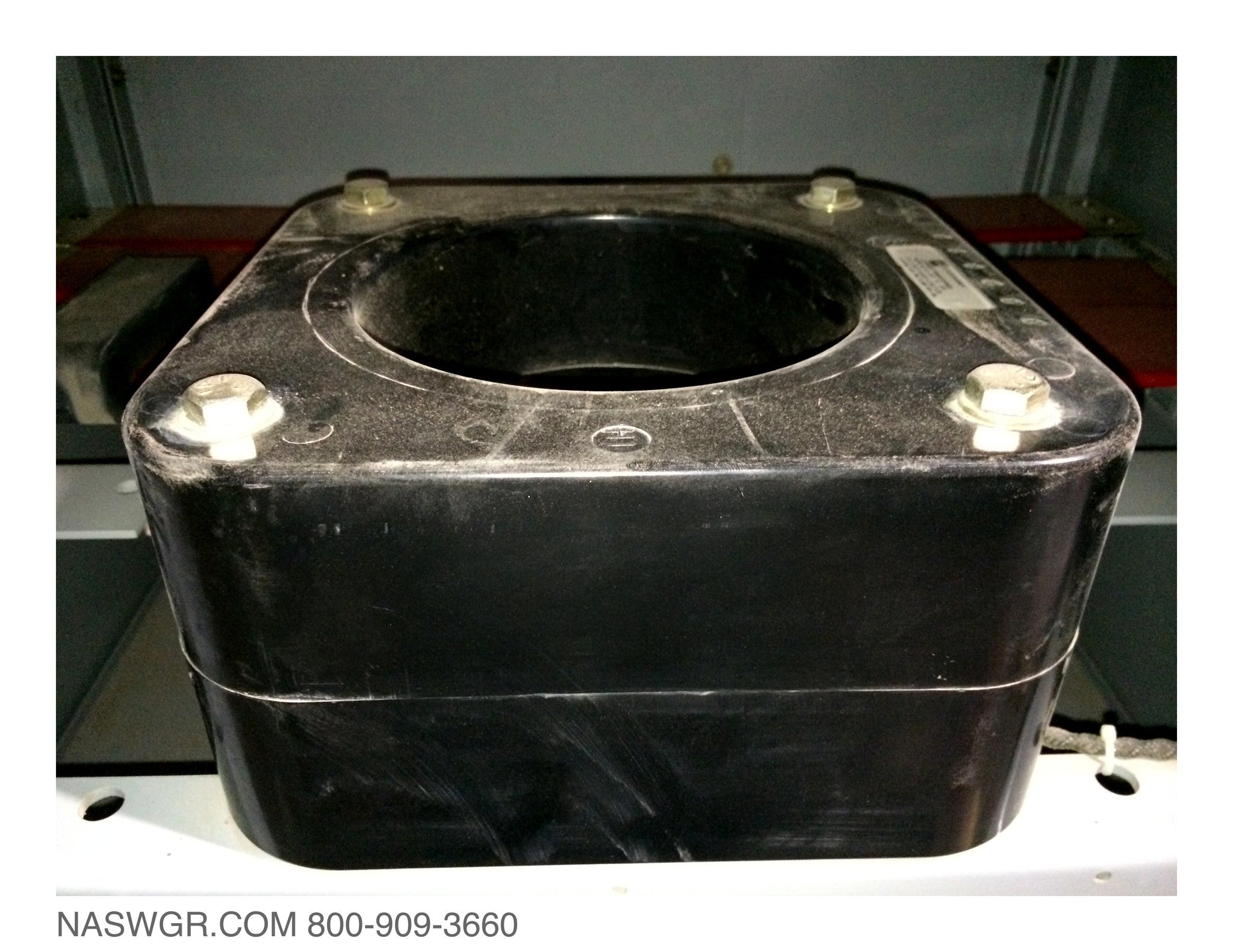

Cutler-Hammer 143-500 50:5 Ratio Current Transformer

Bottom Cell Compartment

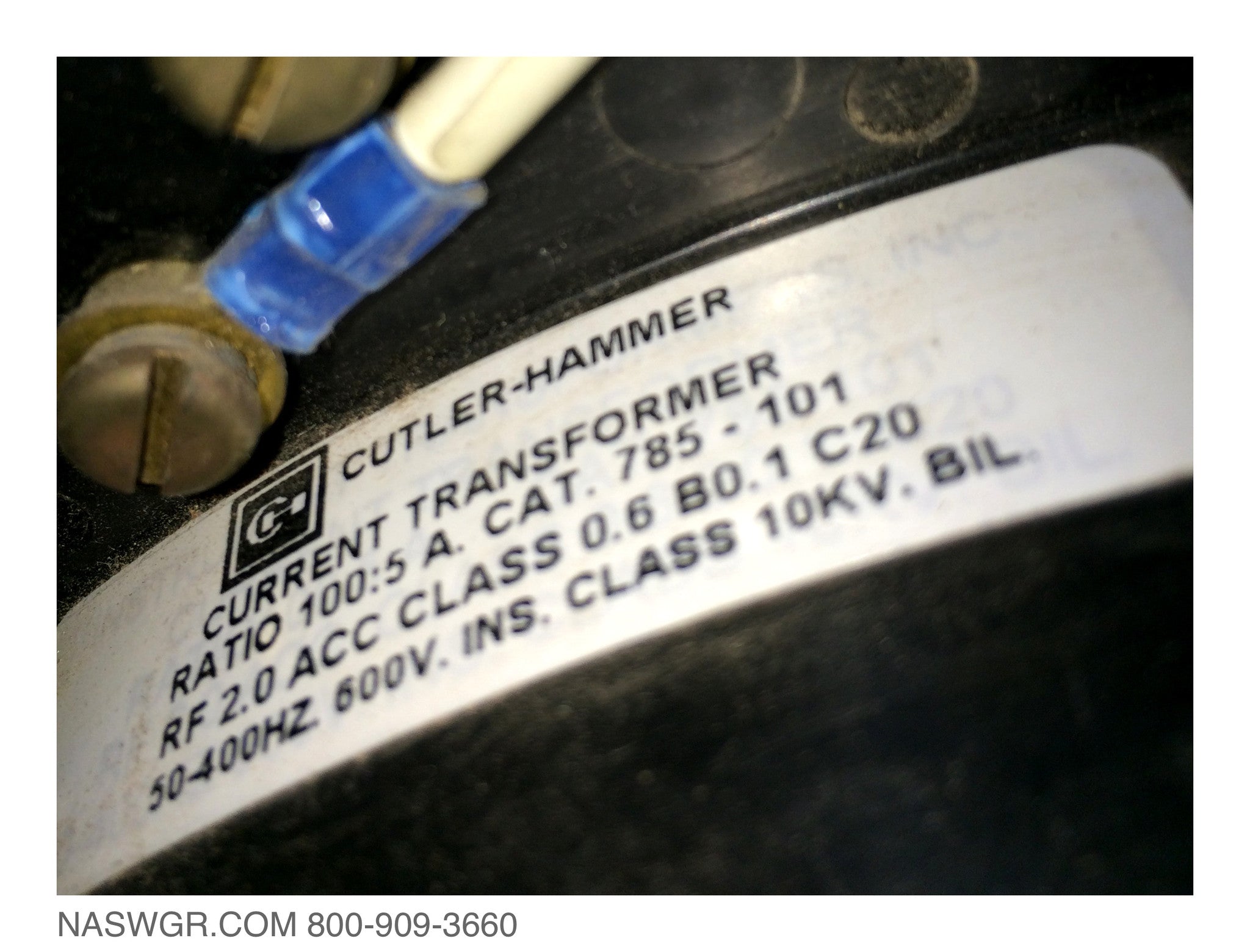

Cutler-Hammer 785-101 Current Transformer 100:5 Ratio
Back of Gear
Cutler-Hammer 143-500 50:5 Ratio Current Transformer

SNAS5744-1
Top Cell Compartment
Cutler-Hammer 785-101 Current Transformer 100:5 Ratio
Back of Gear
Cutler-Hammer 143-500 50:5 Ratio Current Transformer

Bottom Cell Compartment
Cutler Hammer 785-101 Current Transformer 100:5 Ratio
Back of Gear
Cutler-Hammer 143-500 50:5 Ratio Current Transformer

Please click on the Email For Quote button to request the parts that are required.

Standard lead time (1-3) days prior to shipping. If item is needed sooner please call or email.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725
SNAS5744-1/2 SEANS AREA SZ
