Square D Model 6 Size 5 Combination MCC ~ 8536SG01H20S

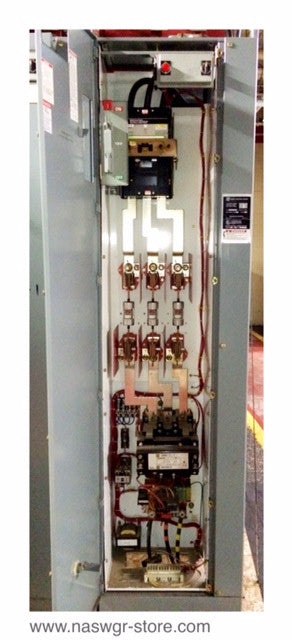

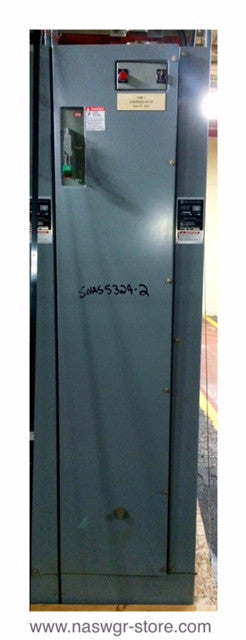

Square D Model 6 Size 5 Breaker Style Combination Bucket

Model 6 Control Center
Type 1 Enclosure
F.O. NO. 13053986-005.001   Unit LOC 2A

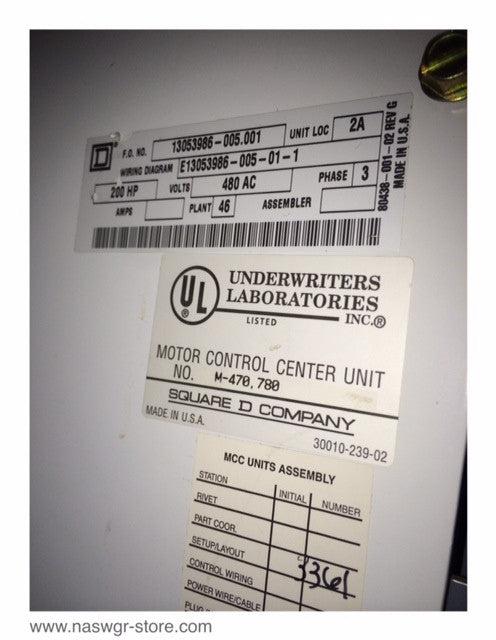

Wiring Diagram: E13053986-005-01-1200 HP
480 VAC
3 Phase

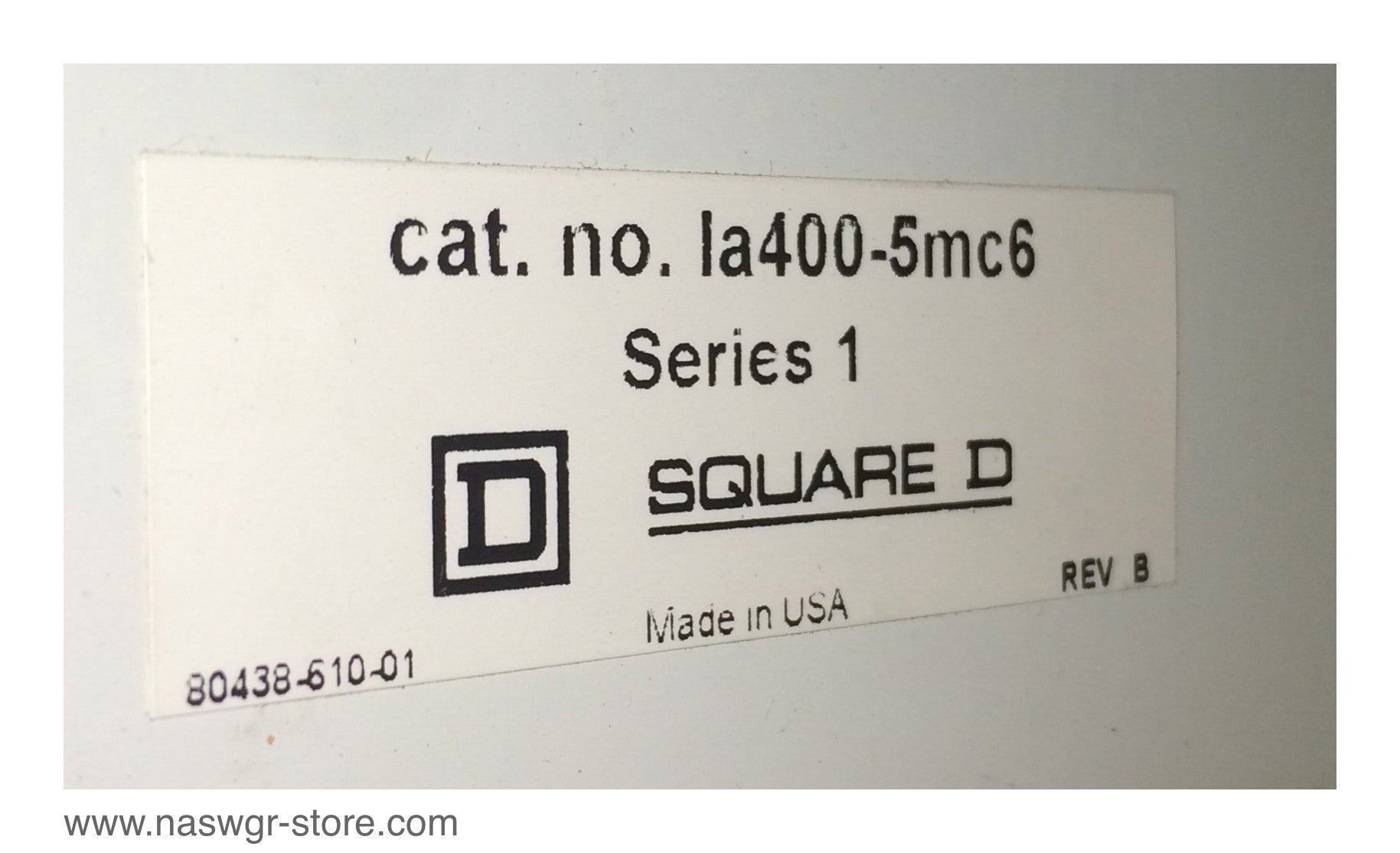

LAL400-5mc6  Series 1

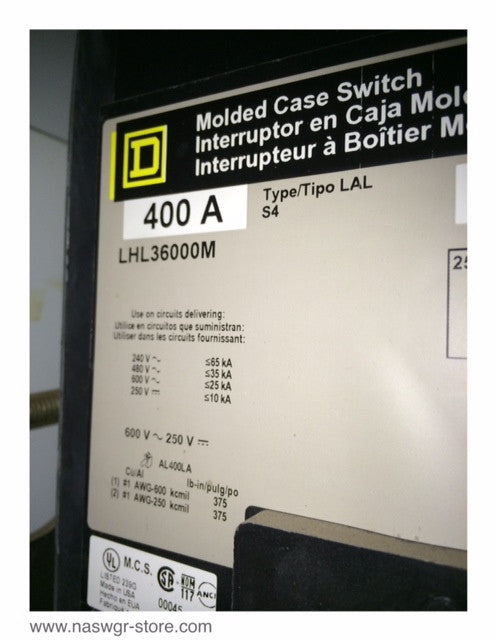

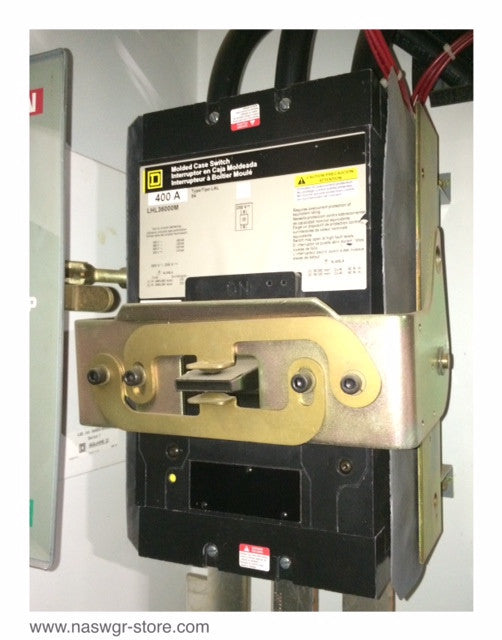

Square D LHL36000M Circuit Breaker
PN: LHL36000M
400 Amp
3 Pole
Type: LAL
240/480/600 Volt Rated

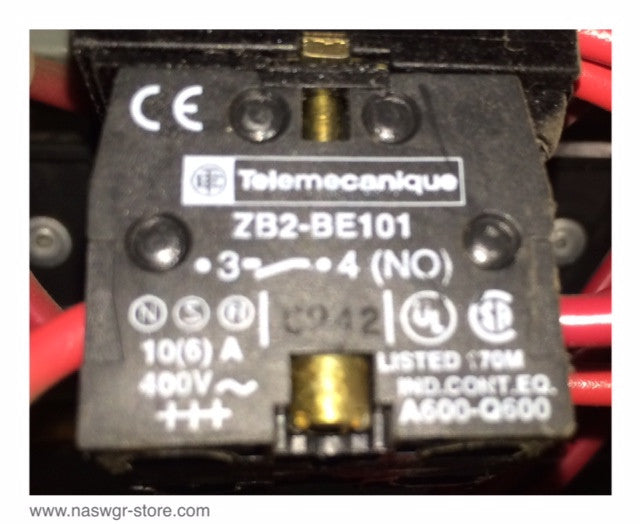

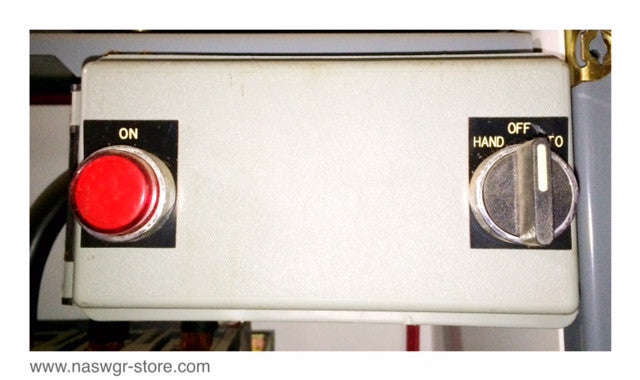

Indicating Light
Telemecanique
PN: ZB2-BE101

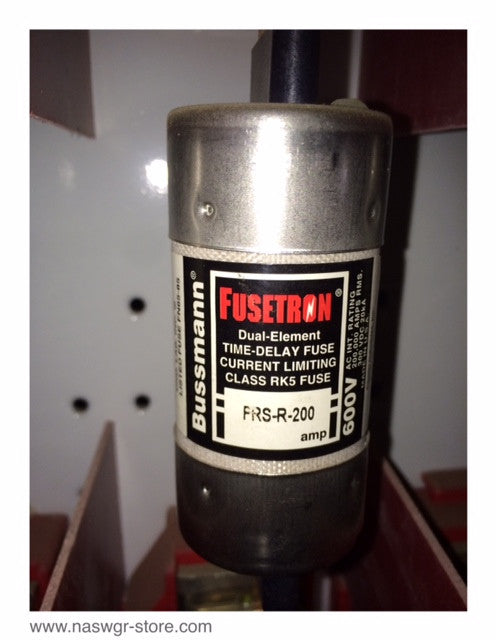

Fusetron Fuses
PN: FRS-R-200 or FRS-R-225
200 Amp
600 V

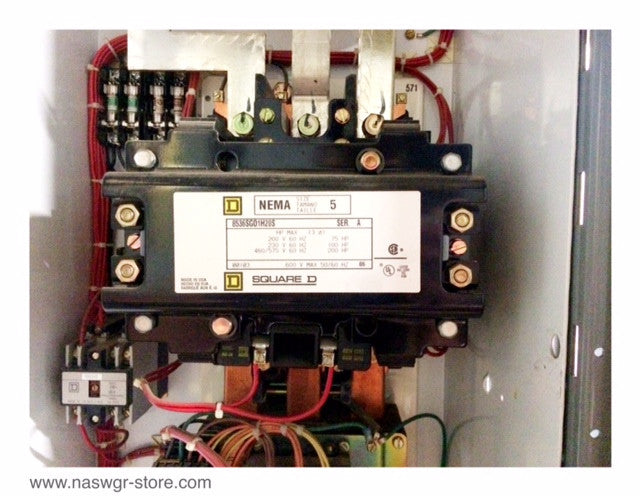

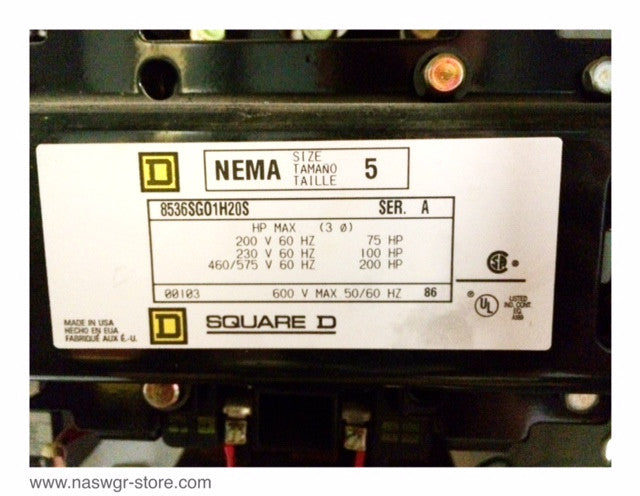

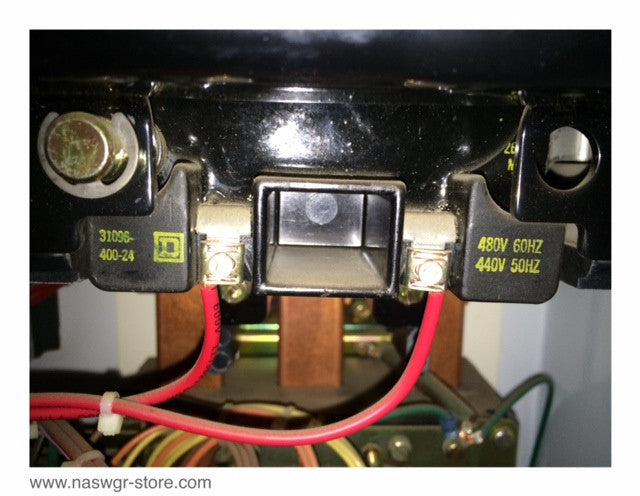

Square D Size 5 Contactor
PN: 8536SG01H20S
Series A
Coil: 31096-400-24
480V  60 Hz.
440V  50 Hz.600 V Max. 50/60 Hz.

Square D Type X relay
Relay/ Relevador/Relais
Max. P. : 8 N.C. / N.F. - 12 TOT.

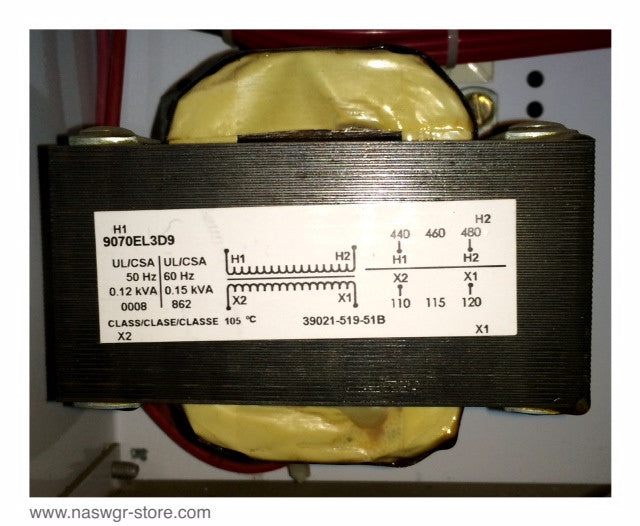

Square D Transformer
PN: 9070EL3D9
0.15 KVA  60Hz.
0.12 KVA  50 Hz.
39021-519-51B

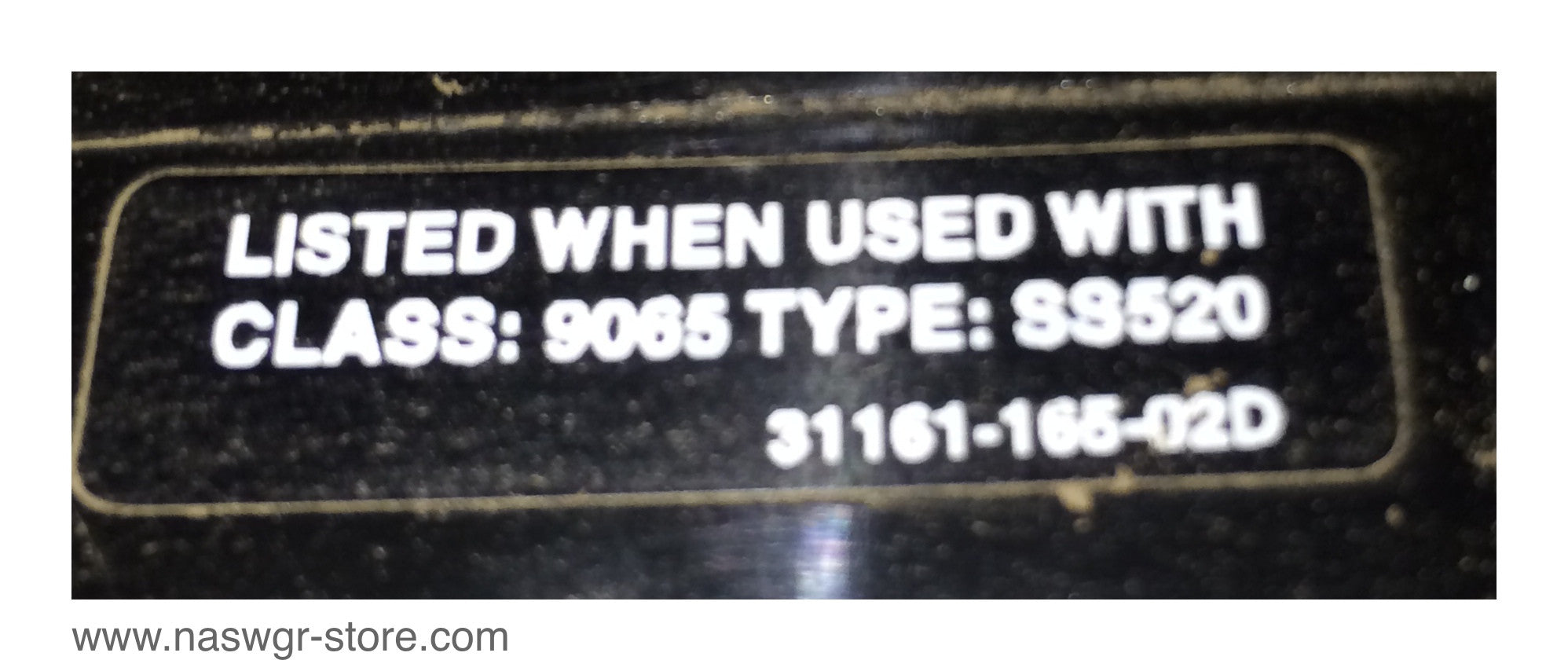

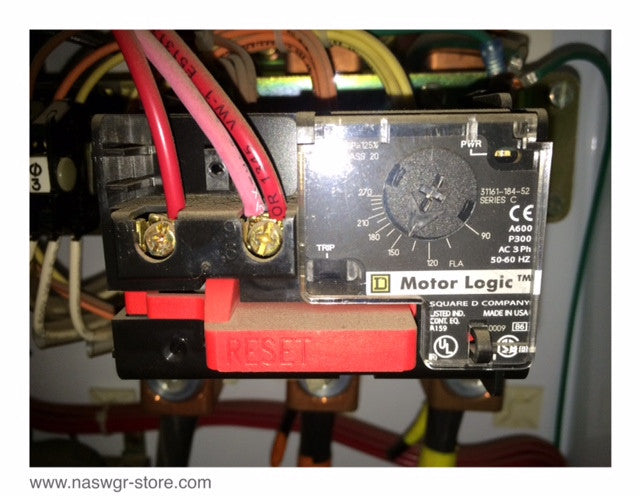

Square D Motor Logic
Class 20Trip= 125%
Series C
Type: SS520
31161-165-02D

Dimensions of Bucket
Length: 70"
Width: 14"
Depth: 9"
Includes door, shelf and hardware.

Item Must ship via freight.

Each Square D Model 6 Size 5 Combination Bucket is Cleaned, Tested with Report and Carries our One Year Warranty.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline  216-570-2725
