RMTD-2254CE

NAS has the following available.

NASMC3350 in B-Section

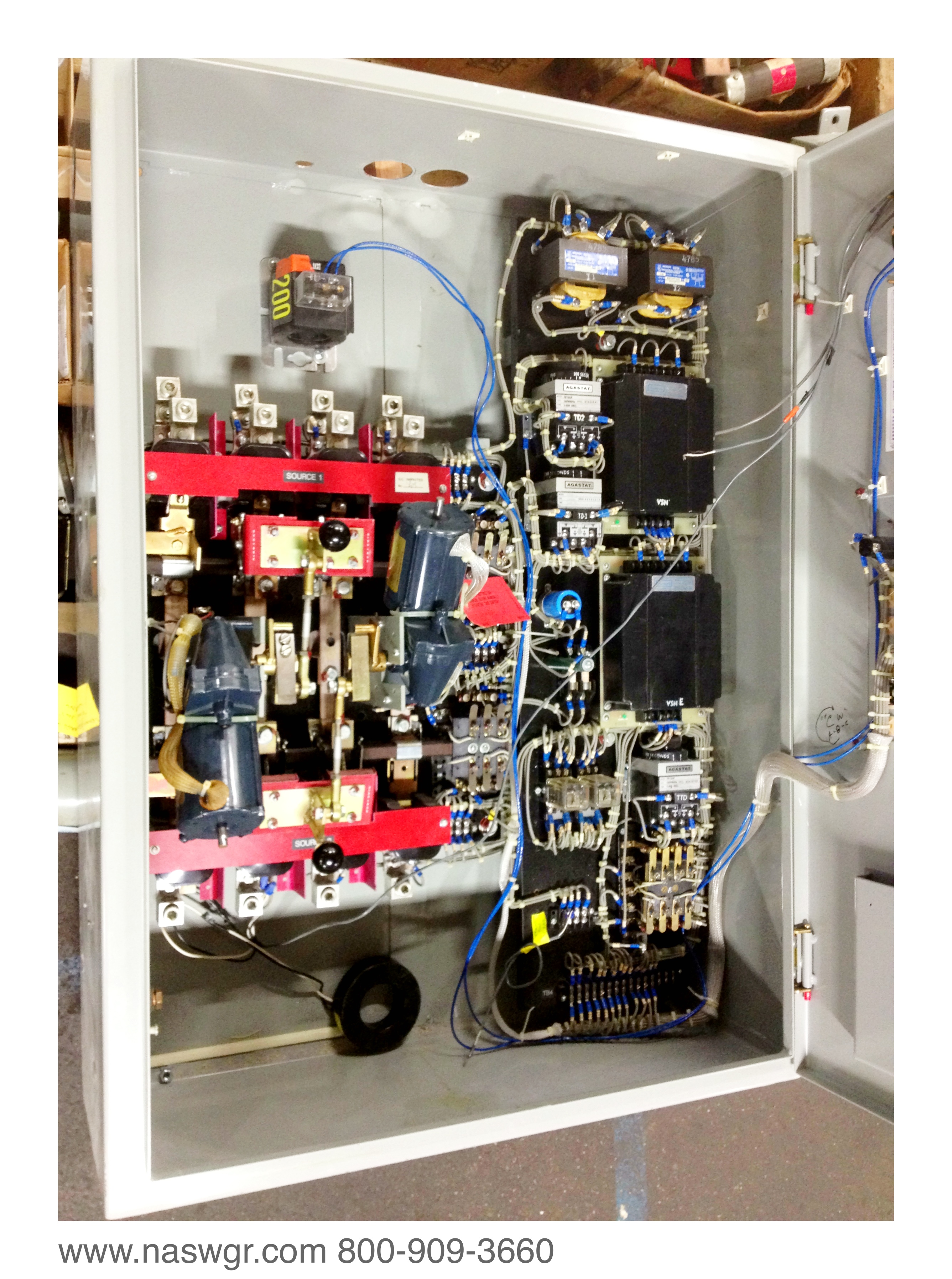

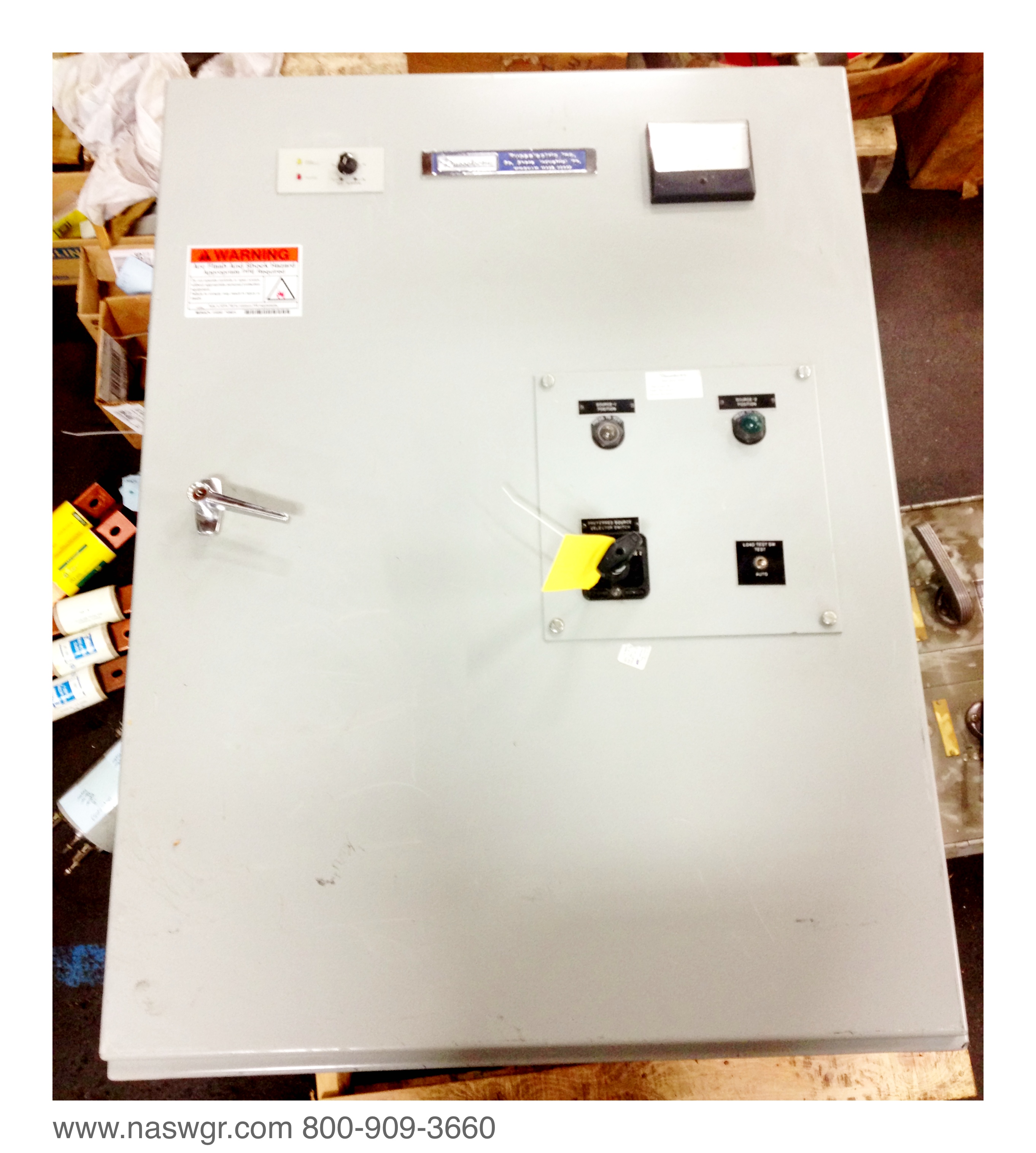

(1) Russelectric 225 amp Automatic Transfer Switch (MINT)
225 amp
277/480 volt
60 hertz
3 Phase 4 Wire

Wth the following assecories

Von Weise Gear Motor Model # , V01060AB33 ,
1.5 amps , 115vAC , 1/10 Horse Power , Single Phase , INT. DUTY , 70:1 Ratio ,

Schlumberger 92350-001 200:5A Current Transformer , Type: R6SA ,

Micron Industrial Control Transformer ,
.100kVA
Primary Voltage- 208/240/480
Secondary Voltage- 120
Catalog# , CX100MPU15 ,

Agastat Relays
(1) , 7012AK Time 1-300 seconds 120 volt 60 hertz ,
(2) , 7022AK Time 1-300 seconds 120 volt 60 hertz ,

Neutral Current Transformer- WICC LTD. PN: A200L24 200:5 ratio

Time Mark Corporation Current Monitor
1-5 amps
Contacts 15 amp at 150vAC
Supply- 24vDC
Time Mark Model 275

Simpson Electric Model 1365 Ammeter

Electroswitch Series 24 PN: 24205
5 stage selector switch

This 225 amp RMTD-2254CE motor operated ATS switch is available cleaned, tested with report and backed by our 1 year warranty. It is in MINT condition!

All drawings and data for switch are included.

800-909-3660 sales@naswgr.com www.naswgr.com
