Allis-Chalmers LA-600A Air Circuit Breaker Manually Operated
Contact for Quote: 800-909-3660 | sales@naswgr.com
Allis-Chalmers LA-600A Air Circuit Breaker Manual Operation
Type: Power Circuit Breaker
Model: LA-600A
Frame Size: 600 Amp
Frequency: 60 HZ
Ampacity: 600Amp Max
Voltage: 600 VAC

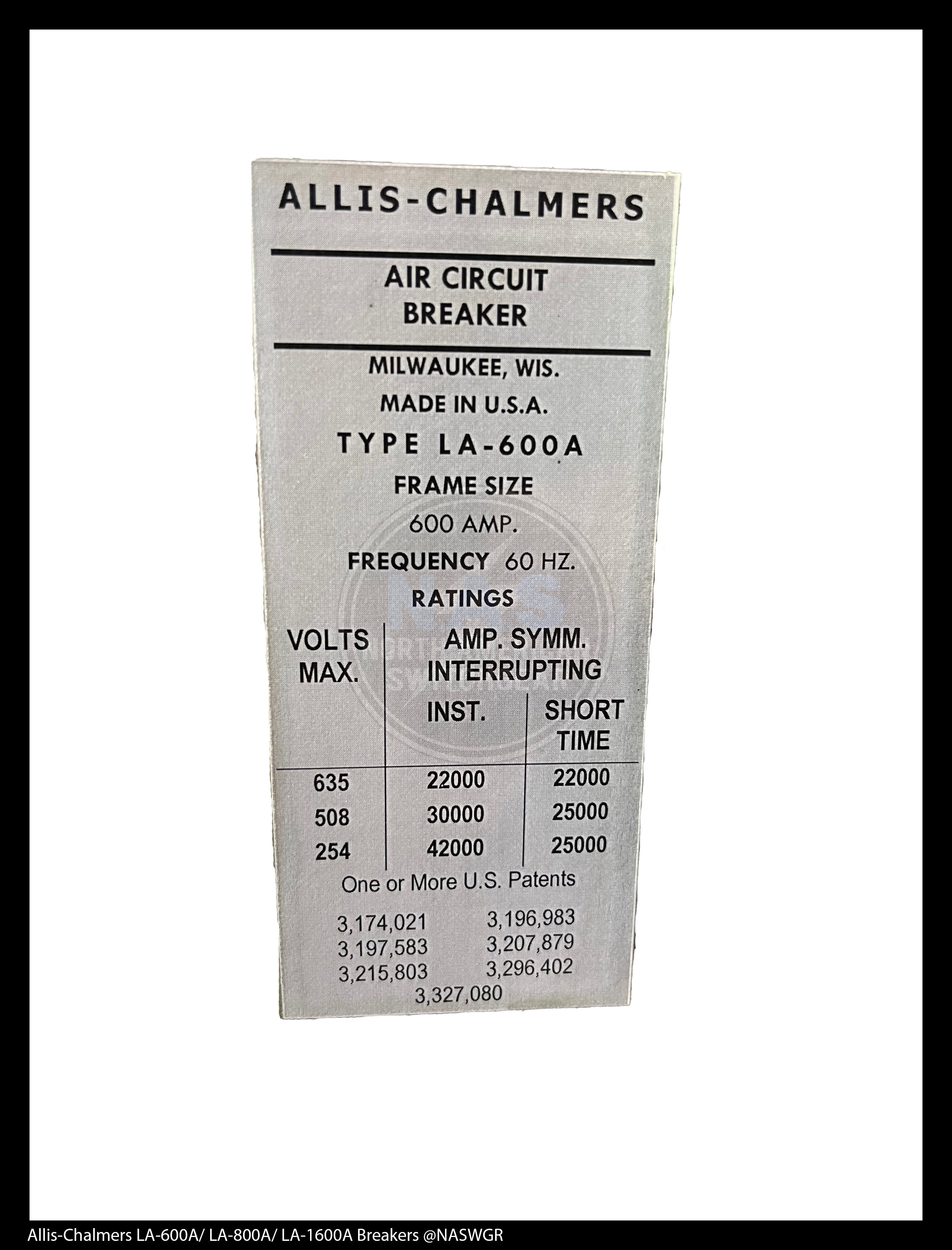

| Ratings: | ||
| Volts Max | AMP. SYMM. | Interrupting |
| INST. | Short Time | |
| 635 | 22,000 | 22,000 |
| 508 | 30,000 | 25,000 |
| 254 | 42,000 | 25,000 |
Additional Accessories:
Shunt Trip Group LA-600A/ LA-800A/ LA-1600A:
| Description | Part Number |
| Solenoid 48 VDC & 120 VAC | 18-724-513-001 |
| Solenoid 240 VDC & 125 VAC | 18-724-153-002 |
| Solenoid 24 VDC | 18-724-513-006 |
| Solenoid 250 VDC | 18-724-513-004 |
Motor Group LA-600A/ LA-800A/ LA-1600A:
| Description | Part Number |
| Motor 120 V.A.C. and 125 V.D.C | 71-340-297-001 |
| Motor 240 V.A.C. and 250 V.D.C | 71-340-297-002 |
| Motor 48 V.D.C | 71-340-297-005 |
Close Solenoid Group Incudes ANTI-PUMP "Y" Relay LA-600A/ LA-800A/ LA-1600A:
| Description | Part Number |
| Solenoid 48 VDC and 120 VAC | 18-724-513-001 |
| Solenoid 240 VDC and 125 VAC | 18-724-513-002 |
| Solenoid 250 VDC | 18-724-513-004 |
| Relay "Y" 120 VAC | 15-171-399-014 |
| Relay "Y" 240 VAC | 15-171-399-015 |
| Relay "Y" 125 VDC | 15-171-399-016 |
| Relay "Y" 250 VDC | 15-171-399-017 |
| Relay "Y" 48 VDC | 15-171-399-027 |
Alarm Switch Group, Bell Alarm LA-600A/ LA-800A/ LA-1600A:
| Description | Part Number |
| Solenoid 48 VDC | 18-724-497-005 |
| Solenoid 120 VAC | 18-724-497-001 |
| Solenoid 240 VAC | 18-724-497-003 |
| Solenoid 125 VDC | 18-724-497-002 |
| Solenoid 250 VDC | 18-724-497-004 |
Auxiliary Switch Group LA-600A/ LA-800A/ LA-1600A
Secondary Disconnect Group LA-600A/ LA-800A/ LA-1600A
Undervoltage Trip Group LA-600A/ LA-800A/ LA-1600A:
| Description | Part Number |
| 120 VAC Inst. Under-voltage | 18-391-885-801 |
| 240 VAC Inst. Under-voltage | 18-391-885-802 |
| 460 VAC Inst. Under-voltage | 18-391-885-803 |
| 120 VAC T.D. Inst. Under-voltage | 18-391-886-801 |
| 240 VAC T.D. Inst. Under-voltage | 18-391-886-802 |
| 460 VAC T.D. Inst. Under-voltage | 18-391-886-803 |
Static Trip Group LA-600A/ LA-800A/ LA-1600A:
| Description | Part Number |
| Type TI Static Trip | 18-468-194-501 |
| Type TS Static Trip | 18-468-194-502 |
| Type TSI Static Trip | 18-468-194-503 |
| Type TIG Static Trip | 18-468-194-504 |
| Type TSG Static Trip | 18-468-194-505 |
| Type TSIG Static Trip | 18-468-194-506 |
| Type TIG-T Static Trip | 18-468-194-507 |
| Type TSG-T Static Trip | 18-468-194-508 |
| Type TSIG-T Static Trip | 18-468-194-509 |

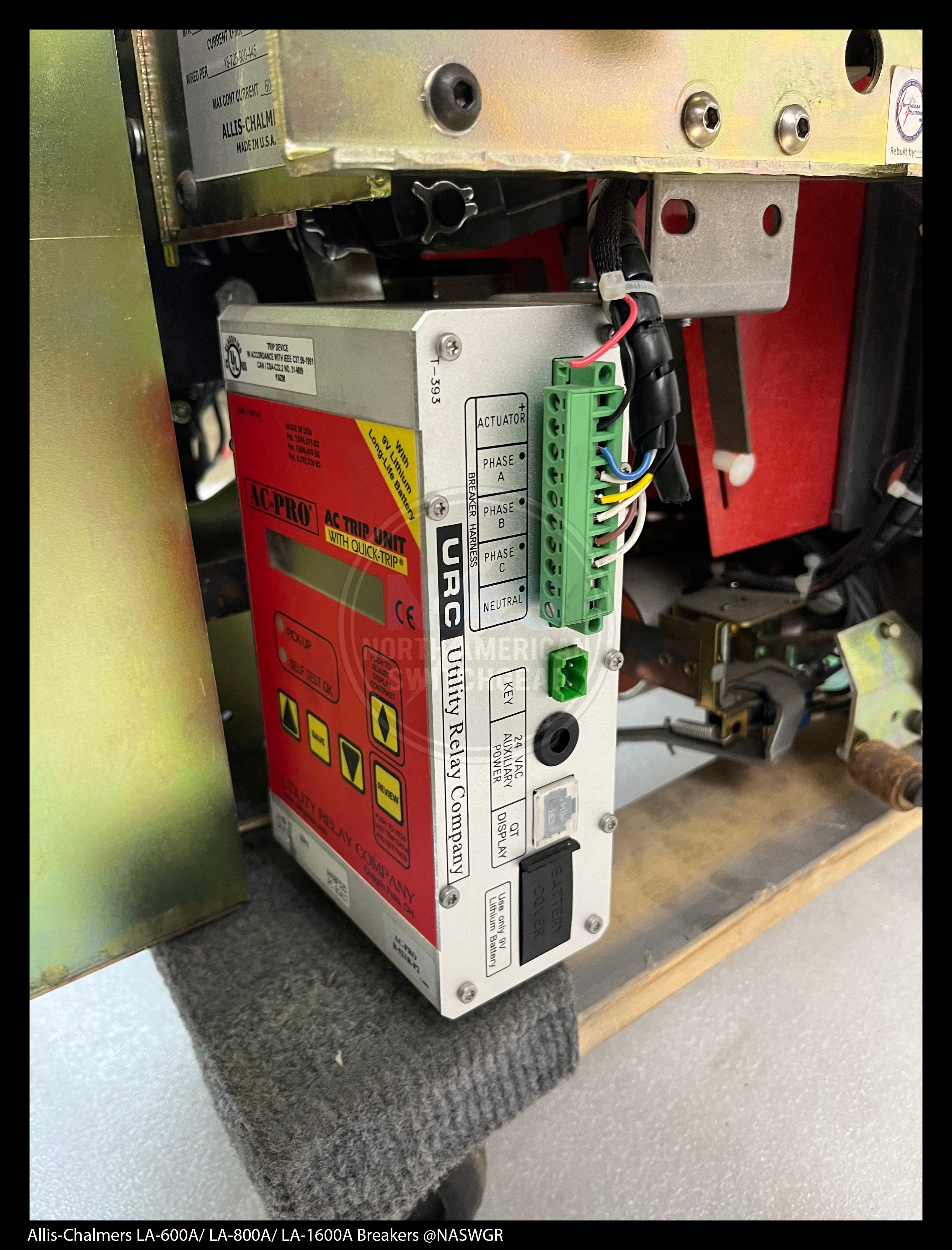

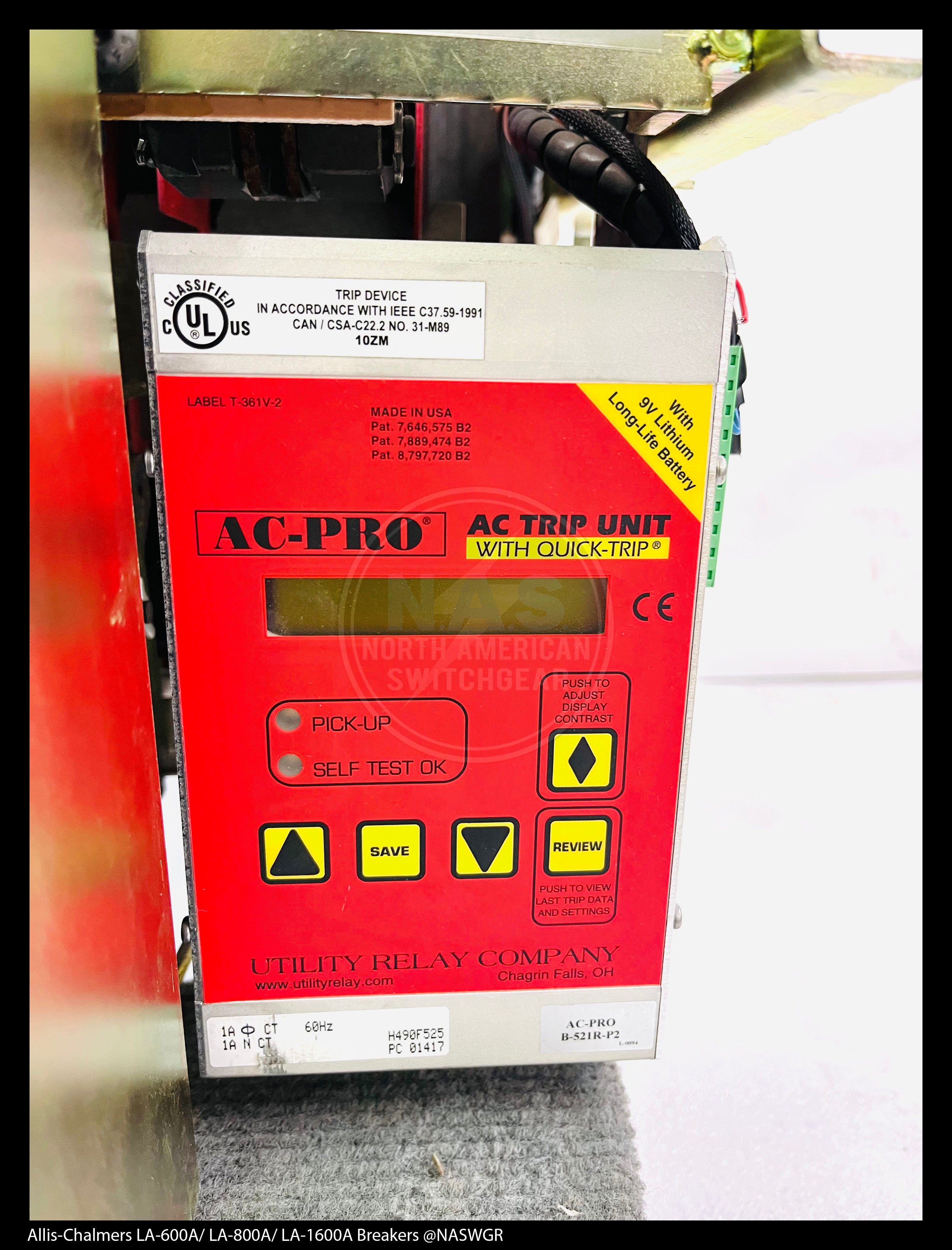

*Also Available with AC Pro Trip Units to Fit Your Application*

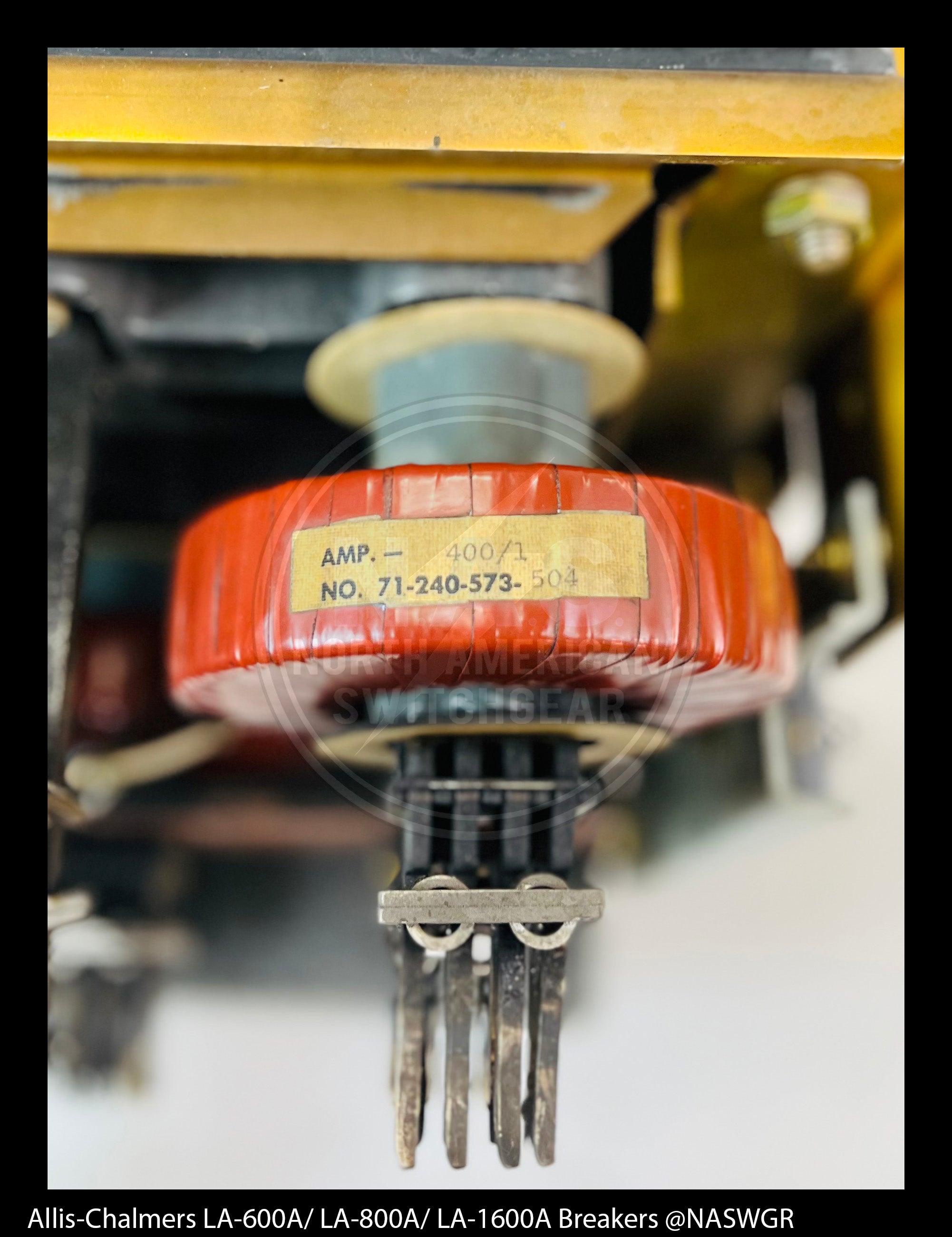

Tripping Current Transformer Group LA-600A/ LA-800A/ LA-1600A:
| Description | Part Number |
| Current Transformer 80/1 | 61-300-030-508 |
| Current Transformer 200/1 | 61-300-030-507 |
| Current Transformer 400/1 | 61-300-030-504 |
| Current Transformer 600/1 | 61-300-030-505 |
| Current Transformer 800/1 | 61-300-030-509 |
| Current Transformer 200/1 | 61-300-031-513 |
| Current Transformer 400/1 | 61-300-031-502 |
| Current Transformer 800/1 | 61-300-031-508 |
| Current Transformer 1600/1 | 61-300-031-505 |
Fuse Attachment Group LA-600A/ LA-800A/ LA-1600A:
| Description | Part Number |
| CL Fuse 800 Amp | 71-142-200-004 |
| CL Fuse 1000 Amp | 71-142-200-013 |
| CL Fuse 1200 Amp | 71-142-200-005 |
| CL Fuse 1600 Amp | 71-142-200-006 |
| CL Fuse 2000 Amp | 71-142-200-007 |
| CL Fuse 2500 Amp | 71-142-200-008 |
| CL Fuse 3000 Amp | 71-142-200-009 |
| CL Fuse 250 Amp | 71-142-200-001 |
| CL Fuse 400 Amp | 71-142-200-002 |
| CL Fuse 600 Amp | 71-142-200-003 |
| CL Fuse 800 Amp | 71-142-200-004 |
| CL Fuse 1000 Amp | 71-142-200-013 |
| CL Fuse 1200 Amp | 71-142-200-005 |
| CL Fuse 1600 Amp | 71-142-200-006 |
Anti-Single-Phase Device, Trigger Fuse Assembly
*Breaker Label/Style/Condition May Vary*

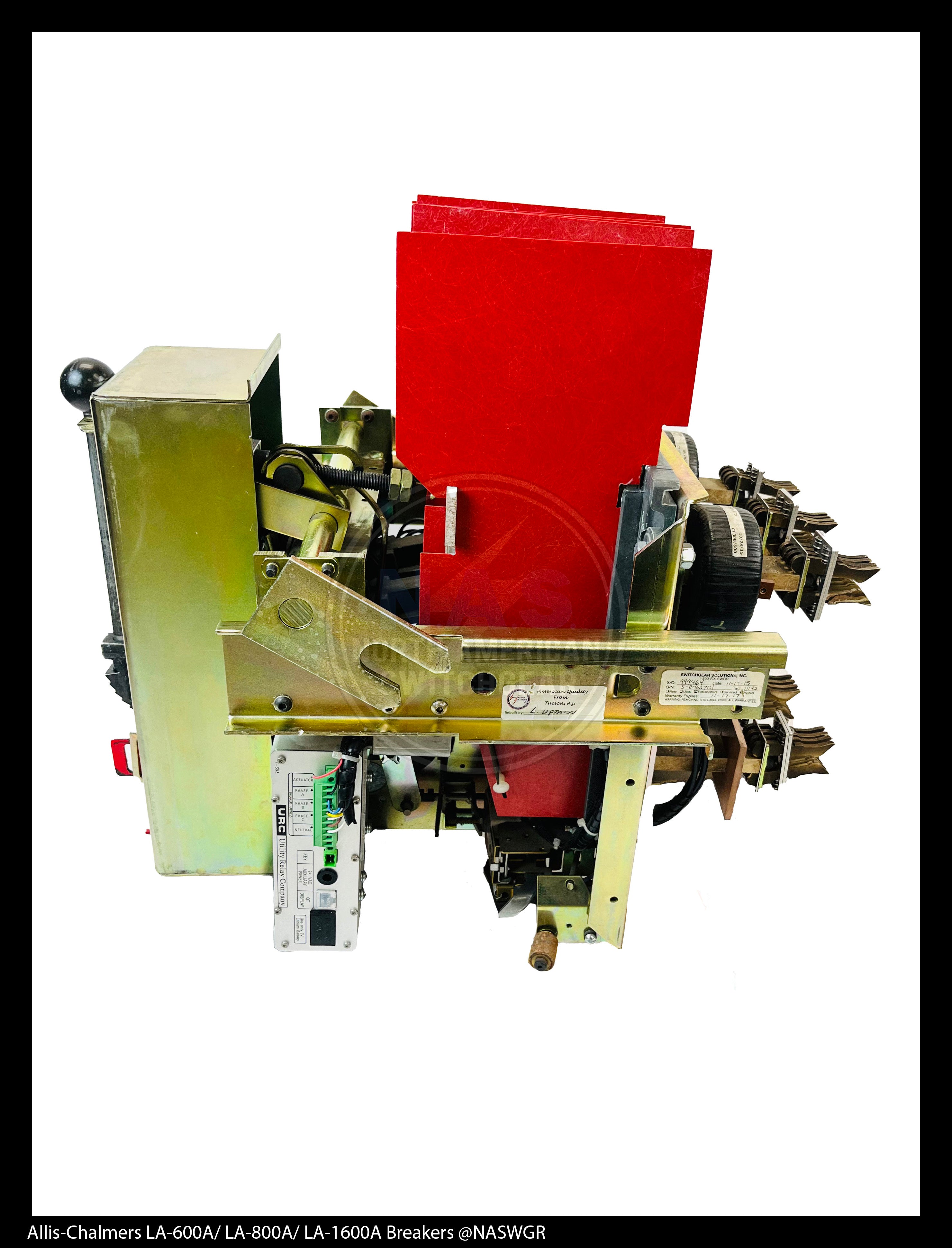

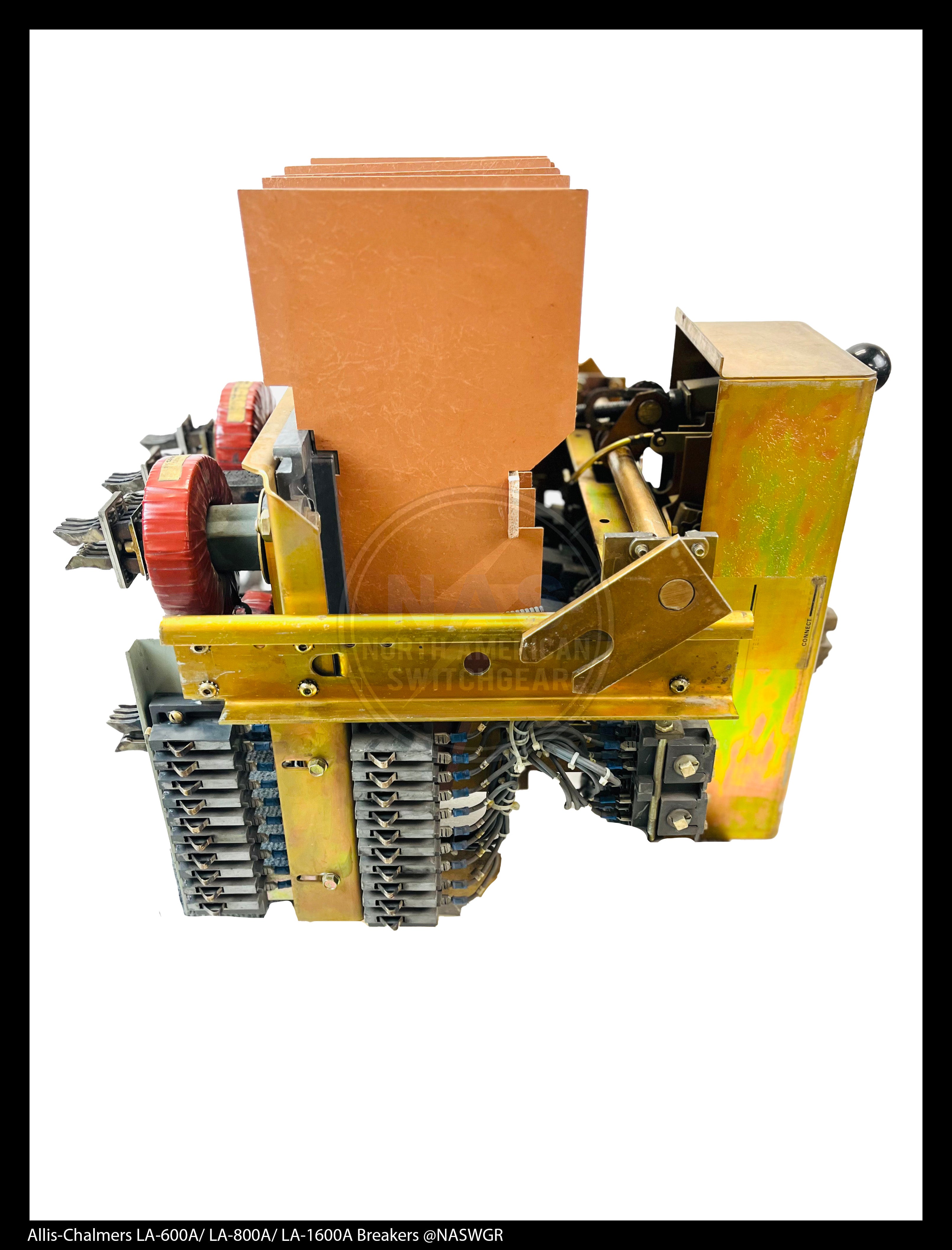

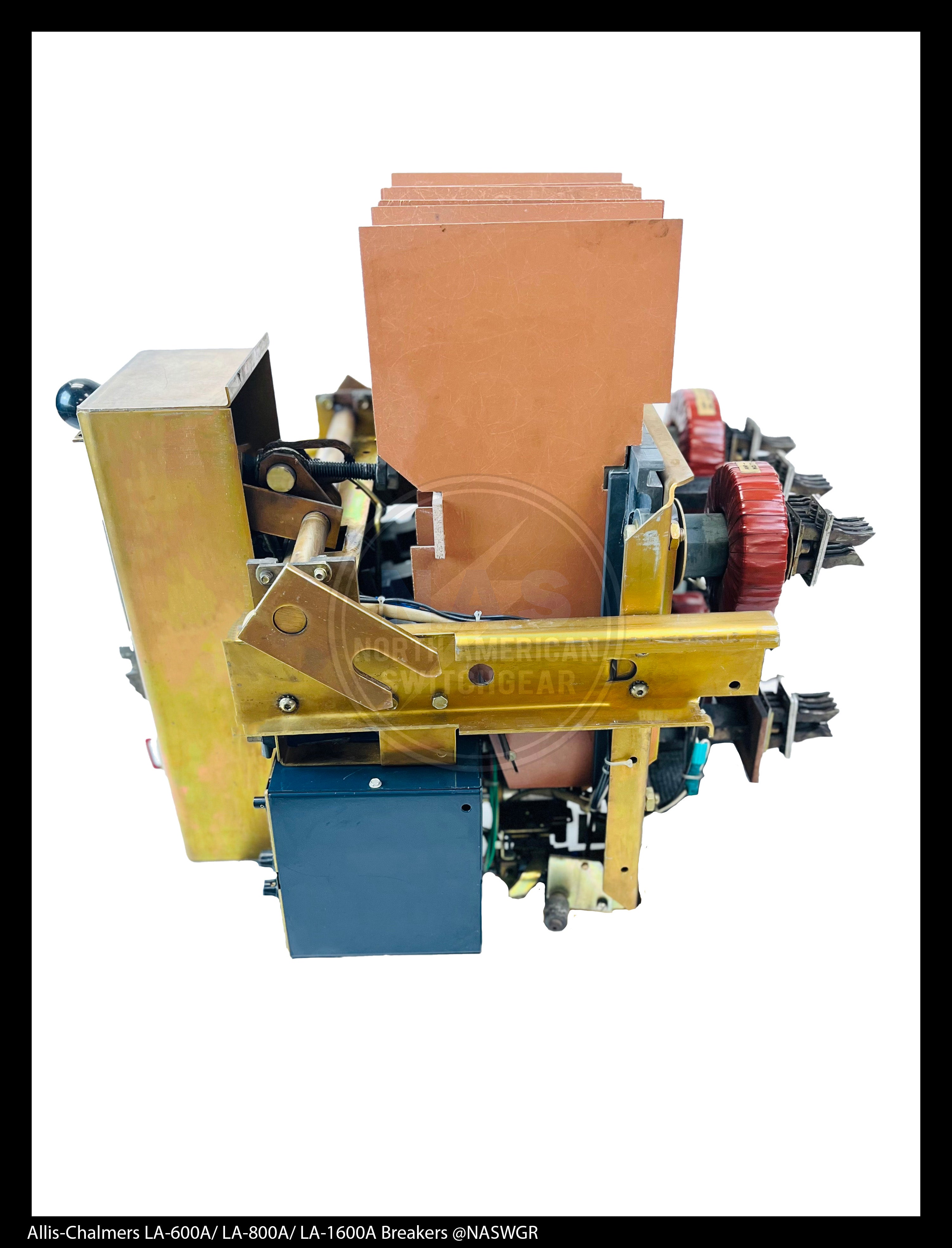

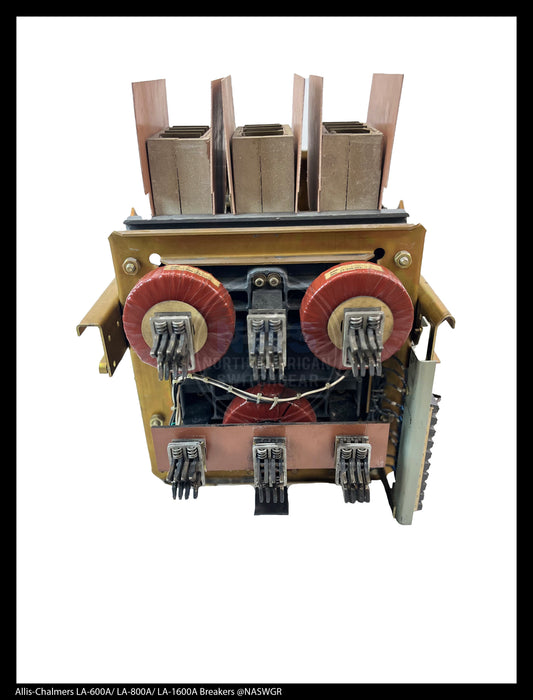

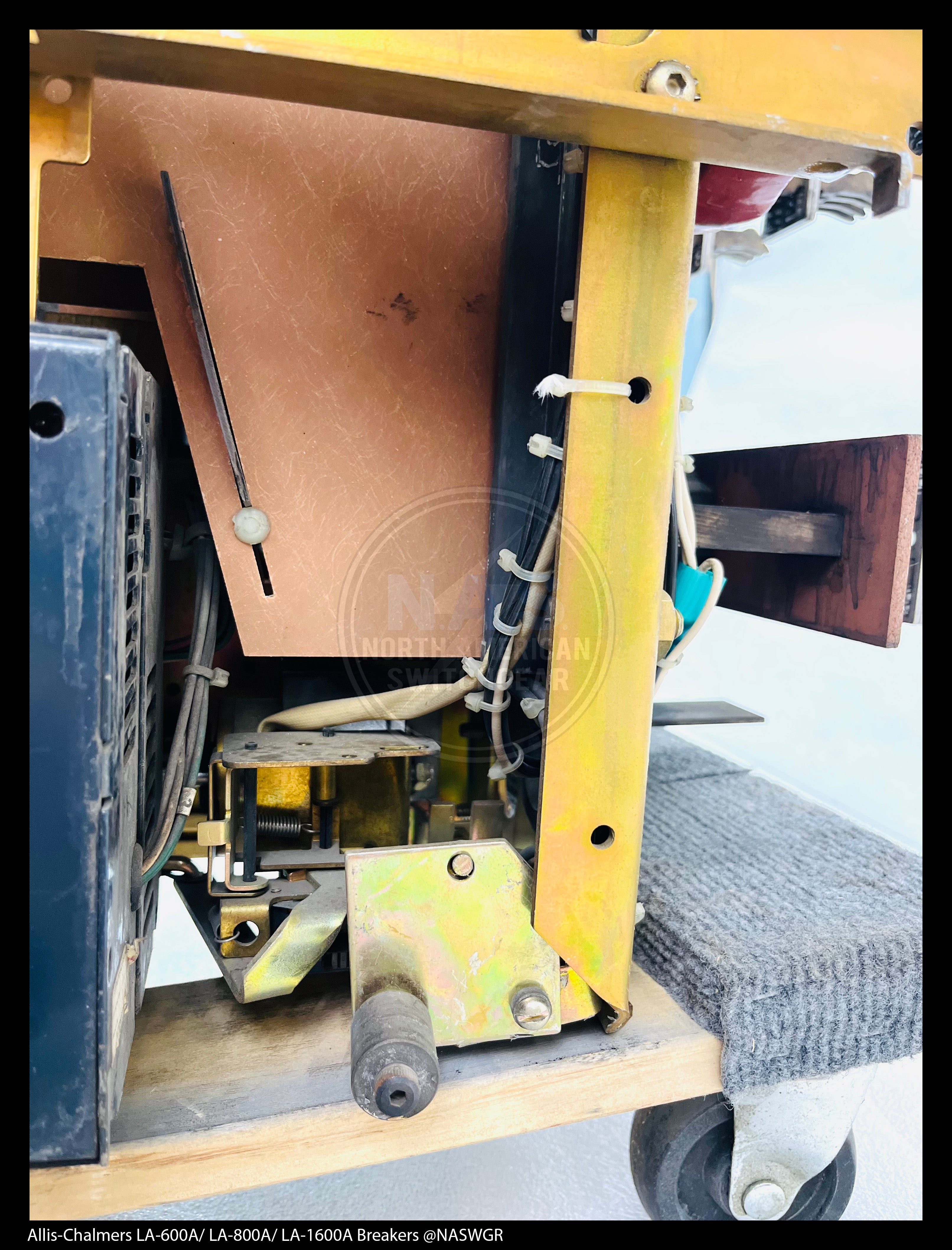

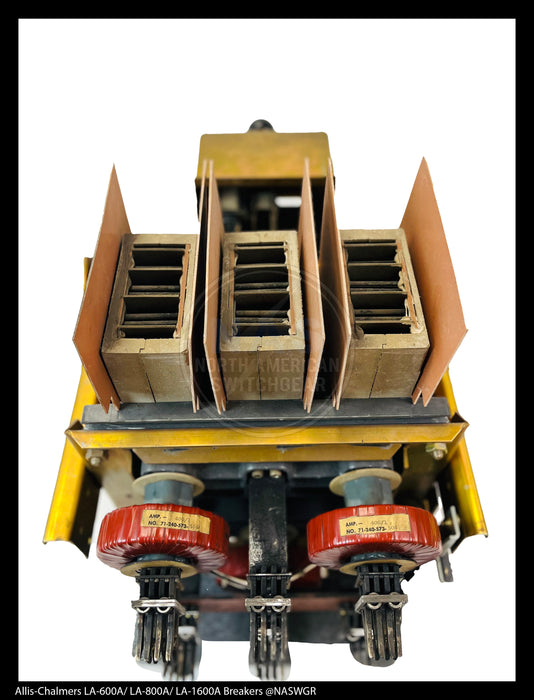

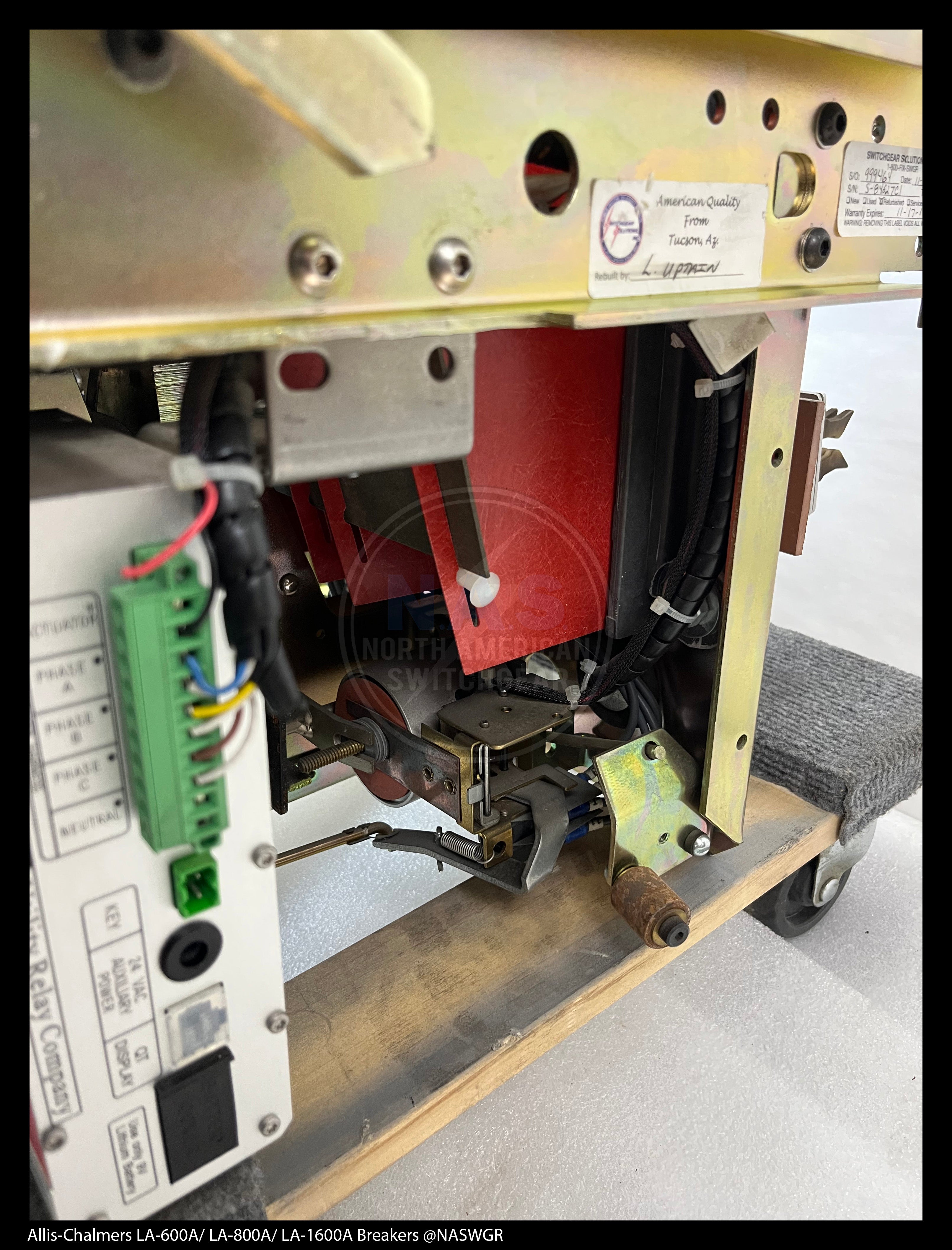

LA-600A Air Circuit Breaker Manual Operation Only
Each LA-600A Air Circuit Breaker is available "AS-IS" or NAS can provide "Cleaned & Tested" or "Class A Reconditioned"- Meggered, Ductored and Tested with Typed Report Backed by Our 1 Year Warranty. All additional accessories can be modified to fit your specific application.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASPG60256, NASG17026, NASG17031, NASG17051, NASG17062, NASG17066, NASG17073, NASG17093 Location: Shipping Container 5, BLDG 6
