Siemens SCND69120AH Circuit Breaker - 1200A ~ with M0MN6120L ~ Surplus
Contact for Quote: 800-909-3660 | sales@naswgr.com
SCND69120AH

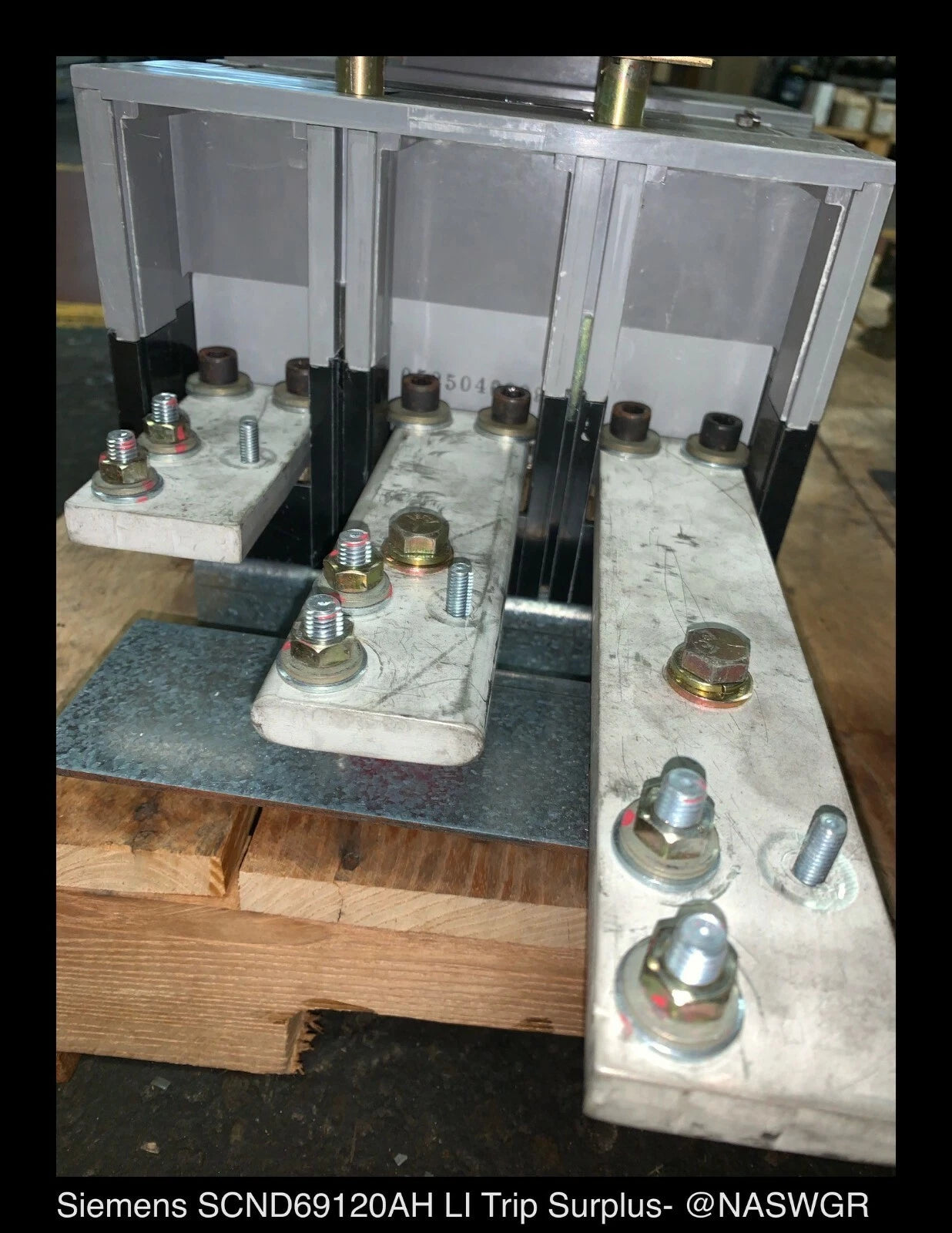

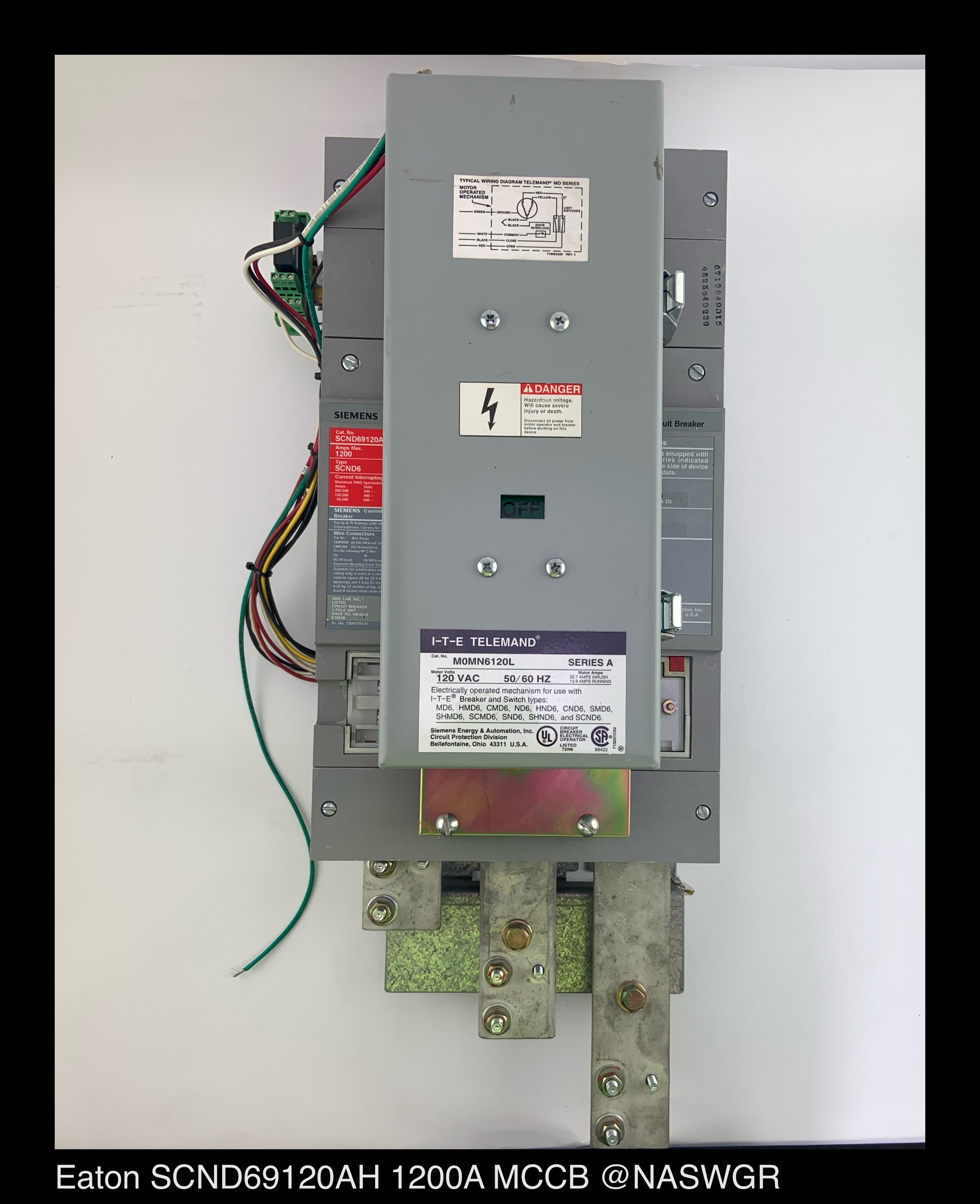

Siemens Current Limiting Circuit Breaker with Motor Operator
Factory Surplus no box

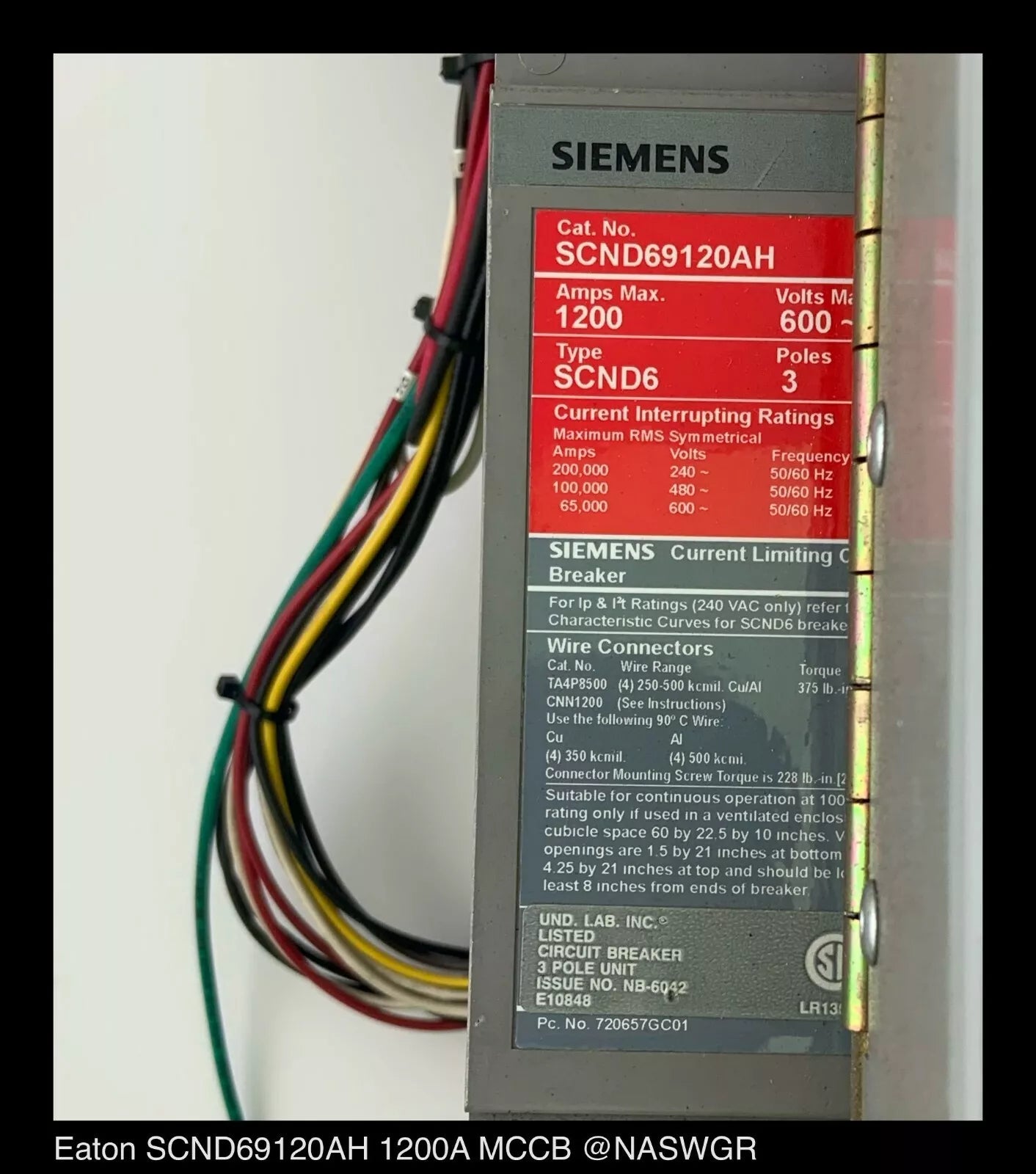

Cat#: SCND69120AH
Type: SCND6
1200 Amp
600 VAC
50/60 Hz
3 Pole

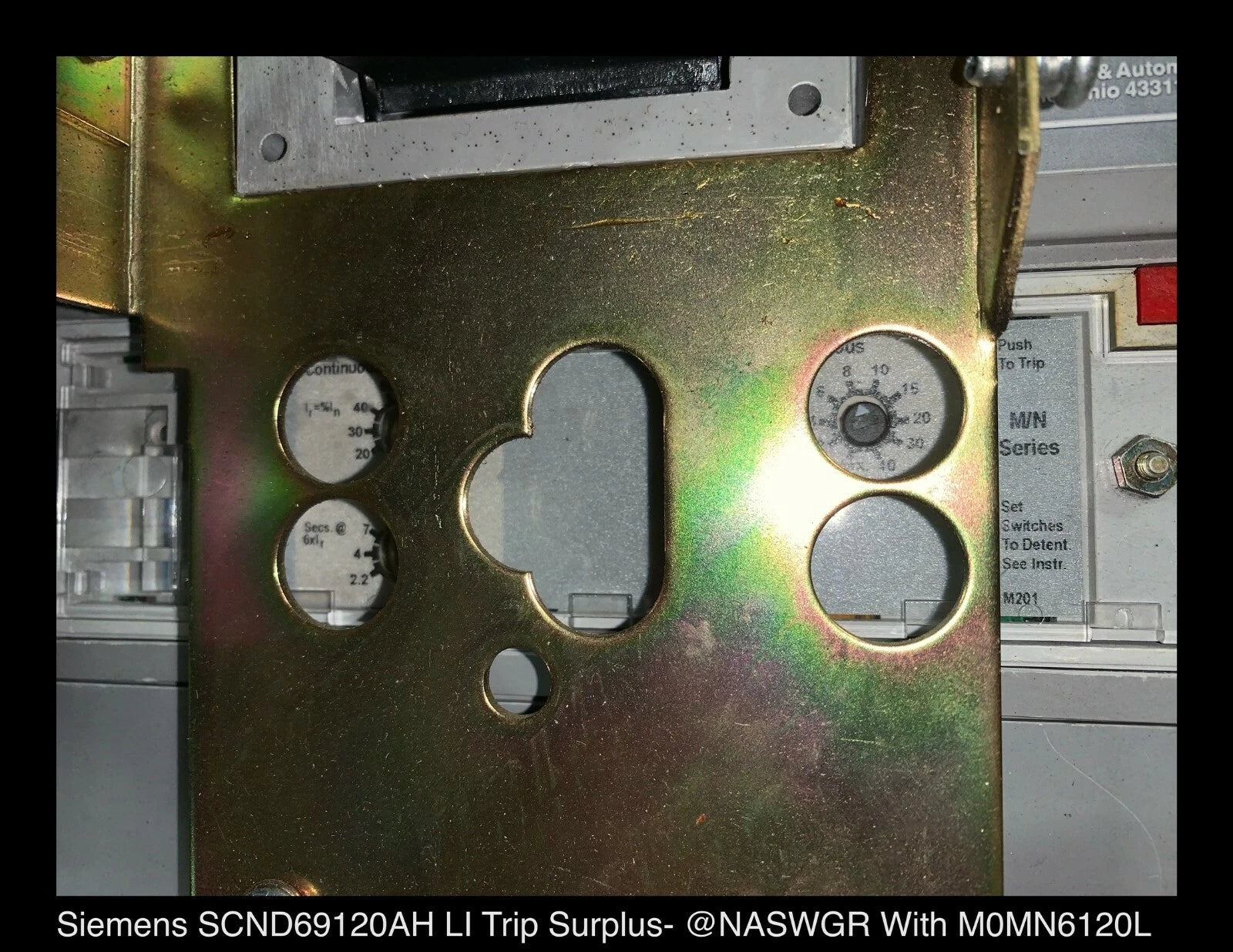

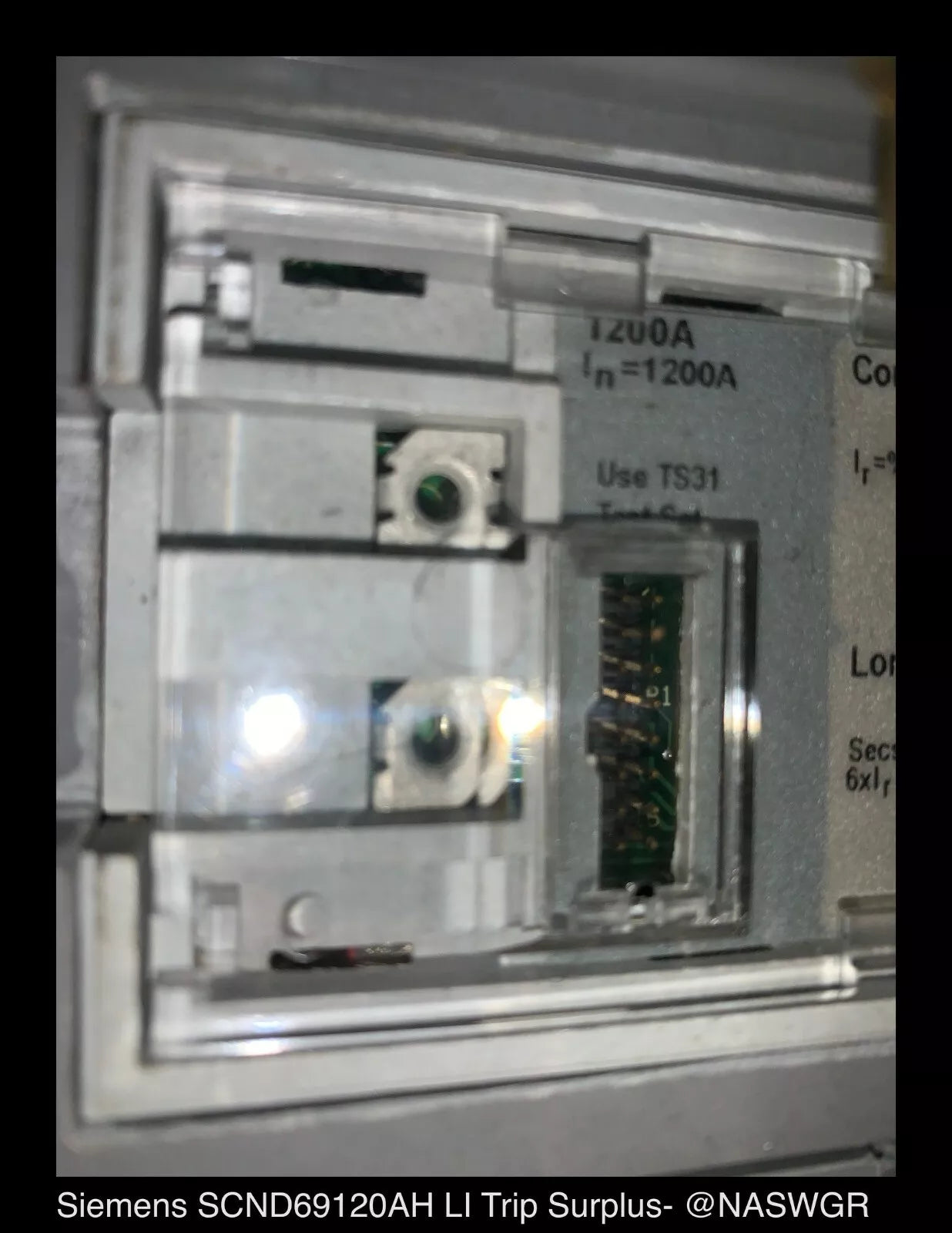

Trip Unit
Type: LI
Long Time and Instantaneous Functions Only. 1200 amp
200kA@240V
100kA@480V
65kA@600V

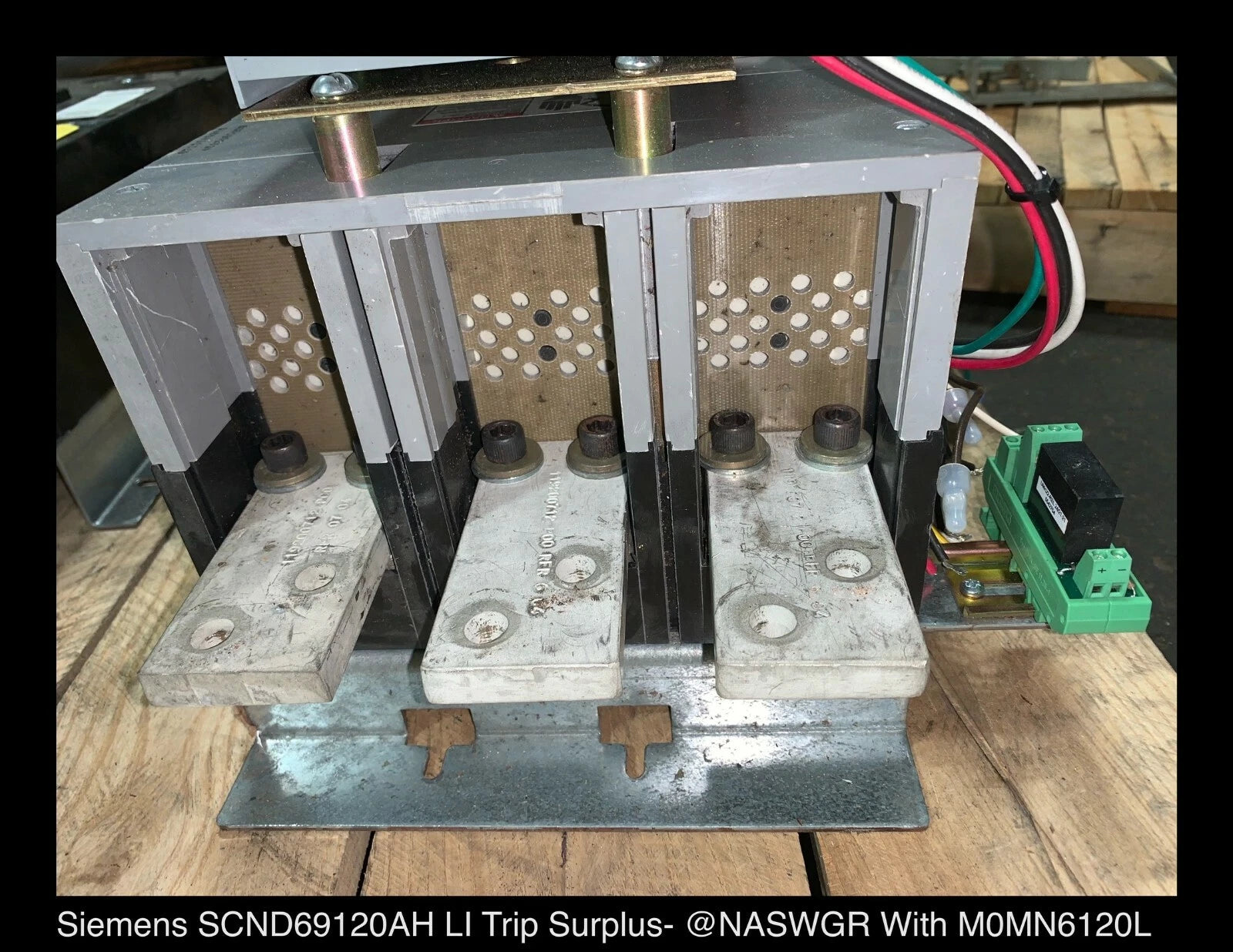

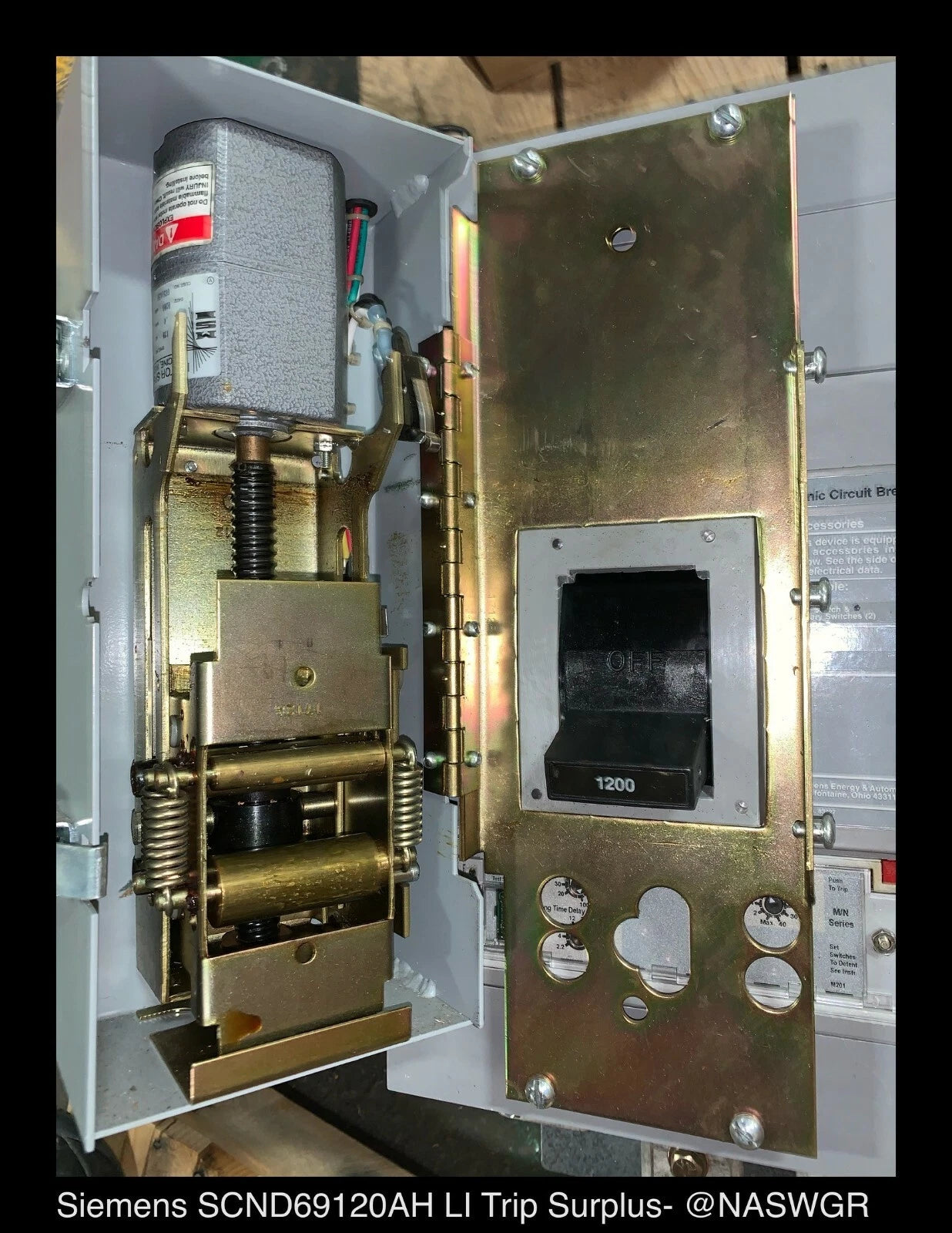

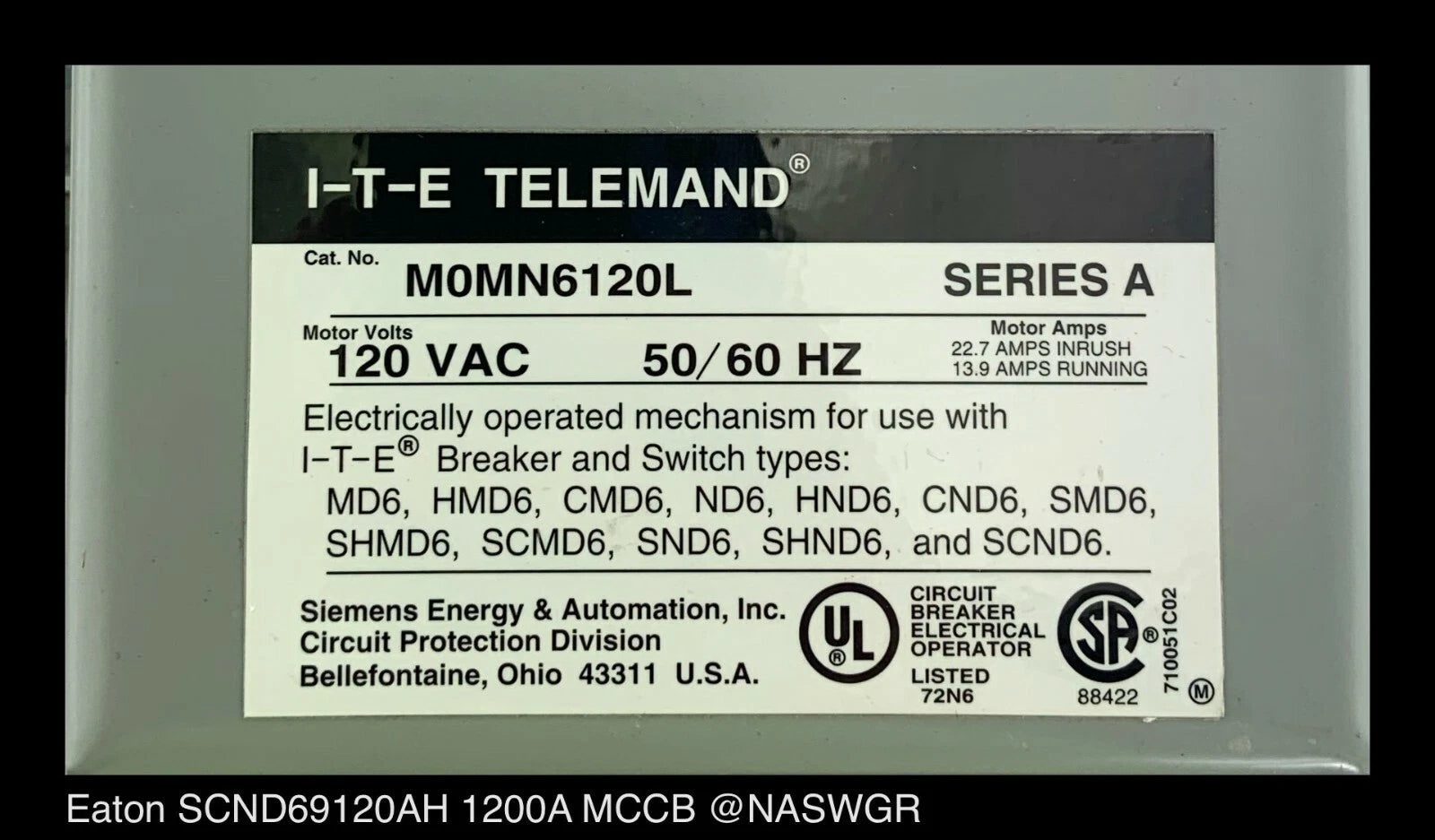

ITE Telemand
CAT#: M0MN6120L
Series A
Motor Volts: 120 VAC
50/60 Hz

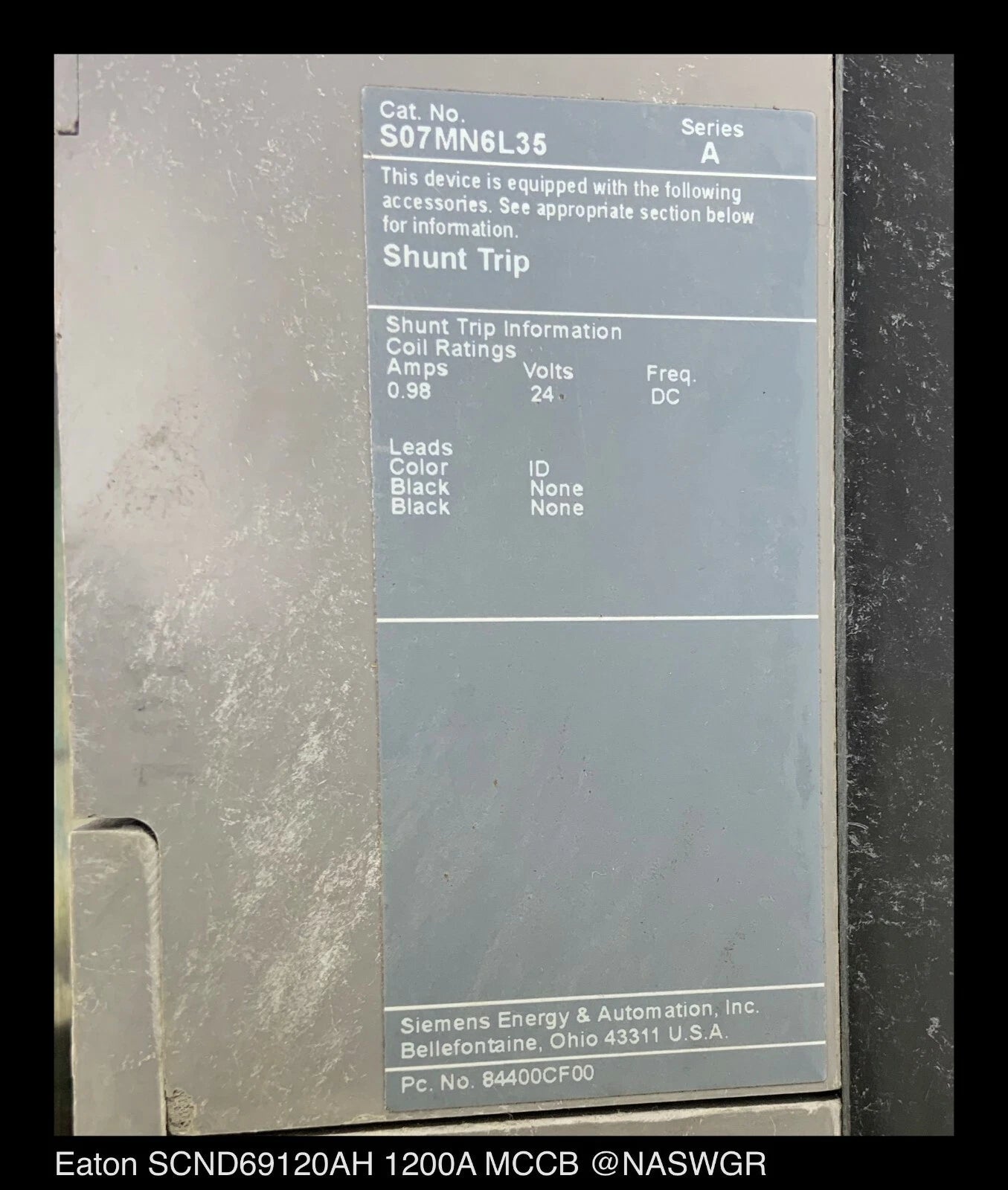

Shunt Trip
CAT#: S07MN6L35
Series A
0.98 Amp
24 VDC

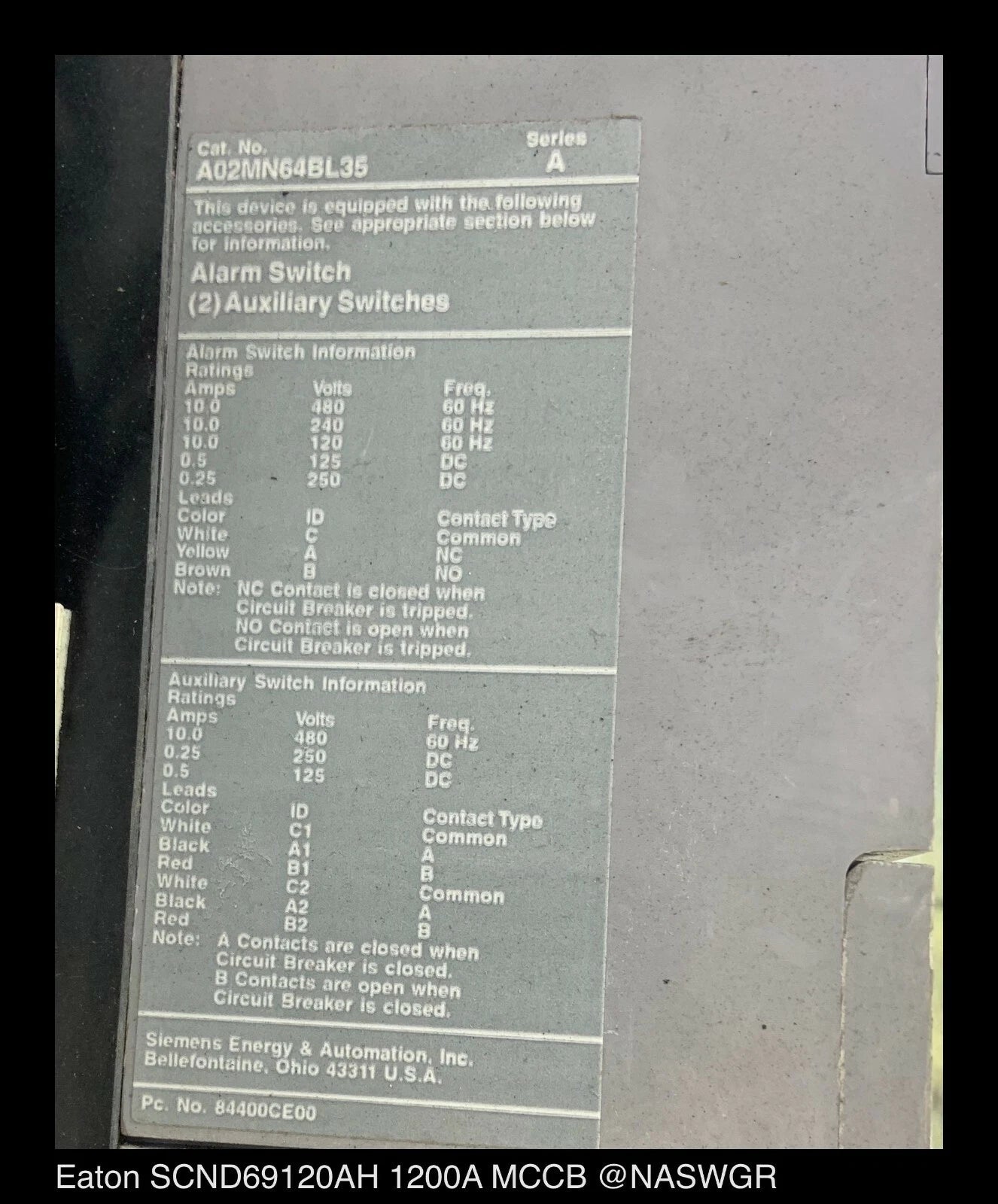

Auxiliary Switch (2)
CAT#: A02MN64BL35
Series A
Alarm Switch: 10 Amp - 120/240/480 VAC - 60 Hz
0.5 Amp - 125 VDC
0.25 Amp - 250 VDC
Auxiliary Switch: 10 Amp - 480 VAC - 60 Hz
0.25 Amp - 250 VDC
0.5 Amp - 125 VDC
Each Unused SCND69120AH Carries our One Year Warranty.
NAS would prefer to ship on a pallet or small crate (too heavy for a box and not safe). Please inquire about shipping options.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASMCG10288ET Location: 6047B
