Square D MasterPact NW08N Circuit Breaker - 400 Amp
Contact for Quote: 800-909-3660 | sales@naswgr.com
NW08N

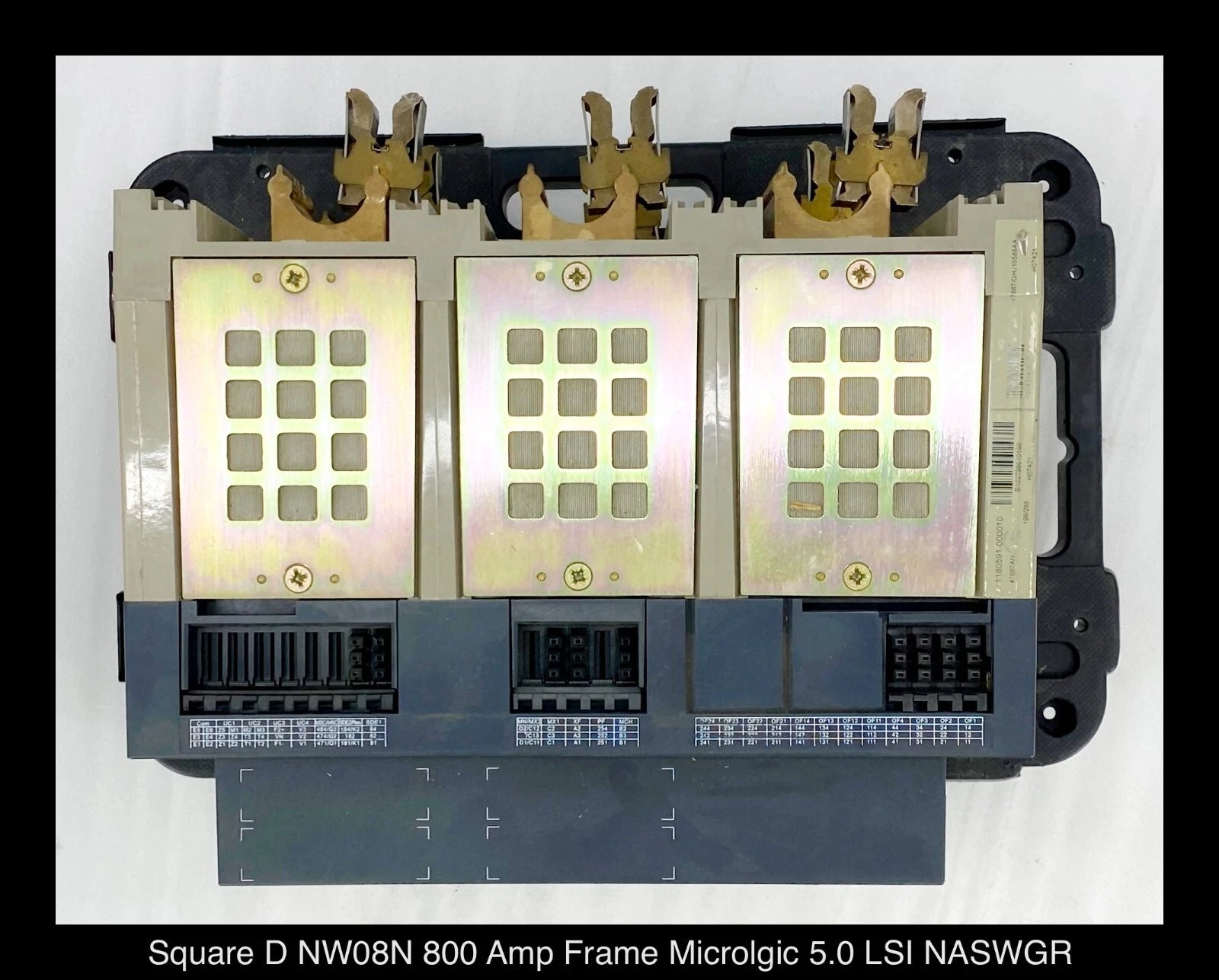

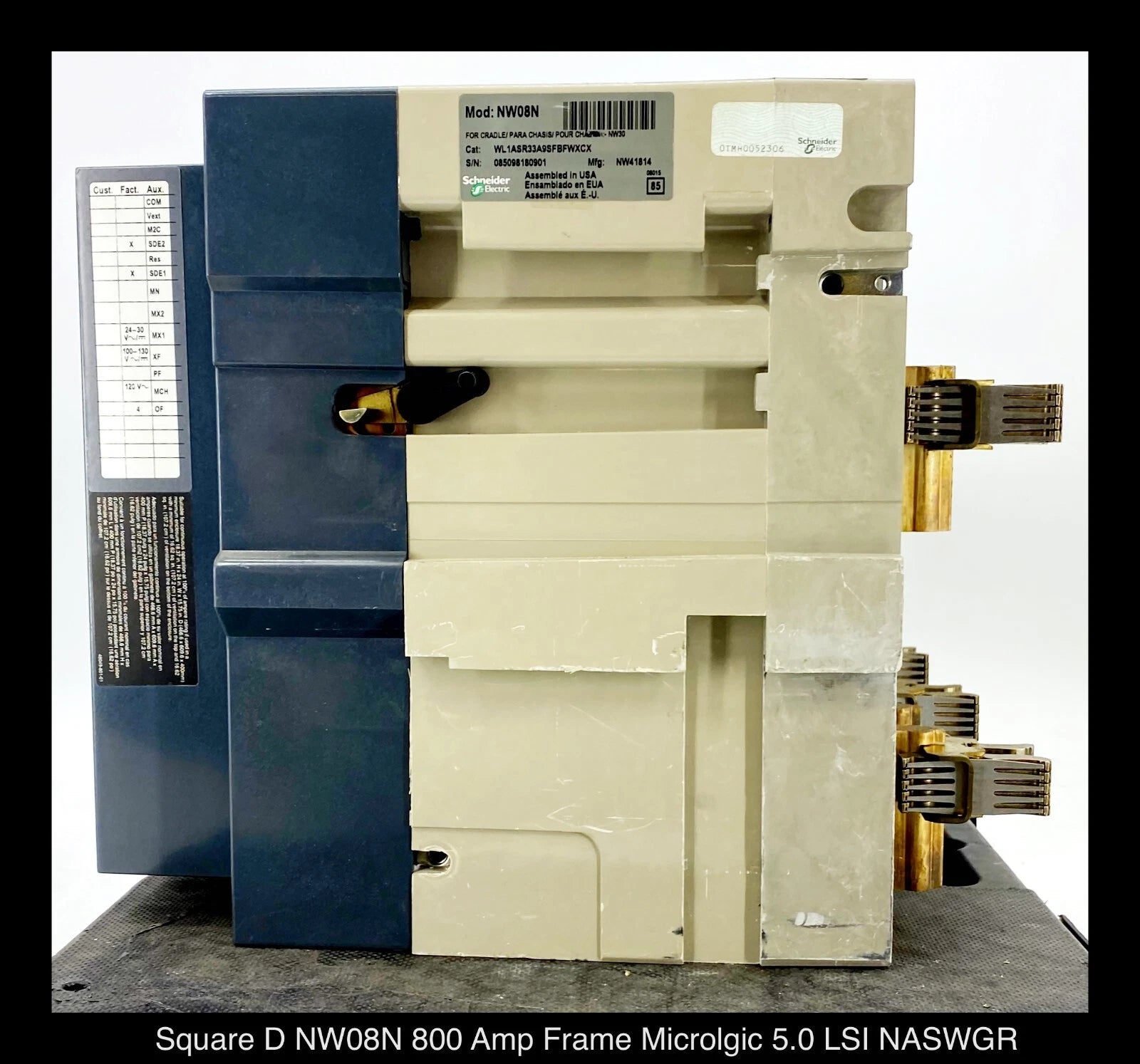

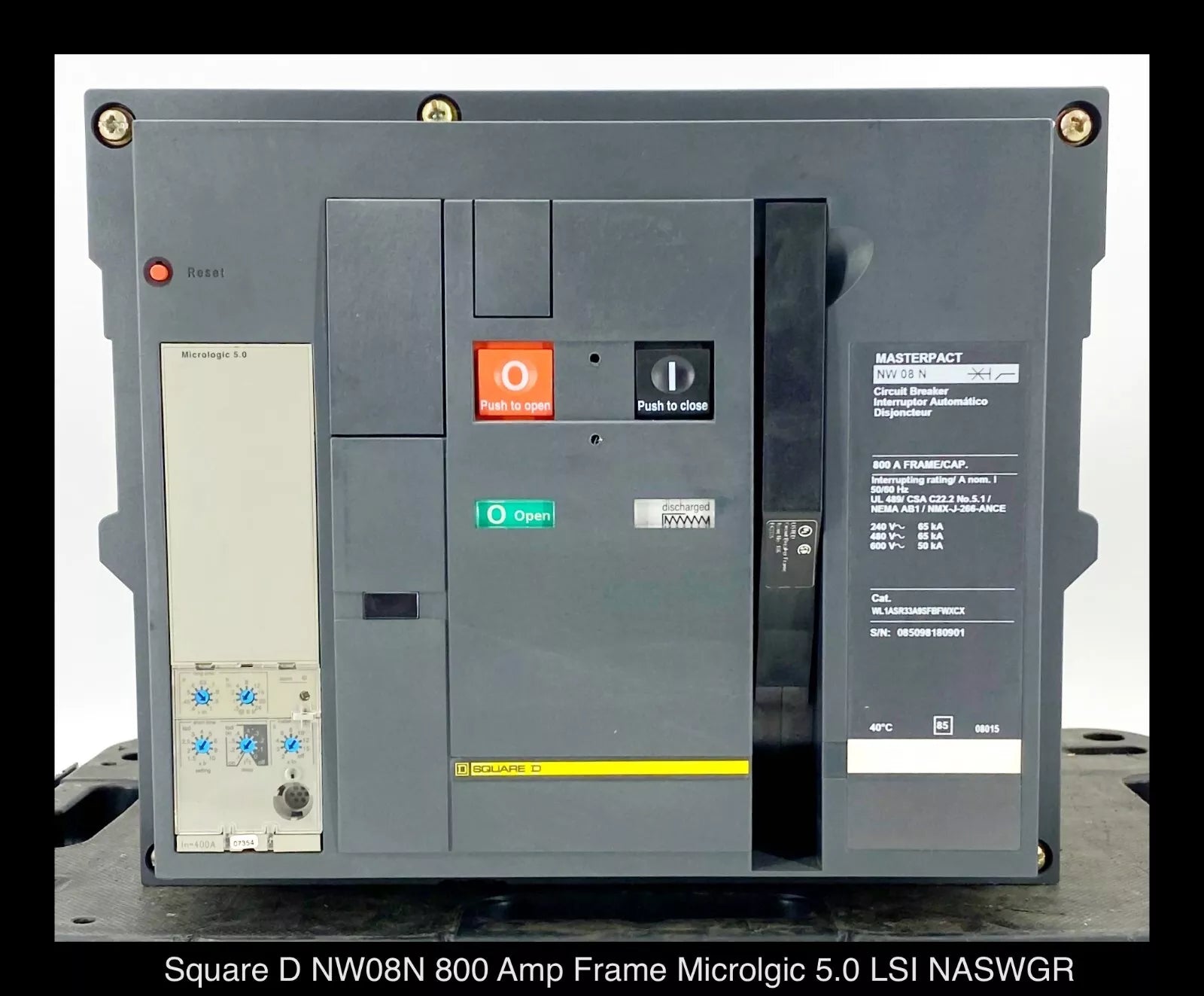

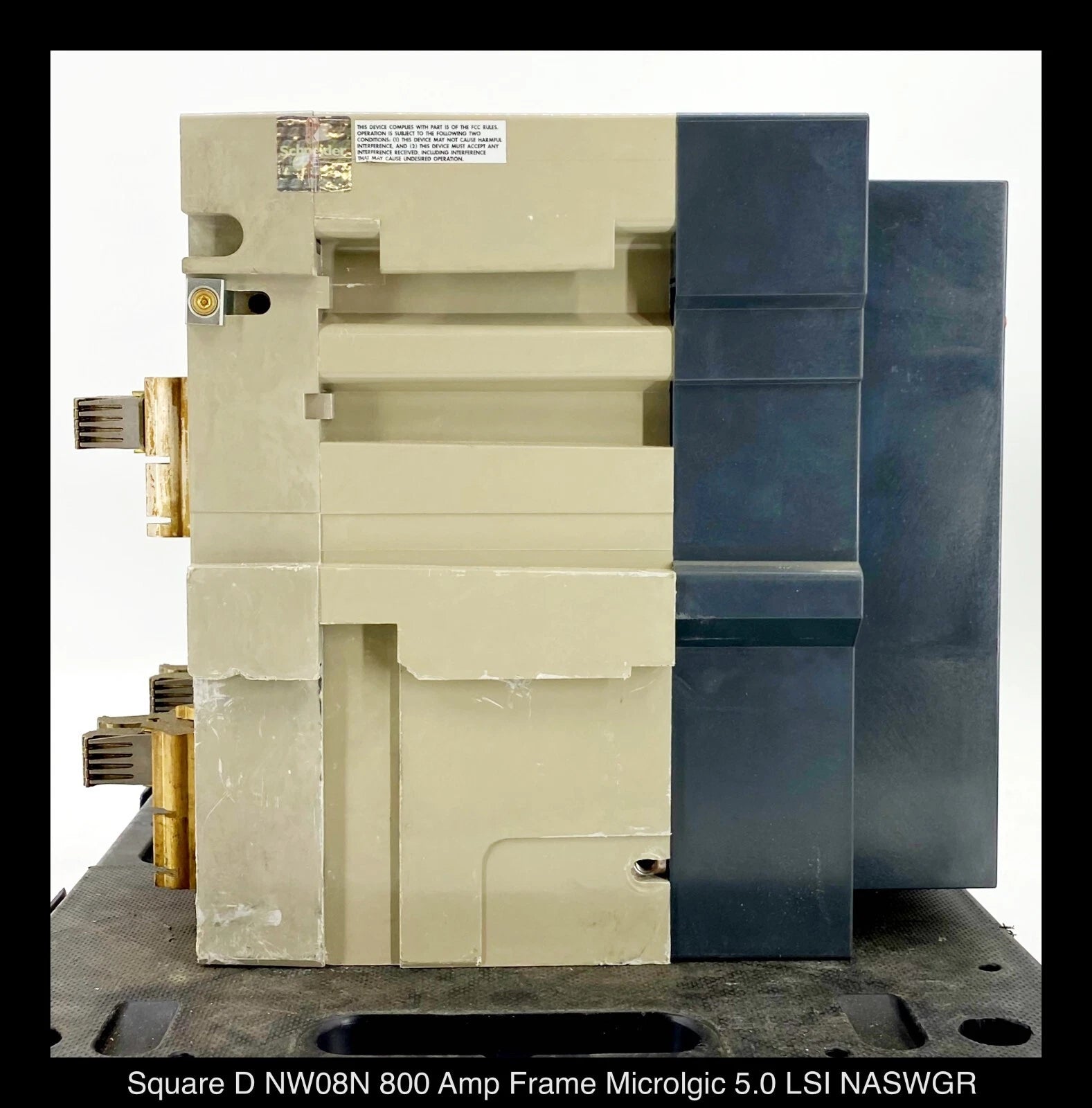

Square D MasterPact NW08N Circuit Breaker
Cat#: WL1ASR33A9SFBFWXCX
Masterpact Catalog Break Down
W - 3 Pole / NW 115mm Pole Spacing / 800 Amp Frame Max
L - Square D / UL Standard

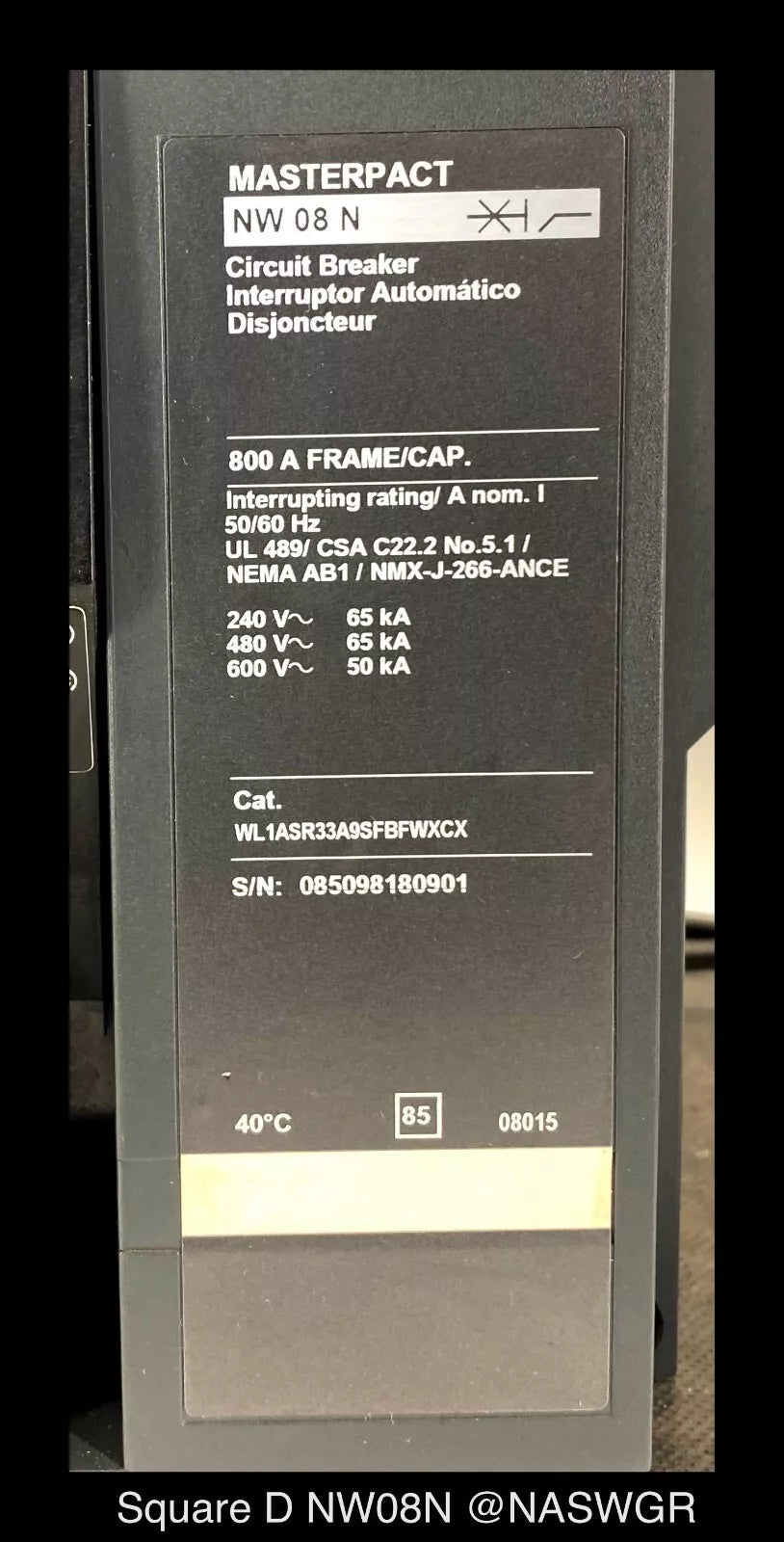

1 - Interrupting/ Withstand Rating @ 65/65/50k
A - 800 Amp Frame
S - 400 Amp Sensors & Rating Plug
R - Drawout Frame

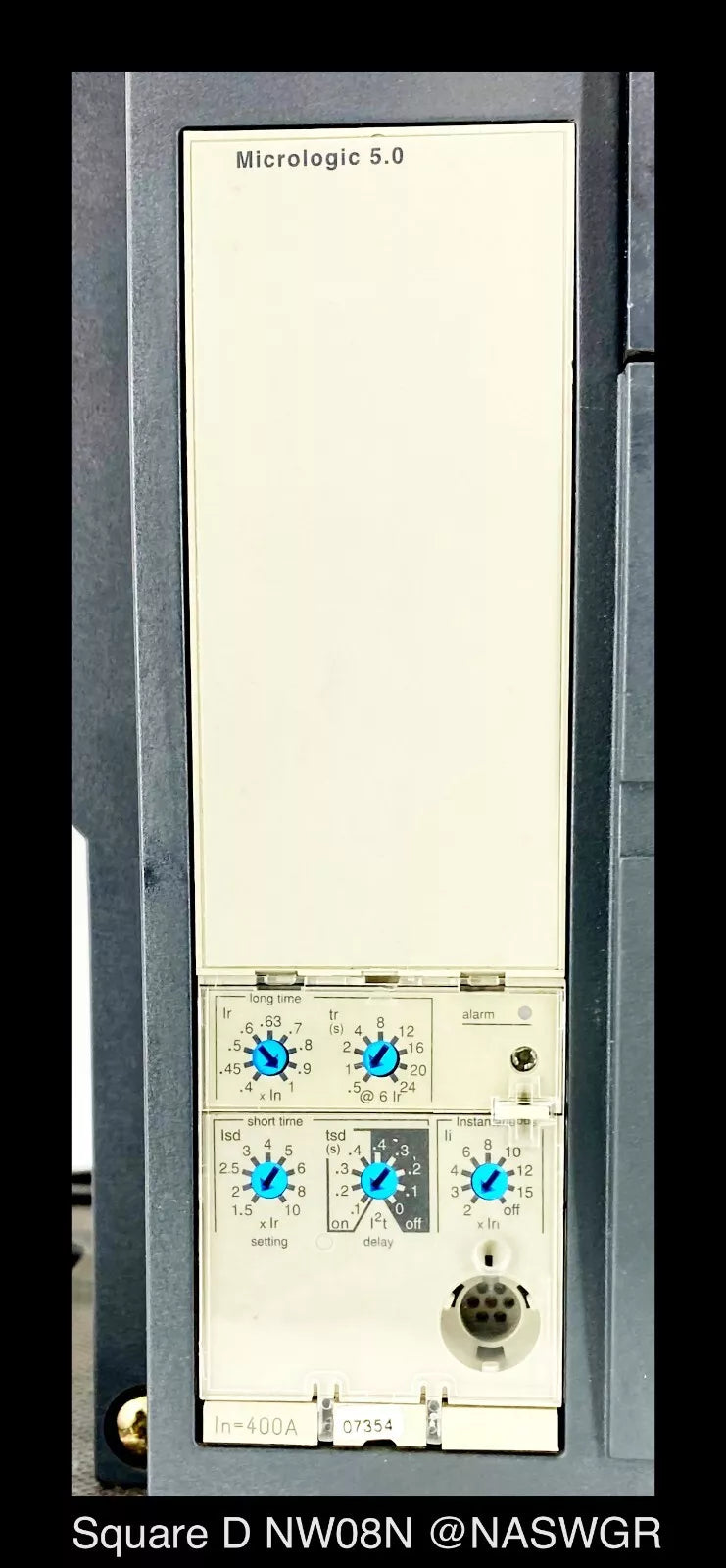

33 - Micrologic 5.0 (LSI)
A - UL Plug “A”
9 - No Communications
S - No PCM / 4 form C Auxiliary Switches
F - 100- 130 vAC/DC Spring Charge Motor
B - 24-30 vAC/DC Shunt Trip
F - 100- 130 vAC/DC Closing Coil
W - 2nd Overcurrent Trip Switch
X - No UVR Device
C - Padlockable Push Button Cover
X - No Padlock
NAS can modify breaker to your accessory configuration. Message us your Catalog # to see if we can match your needs!
Each Reconditioned NW08N is Tested with Report and Backed by our One Year Warranty.
Must ship via freight on a pallet. Please contact for freight quote.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASG14993 Location: 6541B, BLDG 6
