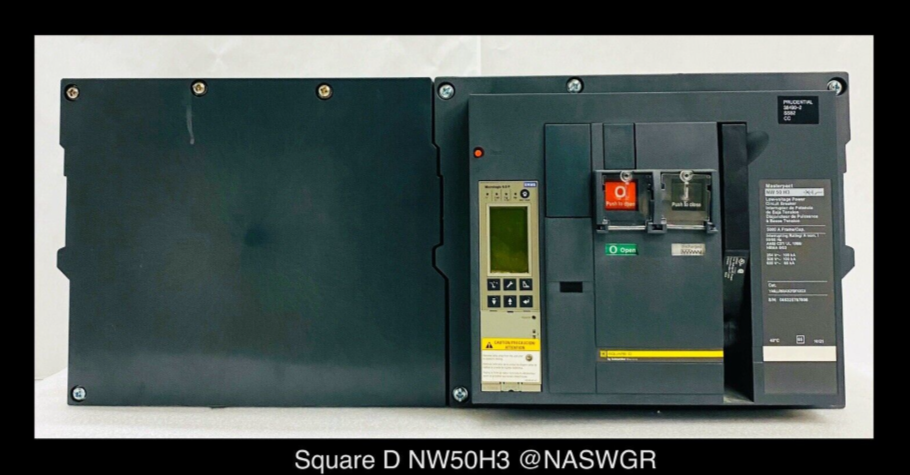

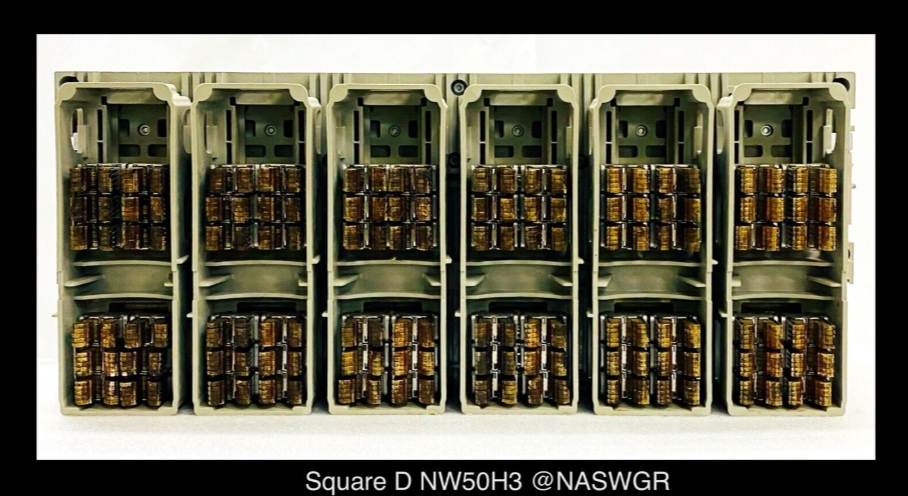

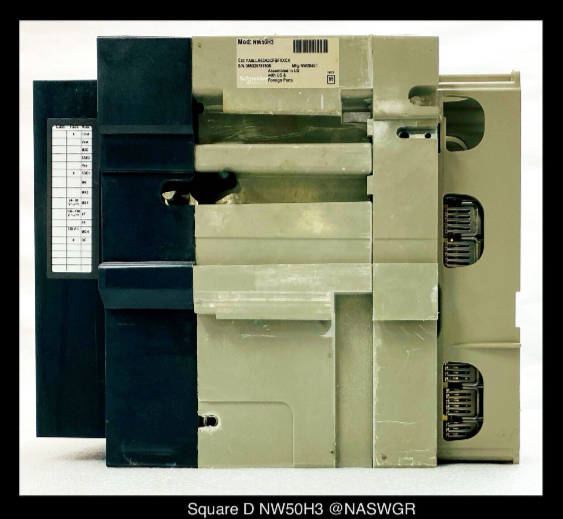

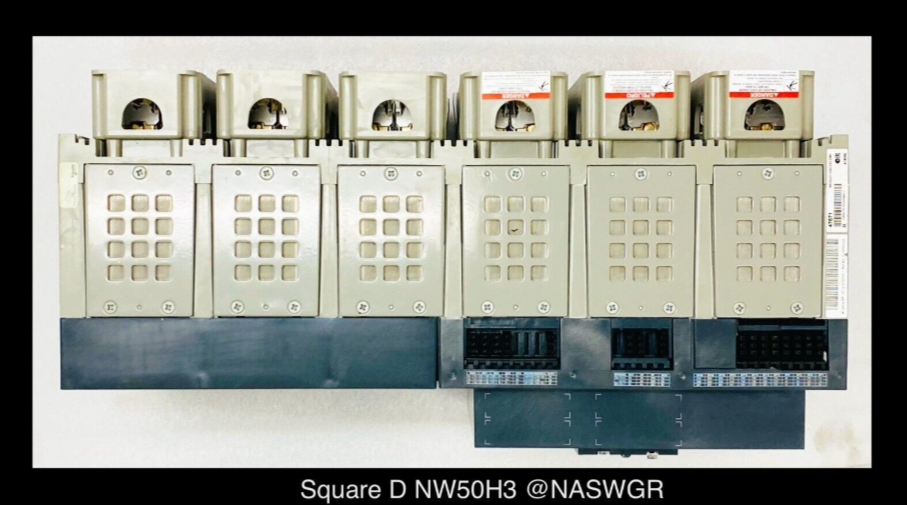

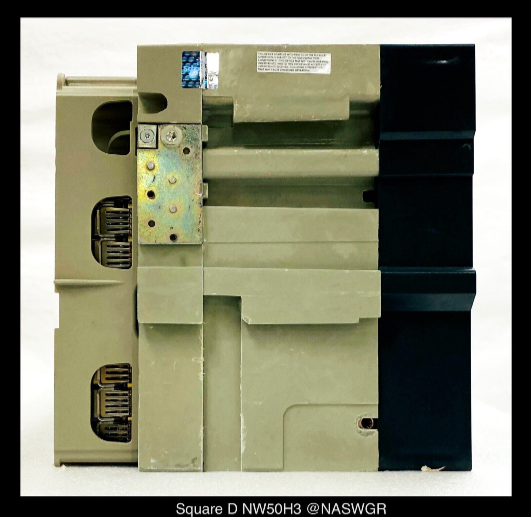

Square D MasterPact NW50H3 Breaker (E/O,D/O) - 5000 Amp
Contact for Quote: 800-909-3660 | sales@naswgr.com
NW50H3
Square D Masterpact NW40H2 Circuit Breaker

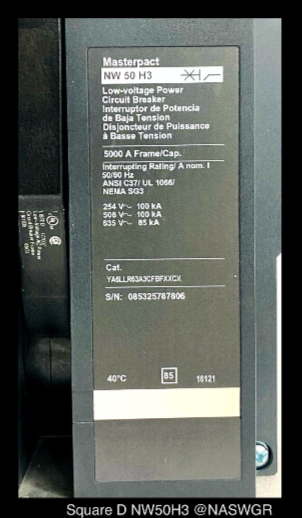

Cat#: YA6LLR63A3CFBFXXCX
Masterpact Catalog Break Down
Y - 3 Pole / NW 230mm Pole Spacing / 6000 Amp Frame Max
A - Square D / ANSI Standard
6 - Interrupting/ Withstand Rating @ 85/85/85kA
L - 5000 Amp Frame
L - 5000 Amp Rating Plug
R - Drawout Frame

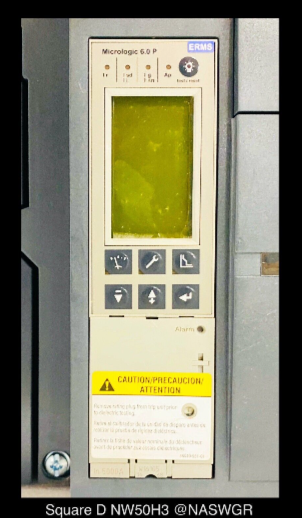

63 - Micrologic 5.0P (LSI)
A - UL Plug “A”
3 - Modbus Communications
C - No PCM / 8 form C Auxiliary Switches
F - 100-130vAC Spring Charge Motor
B - 24-30vAC/DC Shunt Trip
F - 100-130vAC/DC Closing Coil
X - No 2nd Overcurrent Trip Switch
X - No UVR Device
C – Padlockable Push Button Cover
X - No Padlock
*Cradle Sold Separately, Available Upon Request*
NAS can modify breaker to your accessory configuration. Message us your catalogue number to see if we can match your needs!
Each NW50H3 is Cleaned, Tested with Report, and Carries our One Year Warranty!
Must ship via freight on a pallet. Please contact for freight quote.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
