Power Shield Type SS5G ~ 609903-T005
Power Shield Type SS5G ~ 609903-T005

Power Shield Type SS5G ~ 609903-T005

by Power Shield

Contact for Quote: 800-909-3660 | sales@naswgr.com

609903-T005

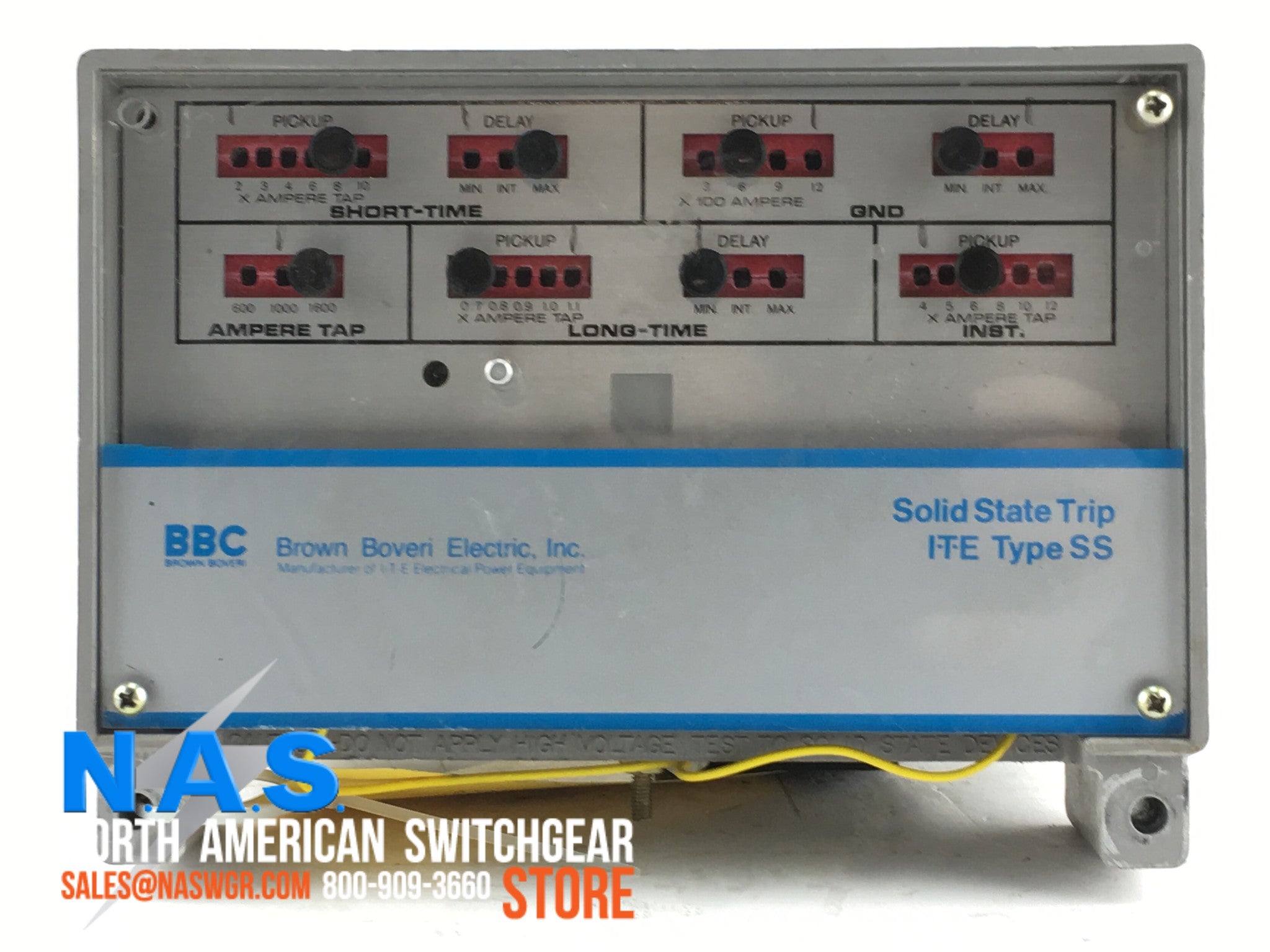

Power Shield Solid State Trip Unit

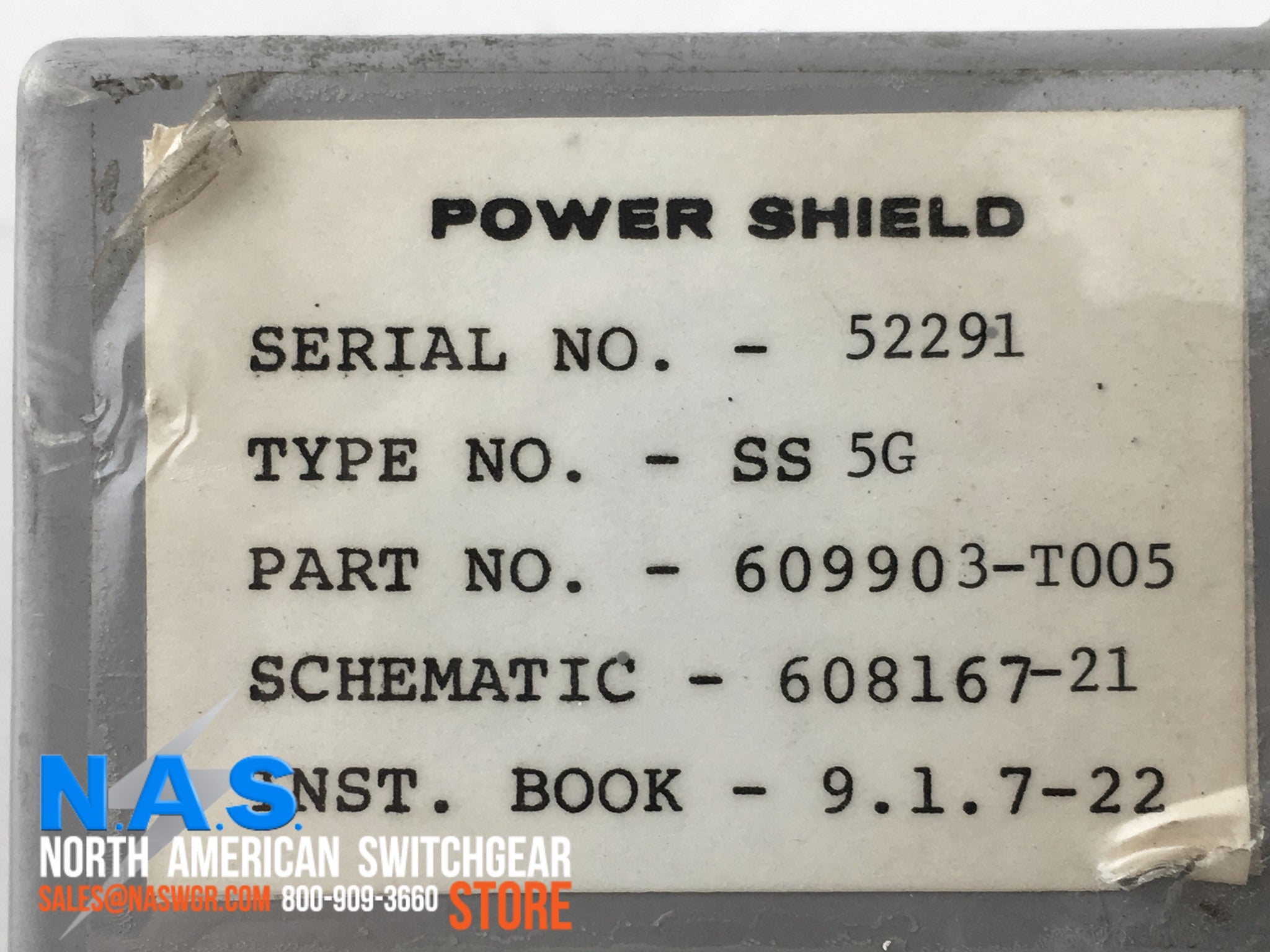

Type No. SS5G
Part No. 609903-T005
Schematic - 608167-12
Inst. Book - 9.1.7-22

Long Time Pickup: 0.7, 0.8, 0.9, 1.0, 1.1
Long Time Delay: Min, Int, Max
Short Time Pickup: 2, 3, 4, 5, 8, 10
Short Time Delay: Min, Int, Max
Instantaneous: 4, 5, 6, 8, 10, 12
Ground Pickup: 3, 6, 9, 12
Ground Delay: Min, Int, Max
Ampere Tap: 600, 1000, 1600

Each Reconditioned Relay is Tested with Report and Backed by our One Year Warranty.


Standard lead time (1-3) days prior to shipping. If item is needed sooner please call or email.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725

NASPG24465 Location: 6367B

NASPG33202
