ATC-300+

Eaton Automatic Transfer Switch Controller

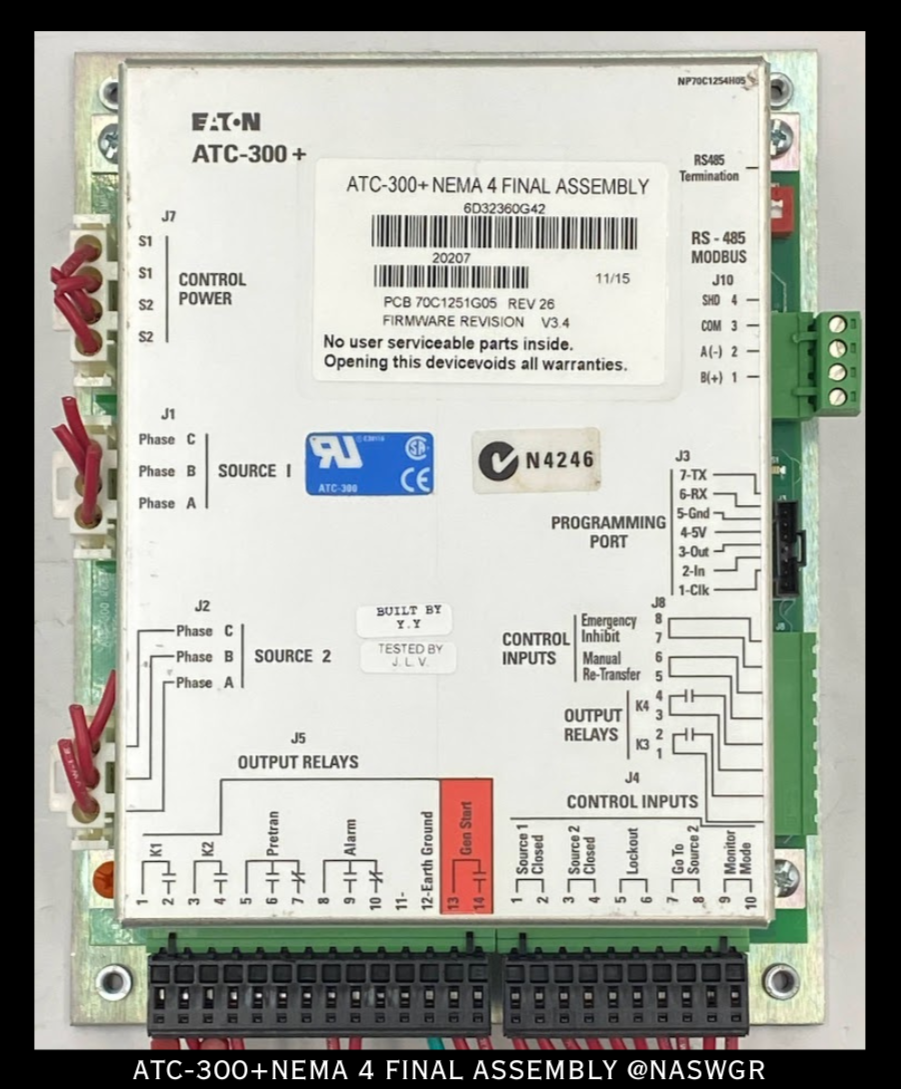

Style#: 6D32360G42
PCB 70C1251G05 REV. 26
Firmware Revision: V3.4
Input Control Voltage 65 to 145 Vac 50/60 Hz
Power Consumption 18 VA
Voltage Measurements of:  Source 1 VAB Source 2 VAB
                                            Source 1 VBC Source 2 VBC
                                            Source 1 VCA Source 2 VCA
Voltage Measurement Range: 0 to 790 Vac RMS (50/60 Hz)
Voltage Measurement Accuracy: ± 1% of Full Scale
Frequency Measurements of: Source 1 and Source 2
Frequency Measurement Range: 40 Hz to 70 Hz
Frequency Measurement Accuracy: ± 0.3 Hz Over the Measurement Range
Operating Temperature Range: -20 to +70°C (-4 to +158°F)
Storage Temperature Range: -30 to +85°C (-22 to +185°F)
Operating Humidity: 0 to 95% Relative Humidity (Non-condensing)
Operating Environment: Resistant to Ammonia, Methane, Nitrogen, Hydrogen, and            Hydrocarbons
Generator Start Relay (Form C):
    5 A, 1/6 HP @ 250 Vac
    5 A @ 30 Vdc with a 150 W Maximum Load
K1, K2, Pretransfer, Alarm Relays, K3, K4. output contacts:
   10 A, 1-3 HP @ 250 Vac
   10 A @ 30 Vdc
Applicable Testing:
   UL Recognized Component
   Meets UL 1008
   Meets Intent of UL 991,
   Meets IEC 1000-4-2, 1000-4-3, 1000-4-4, 1000-4-5, 1000-4-6, 1000-4-11
   Meets CISPR 11, Class A
   Complies with FCC Part 15, Class A

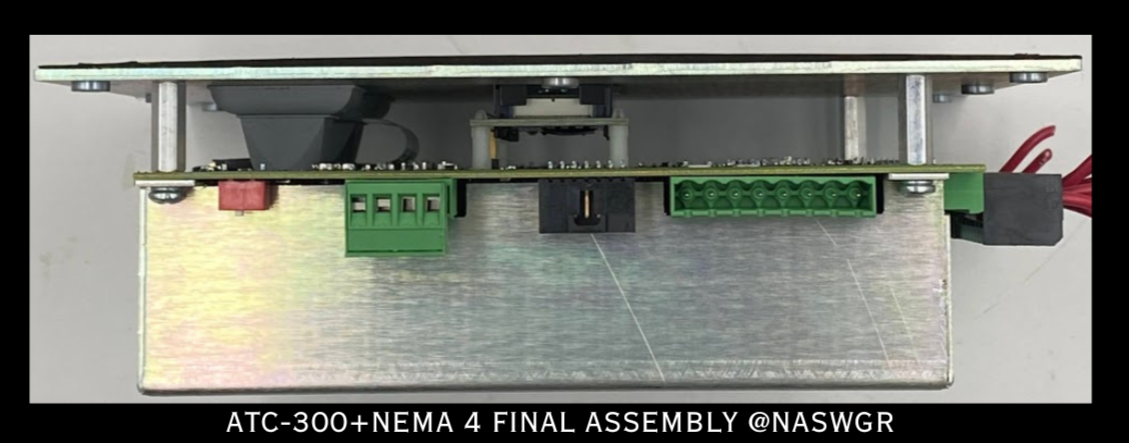

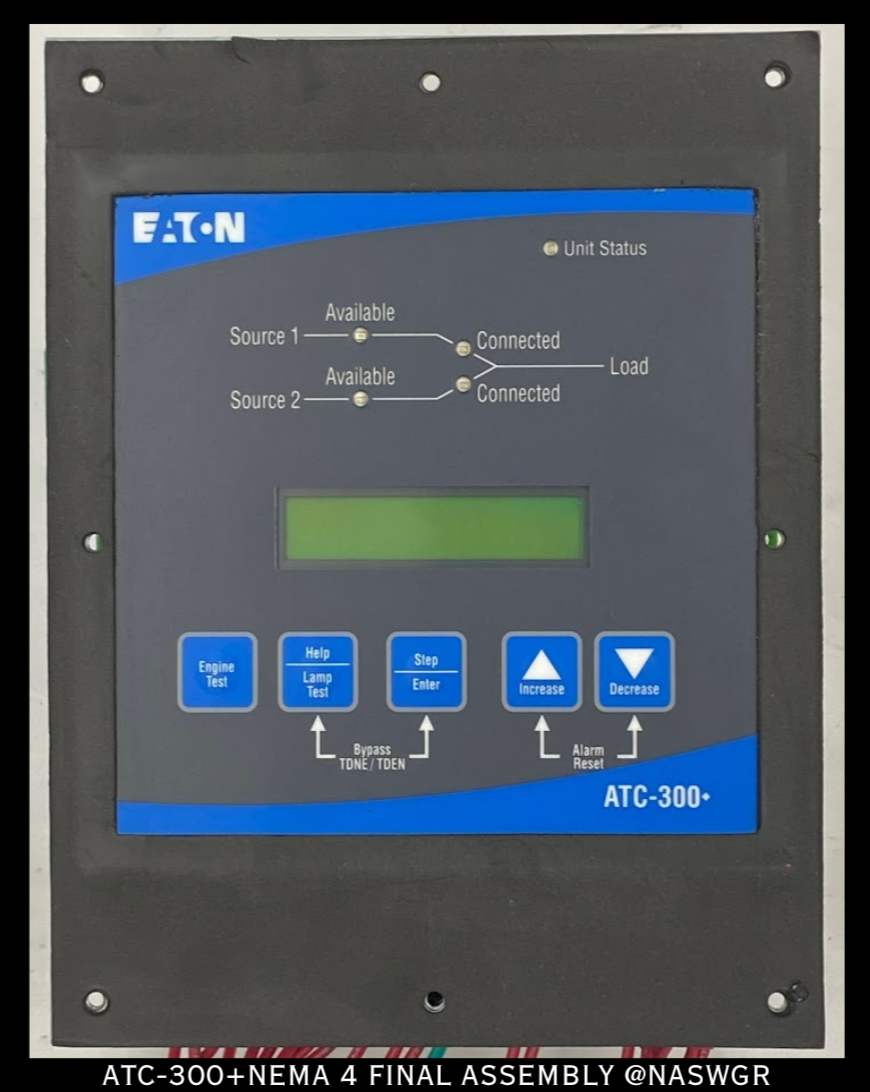

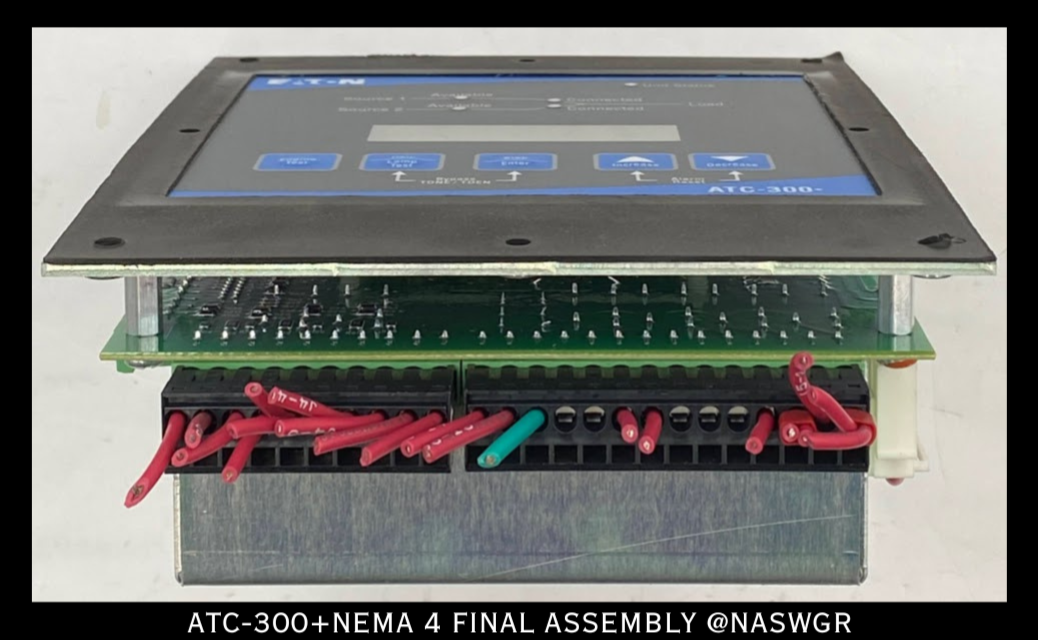

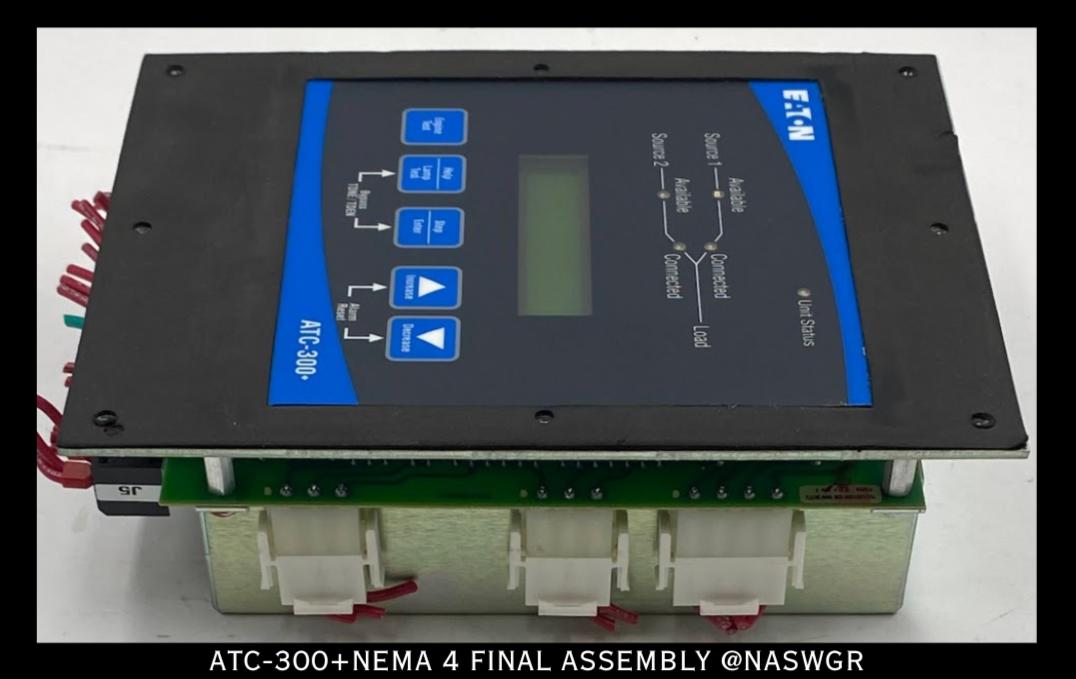

Enclosure Compatibility: NEMA 4 Final Assembly, UV Resistant ATC-300+ Faceplate
Input Control Contacts: DC wetted (24 volts at 10 ma)

Each ATC-300+ is Inspected Prior to Shipping.
