by Eaton / Cutler Hammer

Contact for Quote: 800-909-3660 | sales@naswgr.com

MDSC40 Switchgear



EATON Cutler-Hammer MDSC40 Switchgear
EATON Cutler-Hammer MAGNUM DS Switchgear

NAS owns more Magnum MDS Switchgear, Magnum MDS-C Circuit Breakers and Loose Parts.

4000 Amp Bus
480/277 volt
3 Pole
100K Short Circuit Rating
85K Short Time Current
3 Phase 4 Wire
60 Hertz

Internal Components

SNAS5797-1-2
(1) 4000 AMP MAGNUM MDSC CRADLE

(2) Cuter-Hammer C320KGT8 Series A2

Cutler-Hammer 9253C03H09 Neutral Sensor 1600:1 Ratio
(NASPG30600-1&2)

(2) Cutler-Hammer D320CPU Programmable Logic Controller (PLC)
Cat# , D320CPU320

(12) Cutler-Hammer D320DOM1600R D320 Series PLC Digital Output Module

(2) Cutler-Hammer D320PSU24DC D320 Series PLC Power Supply

(76) EATON Cutler-Hammer D5PR31T1 General Purpose ICE Cube Relay
24vDC Series D5 with Indicating Light

Diversified Electronics Relay TBC24AAA 24vAC/DC .01 Seconds to 102.3 Seconds
10A@250vAC or 24vDC

(1) CROMPTON Instrument Transformer Cat# , 190X4000
Ratio 5.4.000A

SNAS5790-1-2
(1) 4000 AMP MAGNUM MDSC CRADLE

(1) CROMPTON Instrument Transformer Cat# , 475-480 Potential Transformer
4:1 Ratio 480 volt

(1) TIME MARK CORPORATION MODEL C2644 3-PHASE MONITOR

(2) Cuter-Hammer C320KGT8 Series A2

Diversified Electronics Relay TBC24AAA 24vAC/DC .01 Seconds to 102.3 Seconds
10A@250vAC or 24vDC

(1) Cutler-Hammer mMINT ModBus Translator Cat# , mMINT

(2) ELECTROSWITCH TYPE S2 Switch Cat# 505A621G01

(1) ELECTROSWITCH Rotary Switch Cat# 505A612G01

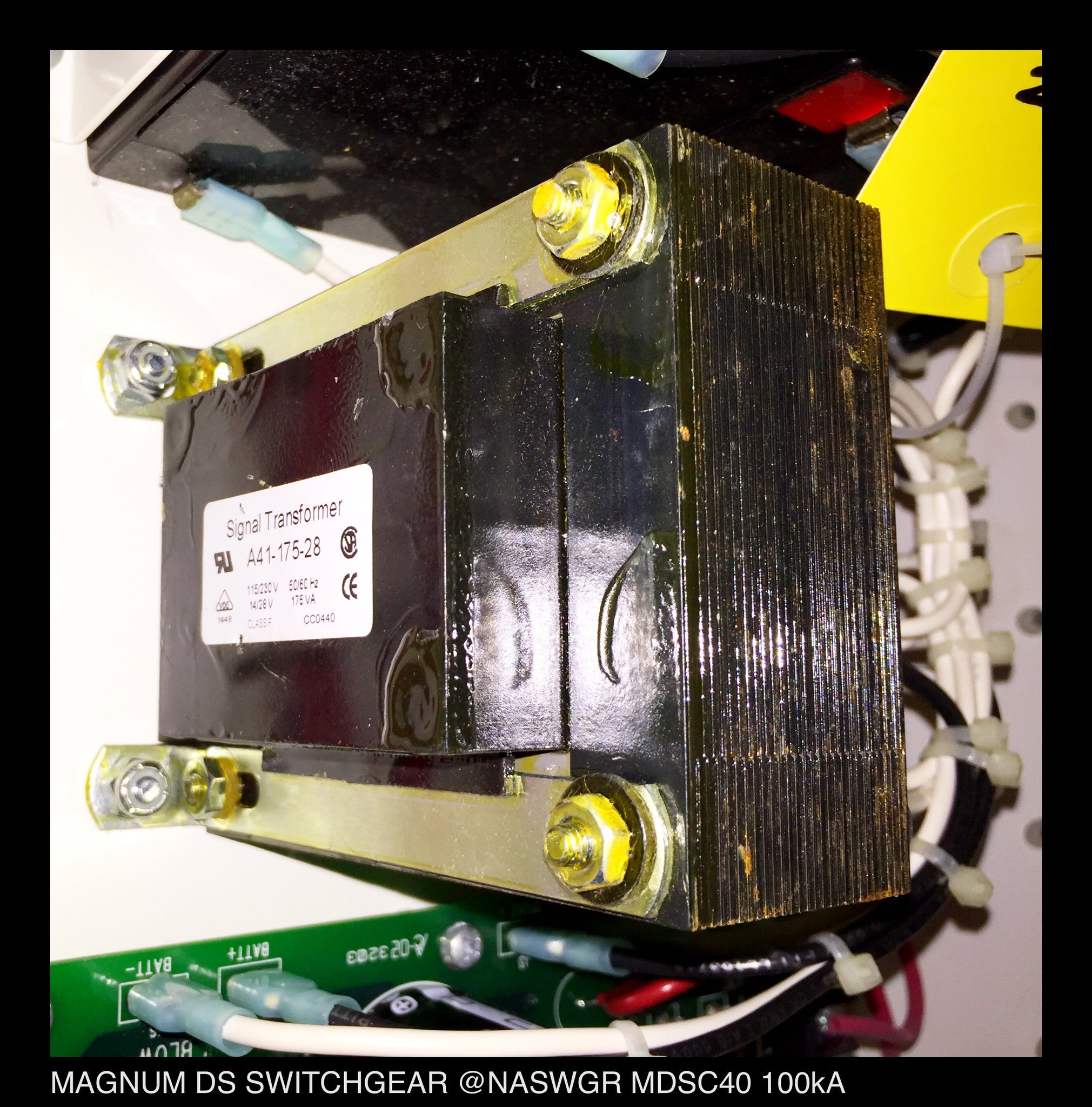

(3) Signal Transformer PN: A41-175-28
(NASPG30586-NASPG30585-NASPG30584)

(3) ABBRA Controls Ride Thru Batteries
National Battery NB 12-5

(3) ABBRA Controls PN: 200401-G01 Rev 4 UNINTERRUPTIBLE POWER SOURCE (UPS)

(1) Basler BE3-25 Sync Check Relay Cat# , BE3-25-1A1N5

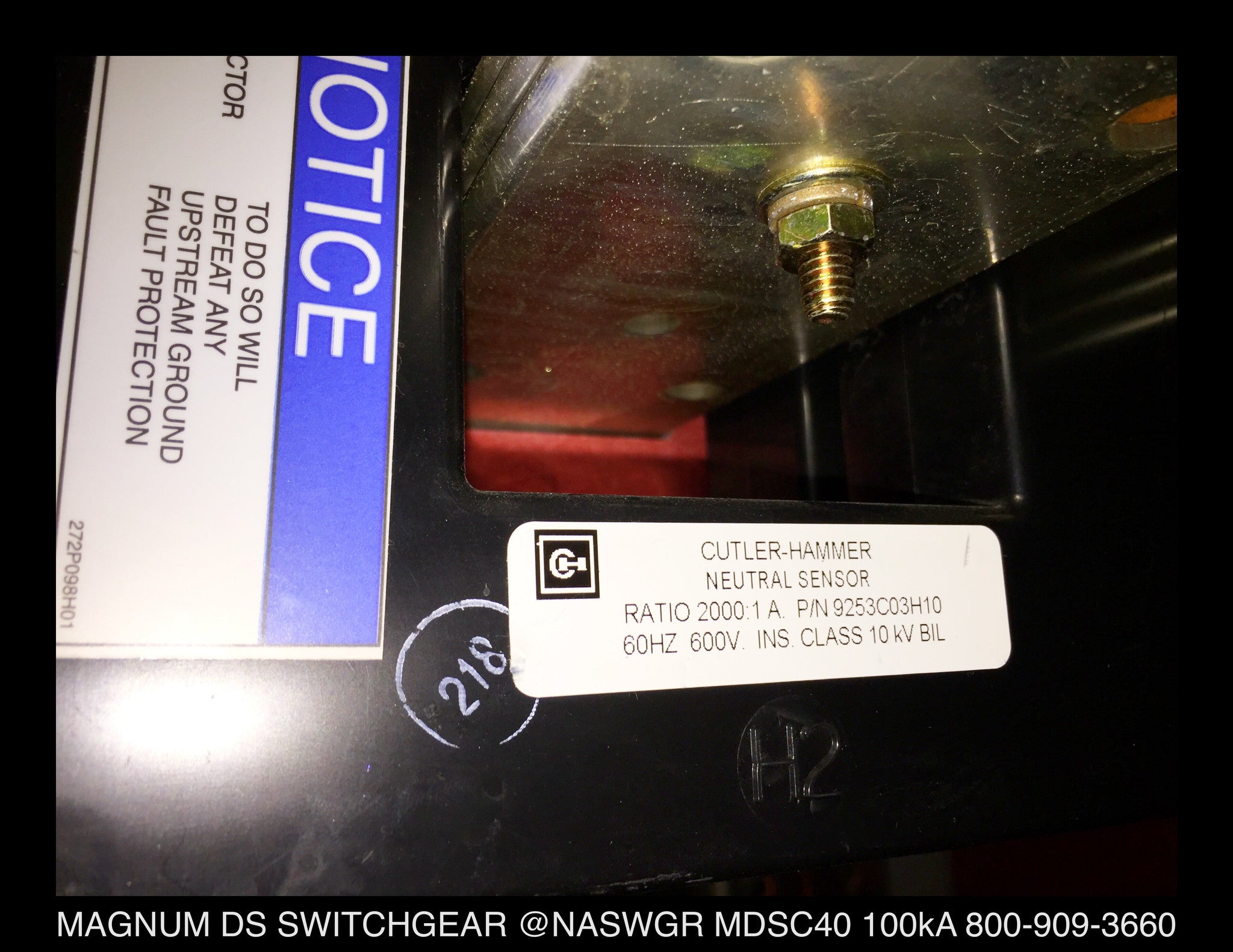

(2) Cutler-Hammer 9253C03H10 Neutral Sensors
2000:1A
(NASPG30587-1/2)

SNAS5793-1-2

(1) 4000 AMP MAGNUM MDSC CRADLE

(2) Cutler-Hammer 9253C03H09 Neutral Sensor
1600:1
(SNAS30592-1/2)

SNAS5795-1-2

(1) TIME MARK CORPORATION MODEL C2644 3-PHASE MONITOR

(1) Cutler-Hammer mMINT ModBus Translator Cat# , mMINT

(1) CROMPTON Instrument Transformer 475-480 4:1 Ratio Potential Transformer

(2) Cutler-Hammer 9253C03H10 Neutral Sensors
2000:1 Ratio

BASLER ELECTRIC BE3-25-1A1N5 SYNC CHECK RELAYS
BE3-25
PN: 9319100101
(NASPG30641-1 NASPG30614-2 IN A SECTION)

NAS owns MAGNUM MDS-C Switchgear from 800 amp up to 4000 amp along with the MDSC Circuit Breakers and Loose Parts.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725

North American Switchgear, Inc. is an industry leader in the sale of new, used and out-of-production industrial circuit breakers, switchgear and associated parts. Our Cleveland, OH facility spans over 300,000 square feet and houses over 13,000 low and medium voltage circuit breakers from all major manufacturers. Aside from the sale of circuit breakers, switchgear and replacement parts, NAS also offers equipment recondition and repair services. For more information please visit our website at www.naswgr.com, call 800-909-3660 or email sales@naswgr.com.


Visit our NAS website!
