DST-2-5-250

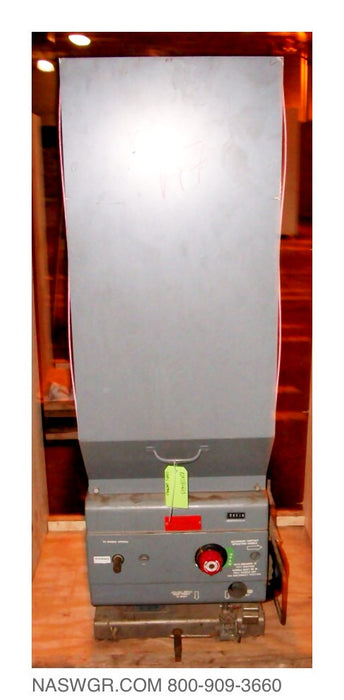

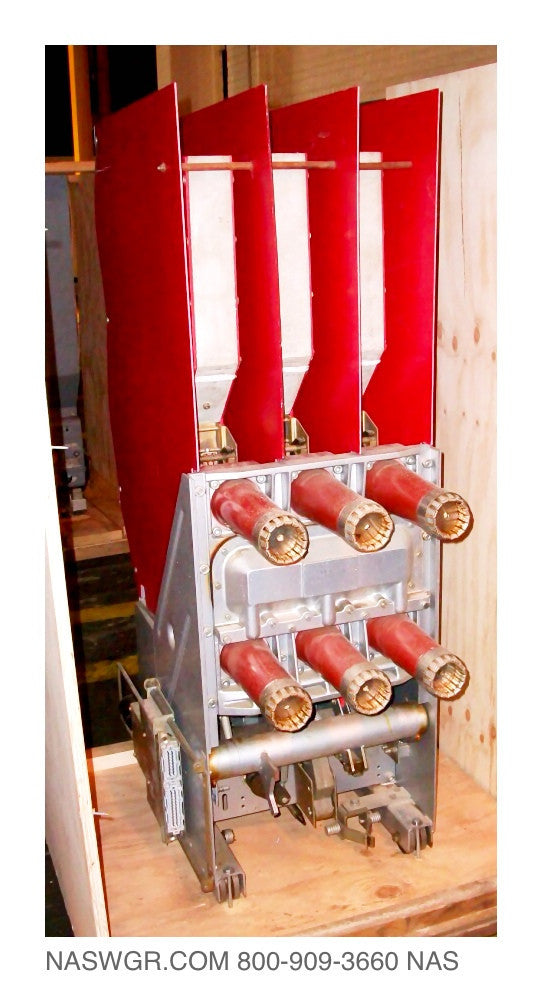

Federal Pacific DST-2-5-250 Circuit Breaker
2000 amp
250 MVA
125vDC controls
3 pole
5kV

This breaker is in good condition and is available Cleaned & Tested or Class A Reconditioned.
Meggered, Ductored and Tested with Report

Ask about our “Recondition Swapout Program”

In a pinch and need this breaker after hours? Please contact our emergency services.
216-402-0507 Mike Habeeb
216-570-2725 Mike Jordan

Looking for Federal Pacific DST-2 parts and switchgear? We have them in stock.

Click here to view our DST-2-5-250 Webpage

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725

NAS8423, NAS8424 Location: 626M/621M

North American Switchgear, Inc. is an industry leader in the sale of new, used and out-of-production industrial circuit breakers, switchgear and associated parts.  Our Cleveland, OH facility spans over 300,000 square feet and houses over 13,000 low and medium voltage circuit breakers from all major manufacturers.  Aside from the sale of circuit breakers, switchgear and replacement parts, NAS also offers equipment recondition and repair services.  For more information please visit our website at www.naswgr.com, call 800-909-3660 or email sales@naswgr.com.

 Visit our website www.naswgr.com

528109063A , Arc Chute
525023907 , Fixed arcing contact
525022102 , Moving arcing contact
525022706 , Main fixed contact
525020703 , Leading finger for moving contact
525016307 , Fixed arcing contact spring
525015505 , Rotating moving arcing contact spring
525016102 , Main fixed contact spring
525017907 , Flexible connection for fixed arcing contact
525032859 , Type AEM Mechanism
528114997A , 48vDC Shunt Close Assembly
528114887B , 115vAC Shunt Close Assembly
528114987C , 125vDC Shunt Close Assembly
528114997D , 250vDC Shunt Close Assembly
200750101 , Y-Relay Assembly
200750209 , Y-Relay Assembly
200750306 , Y-Relay Assembly
200750403 , Y-Relay Assembly
528114989D , 24vDC Shunt Trip Assembly
528114989A , 48vDC Shunt Trip Assembly
528114989B , 125vDC Shunt Trip Assembly
528114989C , 250vDC Shunt Trip Assembly
525007901 , 48 volt AC/DC Universal Spring Charging Motor with Gear Box
525008109 , 120 AC/DC Universal Spring Charging Motor with Gear Box
525008304 . 240vDC Universal Spring Charging Motor with Gear Box
525026108 , Lockout Switch 2 Pole Lockout for Internal Control
525025909 , Lockout Switch with One Extra Spare Contact
525014109 , Latch Check Switch
525014109 , Spring Limit Switch
525060004 , Main Drive Shaft
525060012 , Main Drive Shaft - Front Bearing
525060020 , Main Drive Shaft - Split Bearing Bush (R.H.)
525060039 Main Drive Shaft - Split Bearing Bush (L.H.)
525060047 , Circuit Breaker Open/Closed Mechanical Indicator
525060055 , Trip/Close Knob
525060063 , Trip/Close Knob Washer
525060071 , Trip/Close Knob Circlip
525060089 , Trip/Close Knob Return Spring
525060098 , Spring Charging Lever & Clutch Assembly
525060101 , Spring Charging Lever Return Spring
525060119 , Return Spring Anchor Pin
525060128 , Anchor Pin Nut - Hexagon
525060136 , Lockwasher
525060144 , Spring Charging Shaft
525060152 , Spring Charging Shaft - Front Bearing
525060160 , Spring Charging Shaft - Rear Bearing
525060179 , Washer
525060187 , Cotter
525060195 , Springs Charged/Discharged Indicator
525060209 , Indicator Bearing Bush
525060217 , Indicator Return Spring
525060225 , Indicator Retaining Circlip
525060233 , Intermediate Driver Lever
525060241 , Needle Bearing
525060259 , Washer
525060268 , Retaining Circlip
525060276 , Crank Shaft Link Pin
525060284 , Indicator Drive Pin
525060292 , Self Locking Nut
525060306 , Spring Drive Link Pin
525060314 , Washer
525060322 , Cotter
525060330 , Support Bearing
525060349 , Support Bearing  Screw (quantity 2)
525060357 , Hex Nut for Item 35 (quantity 2)
525060365 , Locking Plate (quantity 2)
525060373 , Locking Plate (quantity 1)
525060381 , Crank Shaft Assembly
525060399 , Crank Shaft Front Bearing
525060403 , Crank Shaft Front Bearing Housing
525060411 , Crank Shaft Rear Bearing
525060429 , Shim Washer
525060438 , Retaining Circlip
525060446 , Eccentric Pin
525060357 , Hex Nut
525060454 , Lockwasher
525060462 , Ratchet Pawl
525060470 , Ratchet Pawl - Return Spring
5250604489 , Ratchet Pawl - Pivot Pin
525060497 , Pivot Pin Lockout
525060454 , Lockwasher
525060500 , Chain Wheel
525060519 , Chain
525060527 , Sprocket
525060535 , Washer
525060543 , Drive Lever
525060551 , Drive Lever Spacer
525060535 , Drive Lever Shim Washer
525060569 , Spring Latch Prop
5250605578 , Spring Latch Prop - Return Spring
525060586 , Spring Latch Prop - Shim Washer
525060594 , Spring Latch Lever
525060608 , Roller Bearing
525060616 , Roller Bearing Clip
525060624 , Latch Lever Circlip
525060632 , Tripping Toggle & Latch Assembly
525060640 , Tripping Toggle Reset Springs (Quantity 2)
525060659 , Spring Anchor Pin
525060667 , Spring Anchor Pin Nut
525060136 , Lockwasher
525060675 , Link Pin
525060322 , Cotter (quantity 2)
525060683 , Washer (Quantity 2)
525060691 , Pivot Pin
525060705 , Pivot Pin Circlip
525060713 , Latch Check Switch Mounting Bracket
525060721 , Latch Striking Lever
525060739 , Switch Operator
525060616 , Circlip
525060748 , Adjusting Screw
525060756 , Hex Nut for Item 81
525060764 , Lockwasher
525060772 , Switch Operator Return Spring
525060780 , Switch Element
525060799 , Insulation Plate
525060802 , Screws (quantity 2)
525060810 , Locking Plate
525060756 , Mounting Spring Trip Shaft (quantity 2)
525060829 , Locking Plate
525060837 , Pedal Operated Trip Shaft
525060845 , Front Bearing Bush
525060853 , Rear Bearing Bush
525060861 , Retaining Circlip
525060879 , Limit Switch Frame
525060888 , Limit Switch Support
525060896 , Pin
525060609 , Cotter (quantity 2)
525060918 , Adjusting Screw
525060926 , Adjusting Screw - Lockwashers (quantity 2)
525060934 , Adjusting Screw - Lock Nut
525060942 , Switch Element (quantity 2)
525060950 , Insulation Plates (quantity 3)
525060969 , Switching Fixing Screws (quantity 2)
525060977 , Spacer (quantity 4)
525060985 , Locknuts for item 104 (quantity 2)
525060993 , Spring
525061000 , Spring Guide
525061019 , Spring Guide Support Bracket
525061027 , Fixing Screws for Item 96 (quantity 2)
525061035 , Lockwashers (quantity 2)
525061043 , Fixing Screw for Item 109
525061051 , Locking Plate
525061069 , Close Lever
525061078 , Trip Lever
525060705 , Retaining Clip for Item 115
525060861 , Trip Paddle
525060942 , Trip Paddle - Return Spring
525061108 , Washers (quantity 3)
525060616 , Circlips (quantity 3)
525061116 , Drive Lever Stop
525061124 , Shock Absorber Pad for Item 121
525061132 , Shock Absorber Washer For Item 121
525061140 , Plain Washers For Item 121 (quantity 2)
525061159 , Selok Pin For Item 121
525061167 , Spring Discharge Shock Absorber Striker Plate
525061175 , Spring Discharge Shock Absorber Pad
525061183 , Packers For Item 127 (quantity 2)
525061191 , Locating Screw For Item 126
525061205 , Hex Nut For Item 129
525061213 , Lockwasher
525061221 , Mechanical Plate Fixing Screws (quantity 10)
525060497 ,  Hex Nut For Item 132 (quantity 8)
525060454 , Lockwasher (quantity 8)
505061239 , Mechanical Cover Fixing Screws (quantity 2)
525060454 , Lockwasher (quantity 2)
525061248 , Spring Discharge Lever
525061256 , Spring Discharge Lever - Return Spring
525061108 , Plain Washers (quantity 2)
525060616 , Circlips (quantity 2)
525061264 , Closing Springs Assembly
525061272 , Link
525061280 , Link Pin
525061299 , Washers (quantity 2)
525060322 , Cotter
525061302 , Mechanical Front Plate

C-3-443

Contact us for any questions regarding these part numbers. Reference guides available upon request. Email sales@naswgr.com
