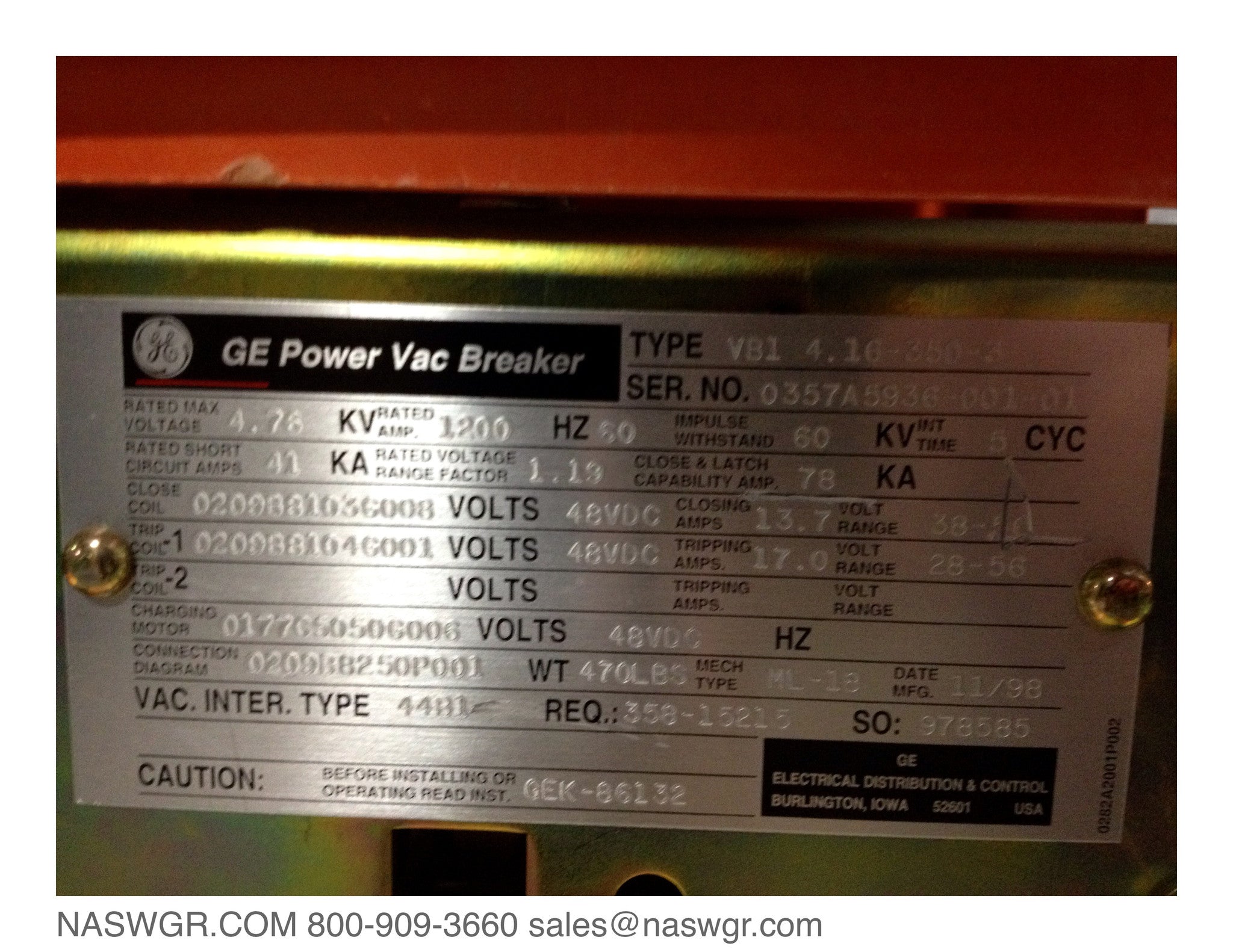

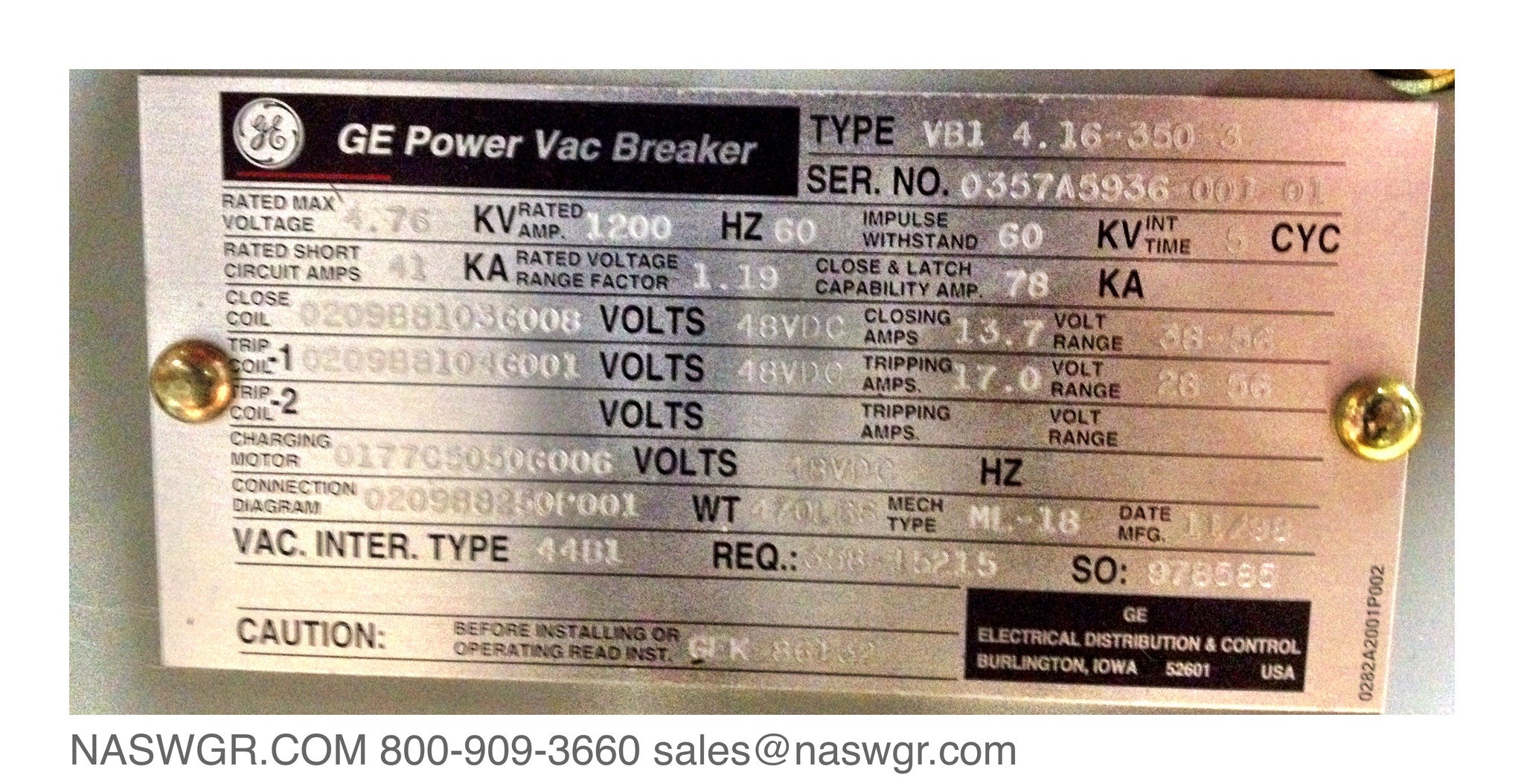

VB1 4.16-350-3

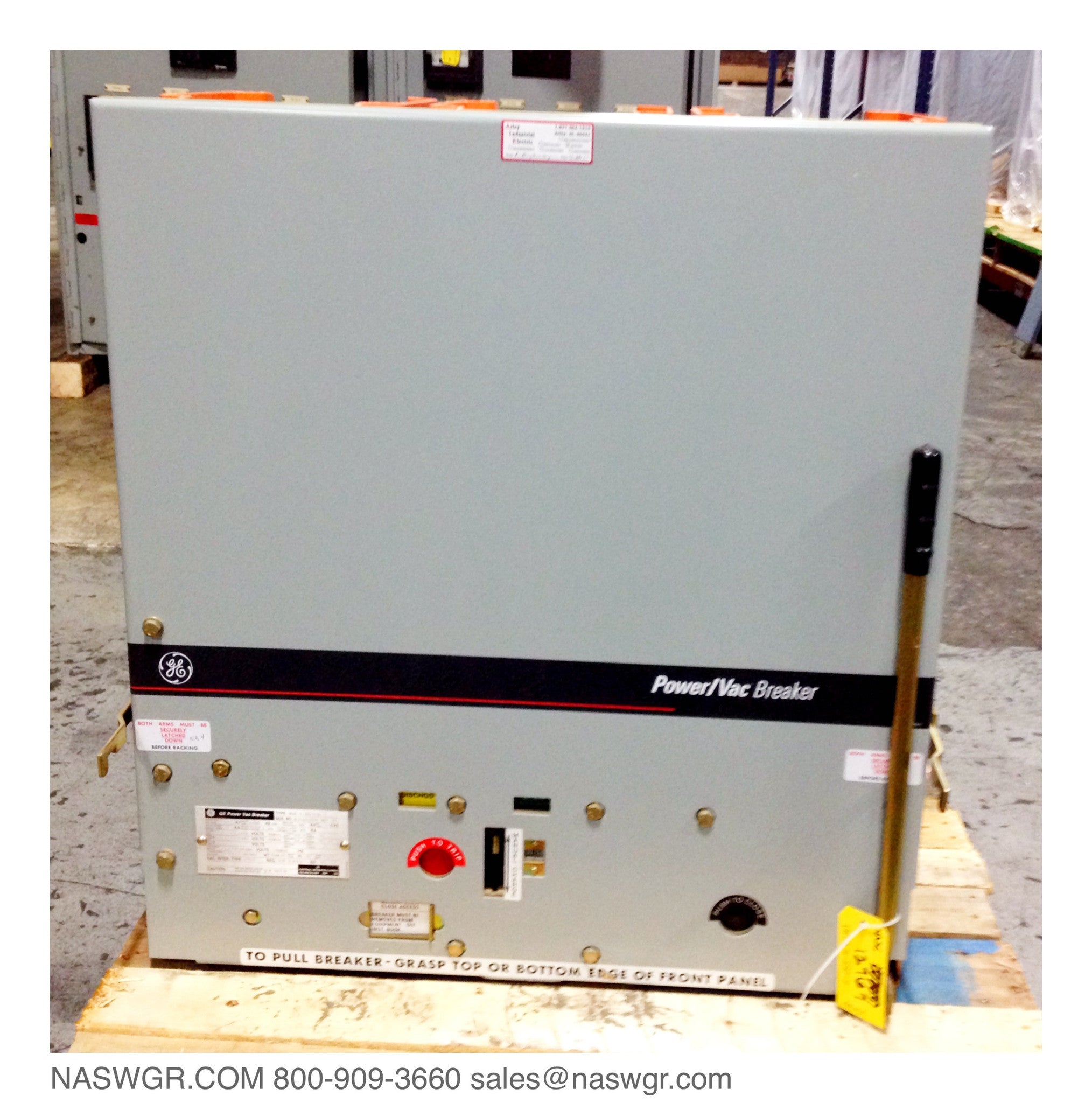

GE PowerVac Breaker

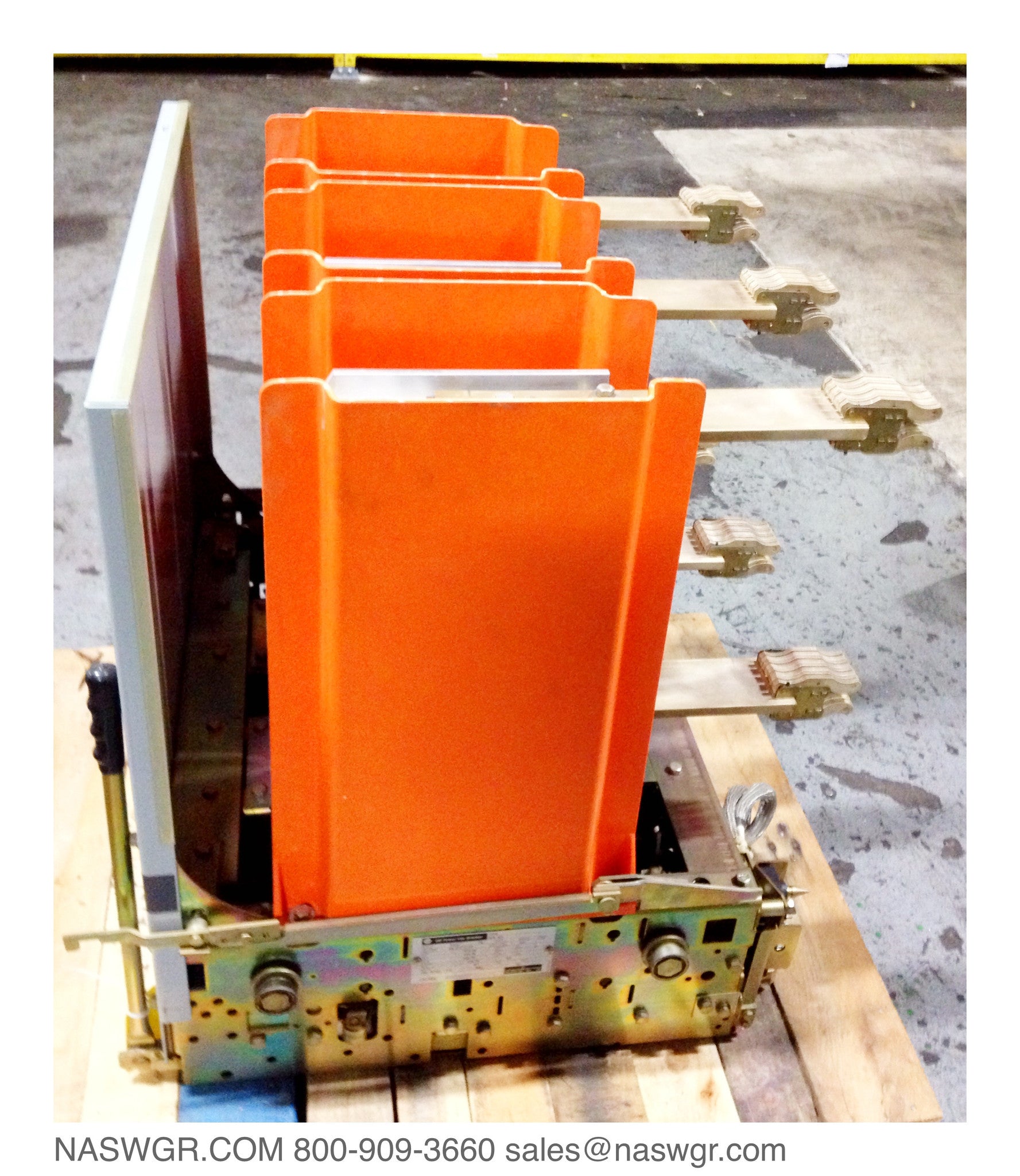

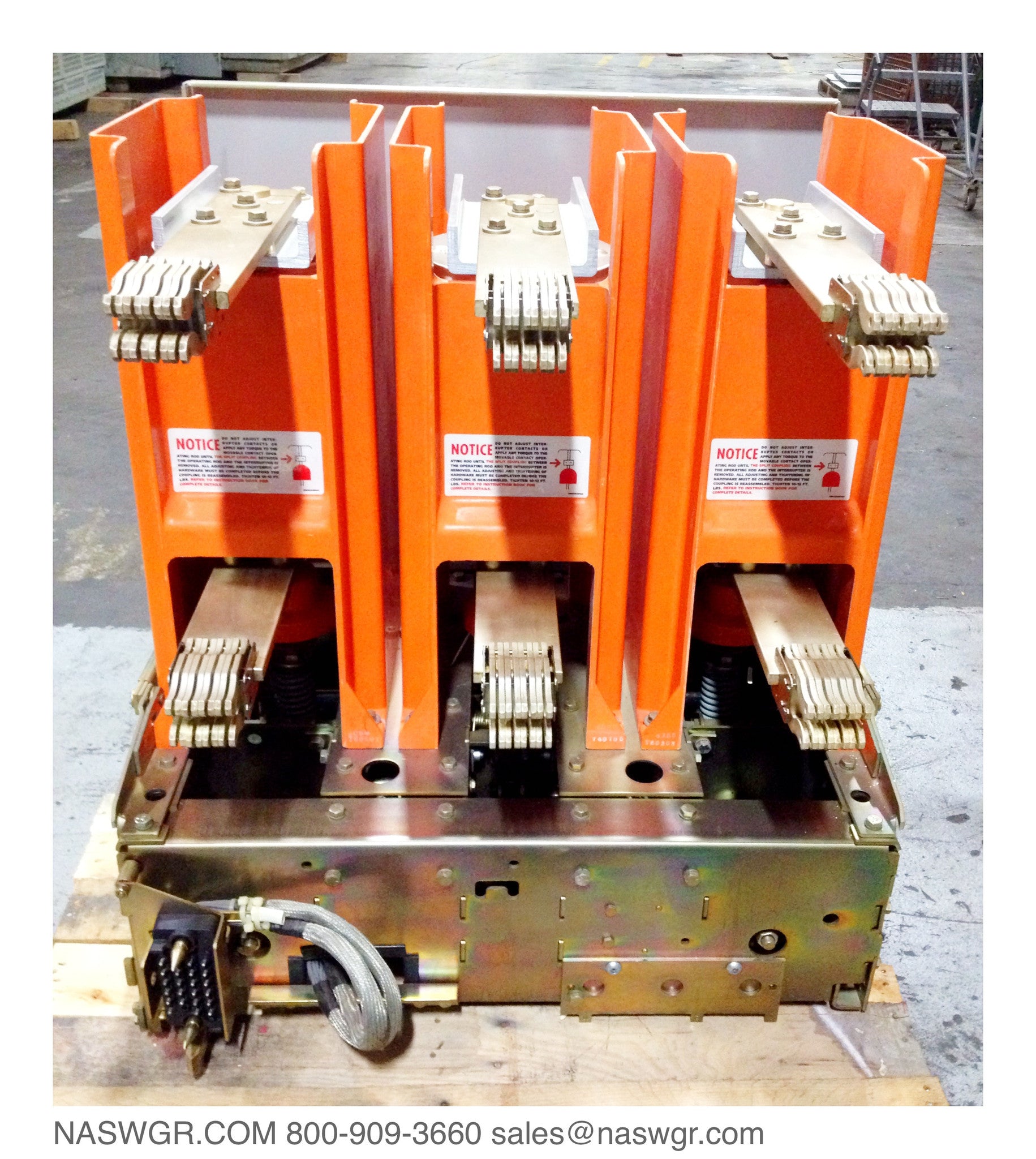

VB1 4.16-350-3 Circuit Breaker
VB1-4.16-350-3 Vacuum Circuit Breaker
1200 amp
350 MVA
5kV
3 Pole
0209B8103G008 ~ Close Coil 48vDC
0209B8104G001 ~ Trip Coil 48vDC
0177C5050G006 ~ 48vDC Charging Motor
Connection Diagram ~ 0209B8250P001

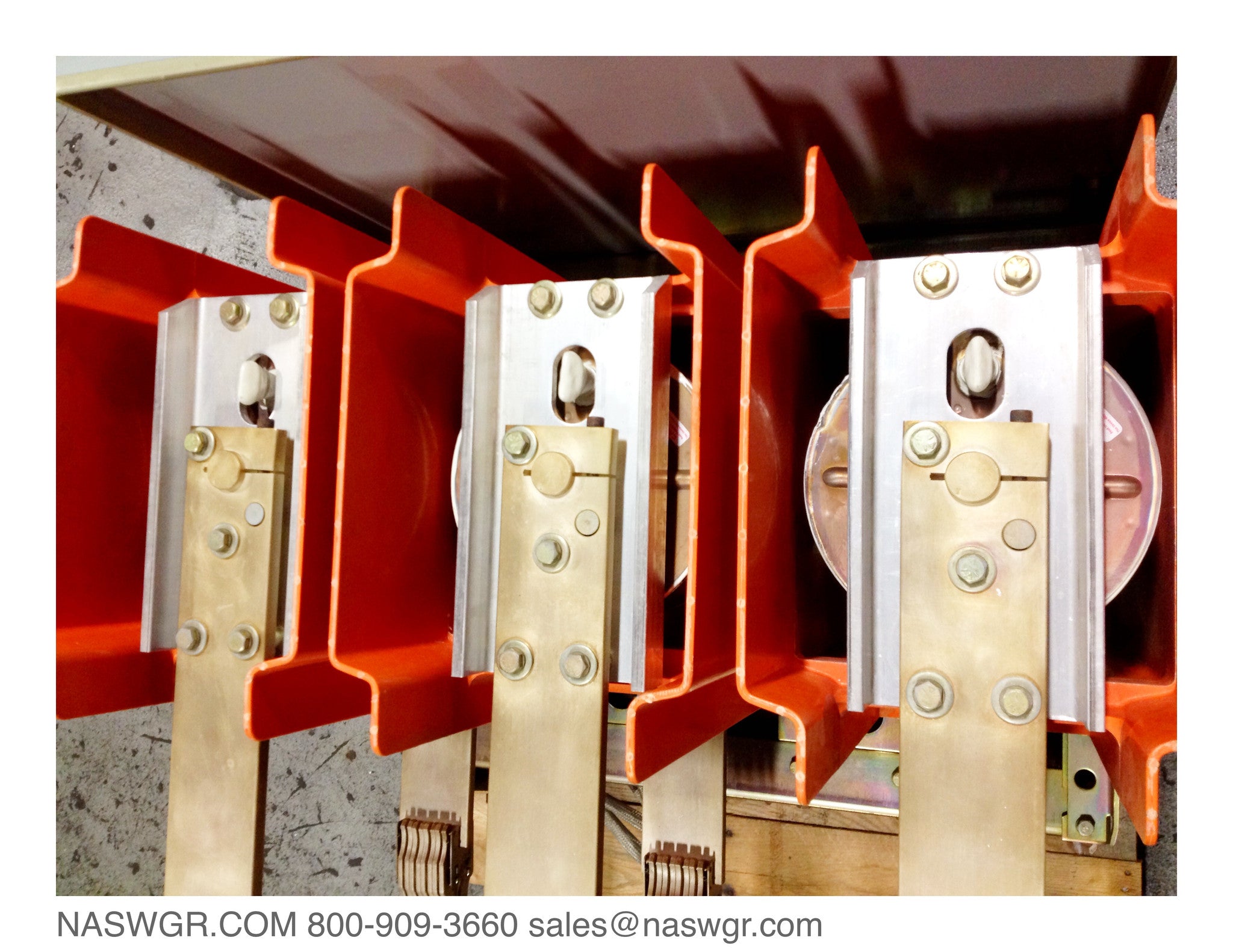

44B1 Vacuum Interrupter Type
GEK-86132 Manual
560Lbs
ML-18 Mechanism
Close & Latch 78kA
Rated Short Circuit 41kA
Built in 11/98
Available Cleaned & Tested or Class A Reconditioned

We always Hi-Pot the bottles

NAS has loose VB1 Parts, VB1 Switchgear and complete GE VB1 Switchgear Lineups.

Need different controls on this breaker? No Problem, submit it with your email and we will give you a quote.

NAS will Megger, Ductor, Hi-Pot and Electrically Operate each VB1 4.16-350 1200 amp breaker. They will come with a test report and backed by our 1 year warranty.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725

NASG12769, NASG16155, NASG16159
