PCE-20-P1-E0-C5-XA-F60-W0-Z0-A2-G0

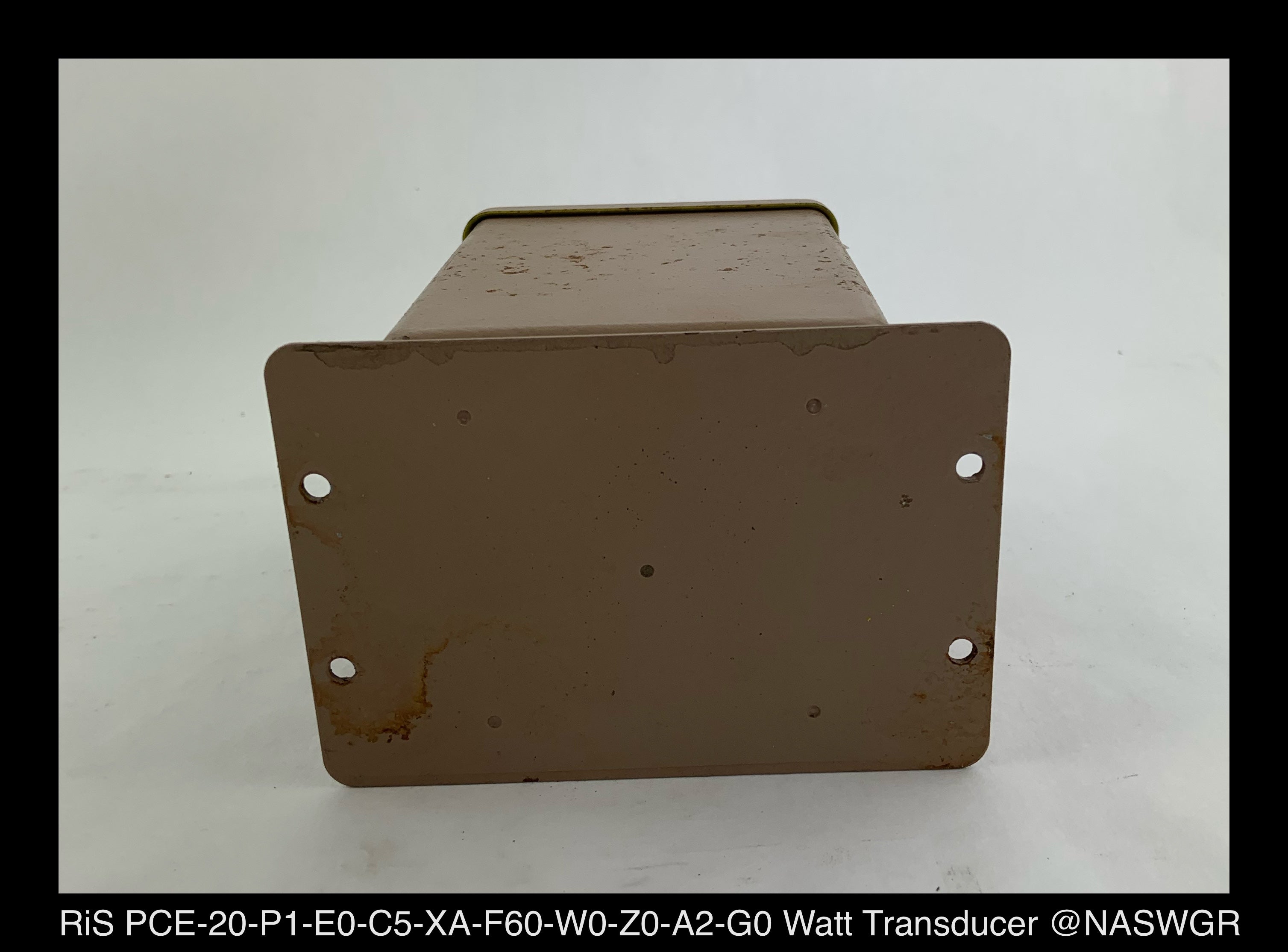

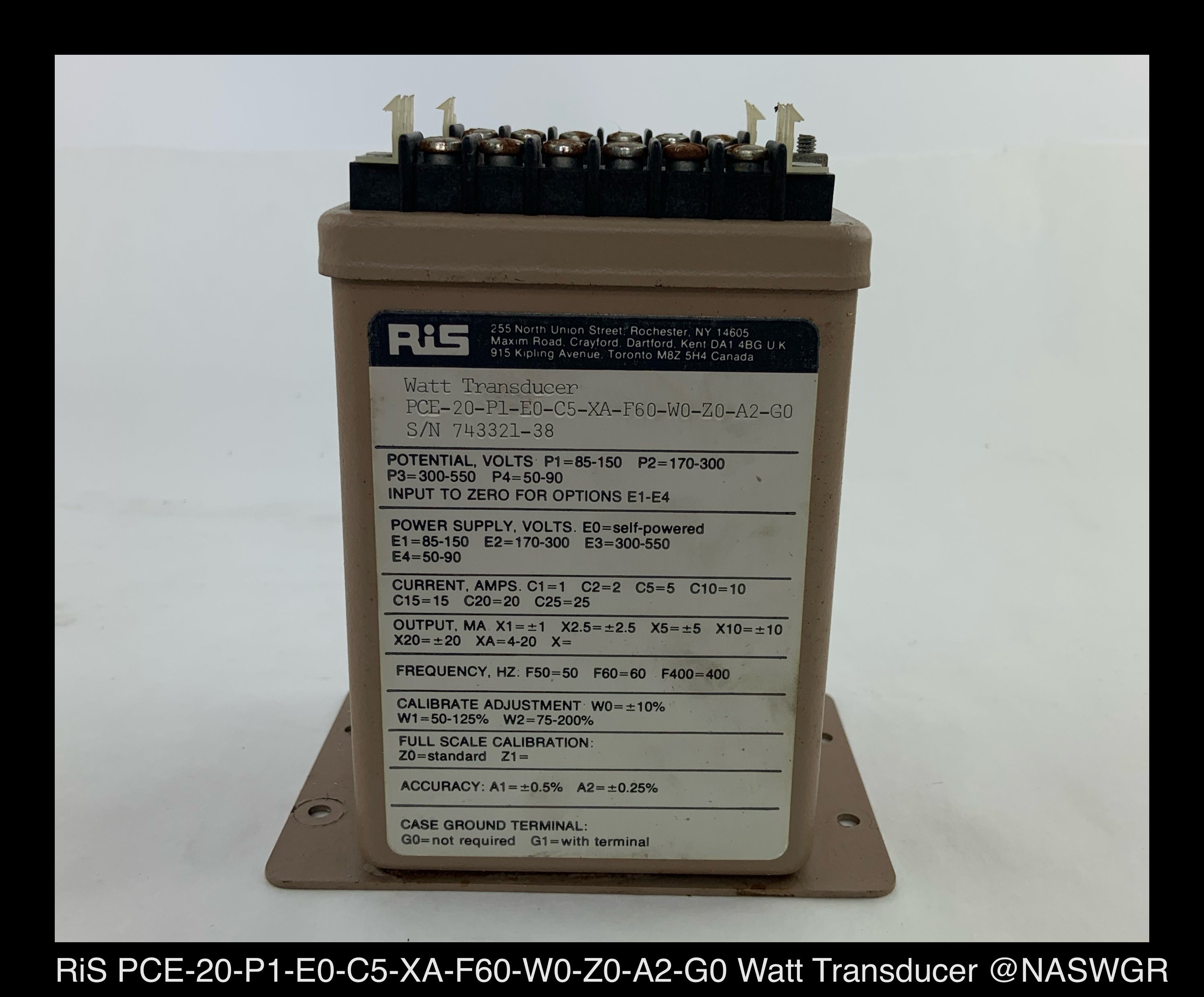

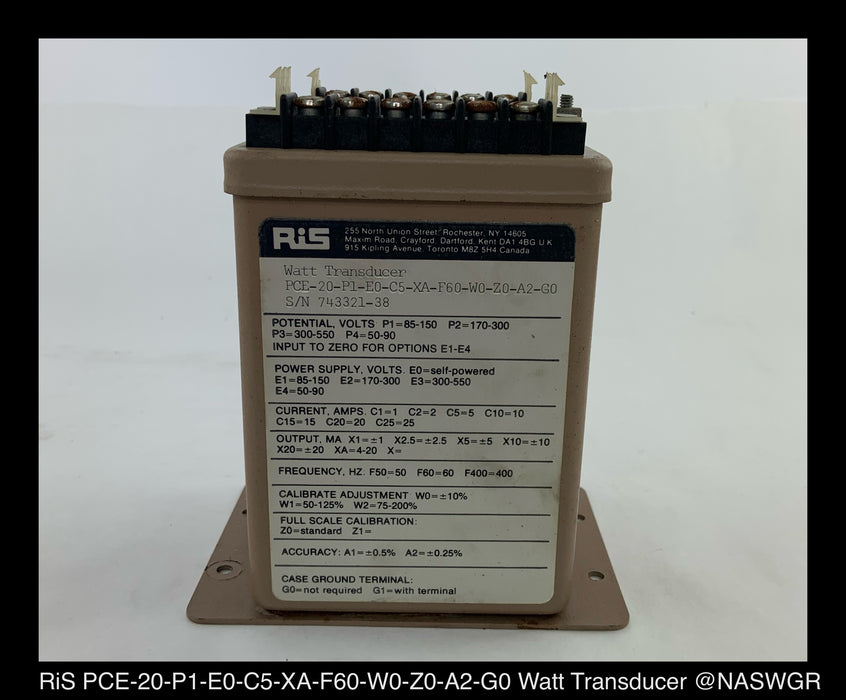

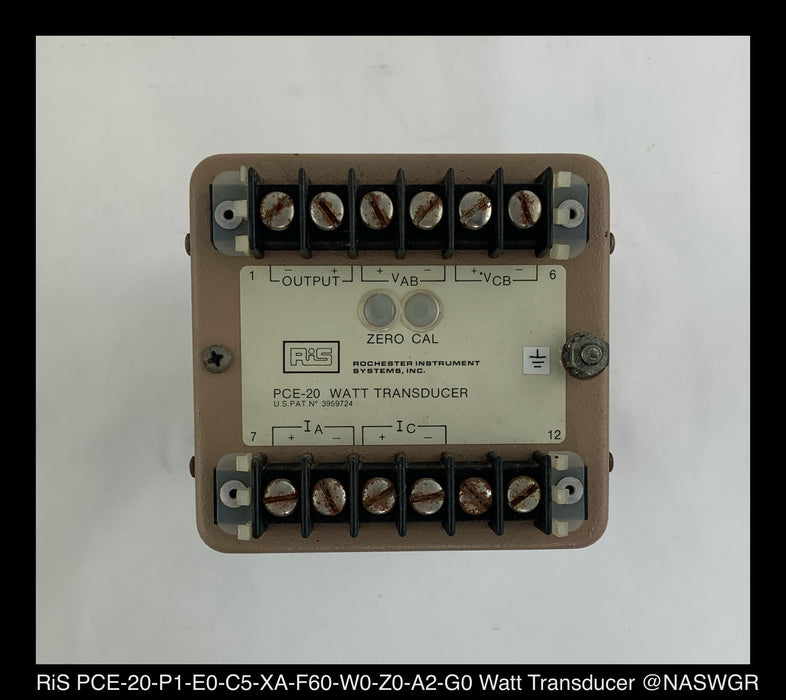

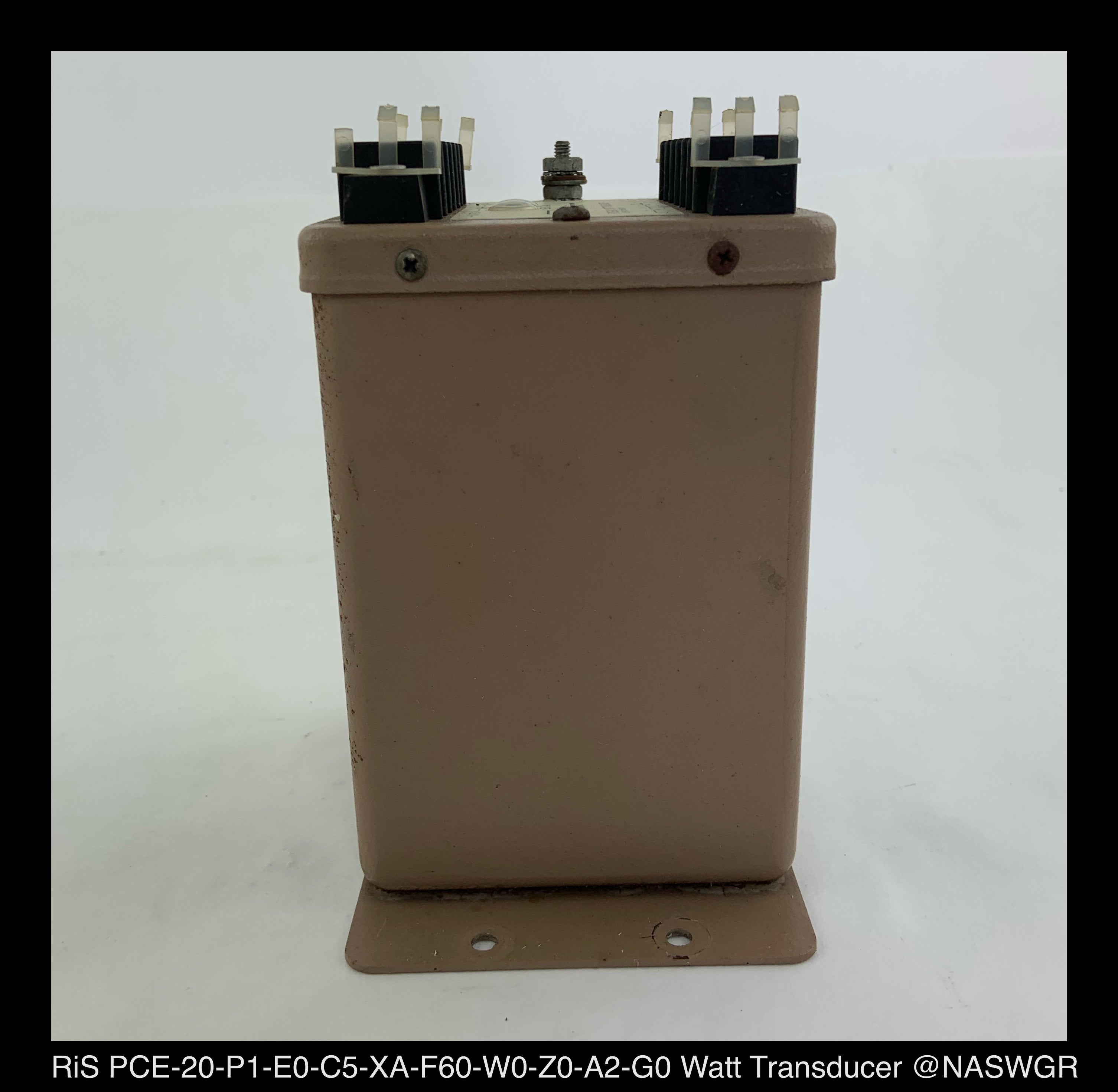

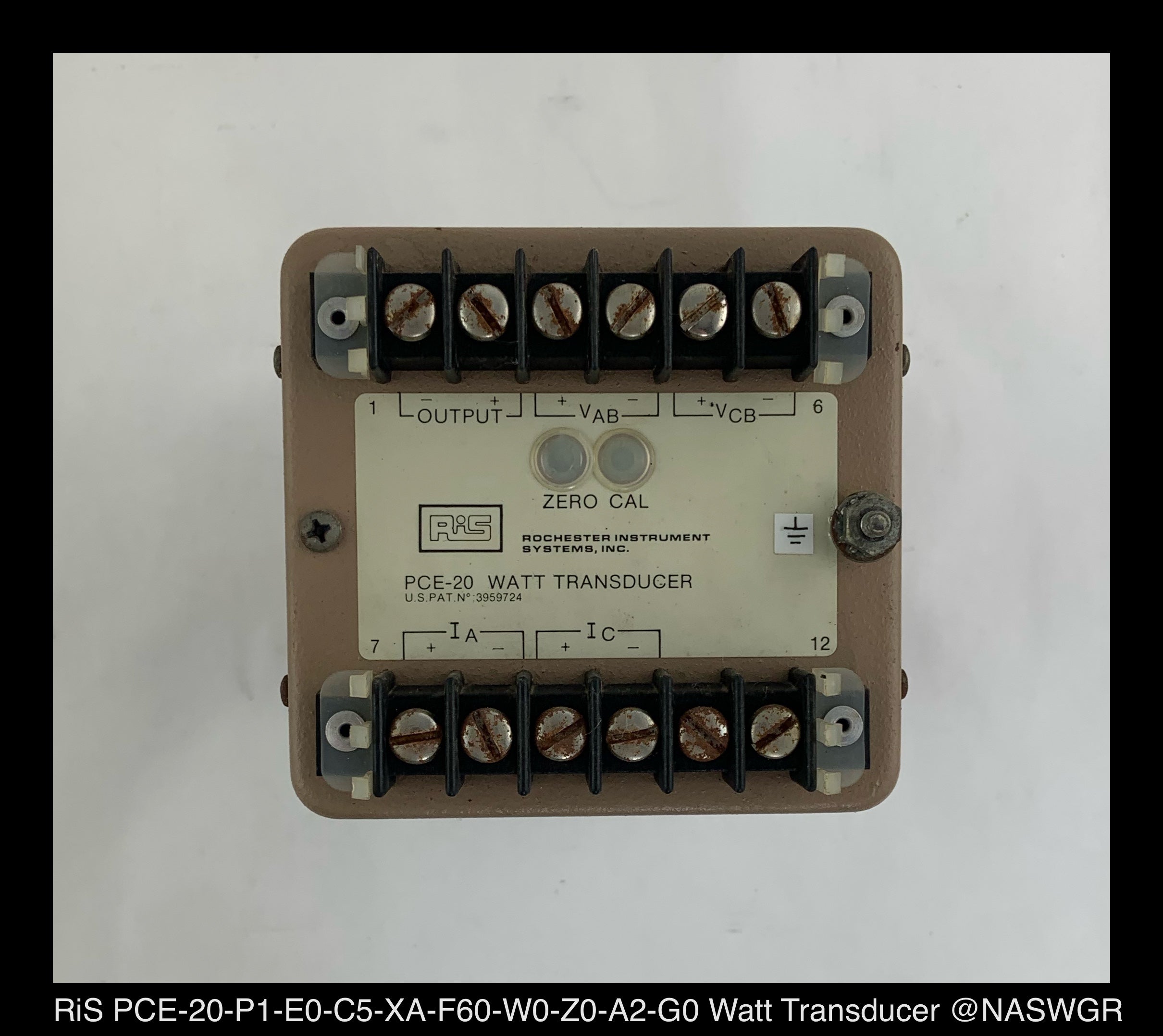

RIS Watt Transducer
CAT#: PCE-20-P1-E0-C5-XA-F60-W0-Z0-A2-G0
Serial#: 743321-38
Potential Volts: P1=85-150 , P2=170-300 , P3=300-550 , P4=50-90
                         Input to Zero for Options= E1-E4
Power Supply Volts: E0=Self Powered , E1=85-150 , E2=170-300 , E3=300-550 ,                                             E4=50-90
Current Amps: C1=1 , C2=2 , C5=5 , C10=10 , C15=15 , C20=20 , C25=25
Output MA: X1= +/-1 , X2.5= +/-2.5 , X5= +/-5 , X10= +/-10 , X20= +/-20 , XA=4-20
Frequency Hz: F50=50 , F60=60 , F400=400
Calibrate Adjustment: W0= +/-10% , W1= +/-50-125% , W2= +/-75-200%
Full Scale Calibration: Z0=Standard
Accuracy: A1= +/-0.5% , A2= +/-0.25%
Case Ground Terminal: G0= Not Required , G1= With Terminal

Each PCE-20-P1-E0-C5-XA-F60-W0-Z0-A2-G0 is Cleaned, Tested with Report, and Carries our One Year Warranty.

Standard lead time (1-3) days prior to shipping. If item is needed sooner please call or email.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725

NASPG18256-(3-4) ~ 6202B
NASPG42895 ~
NASPG31605 ~ SNAS5482-2
NASPG31626 ~ SNAS5479-2
NASPG33701 ~ SNAS5887-3
