15-GMI-750-1200-58

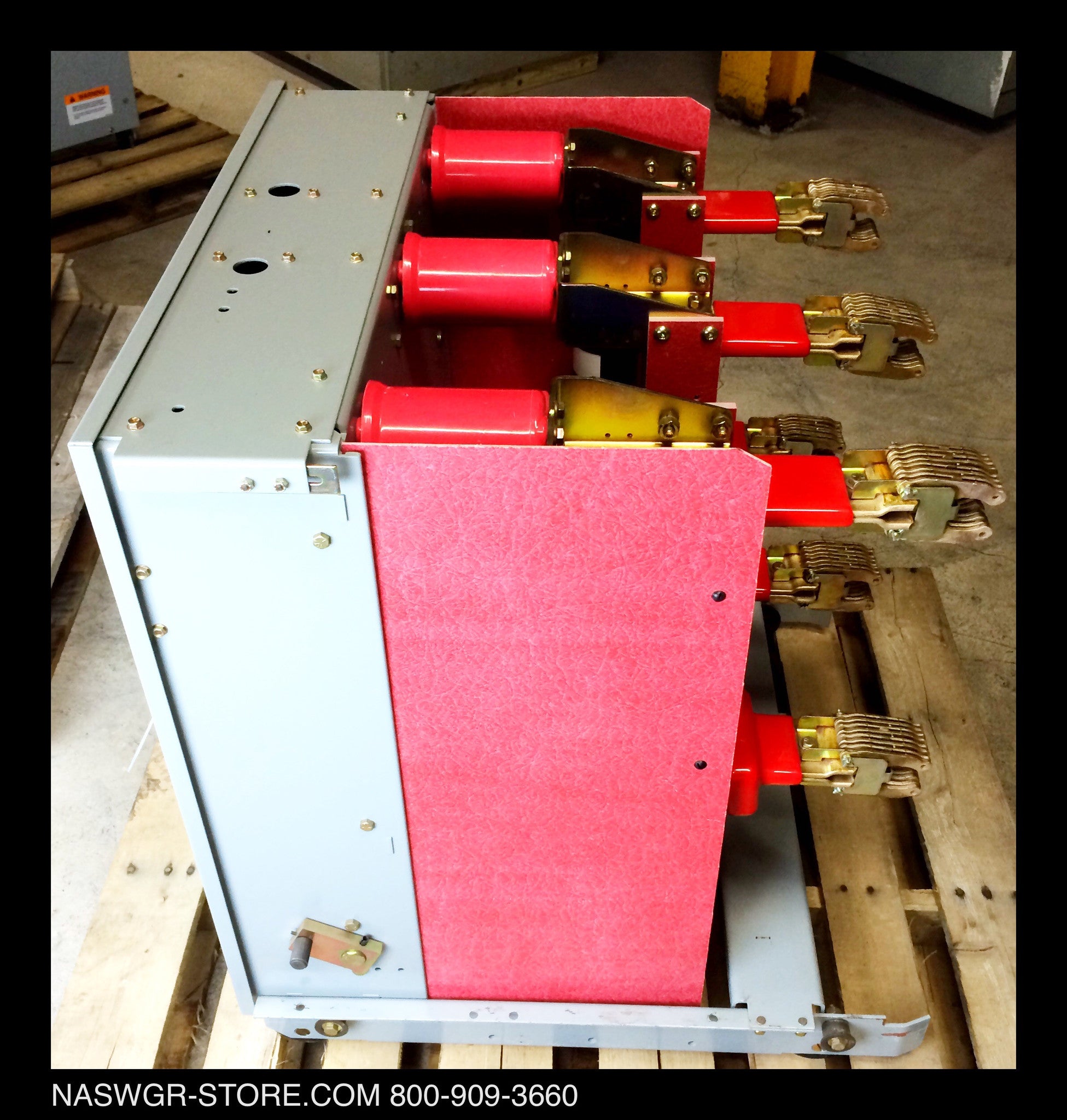

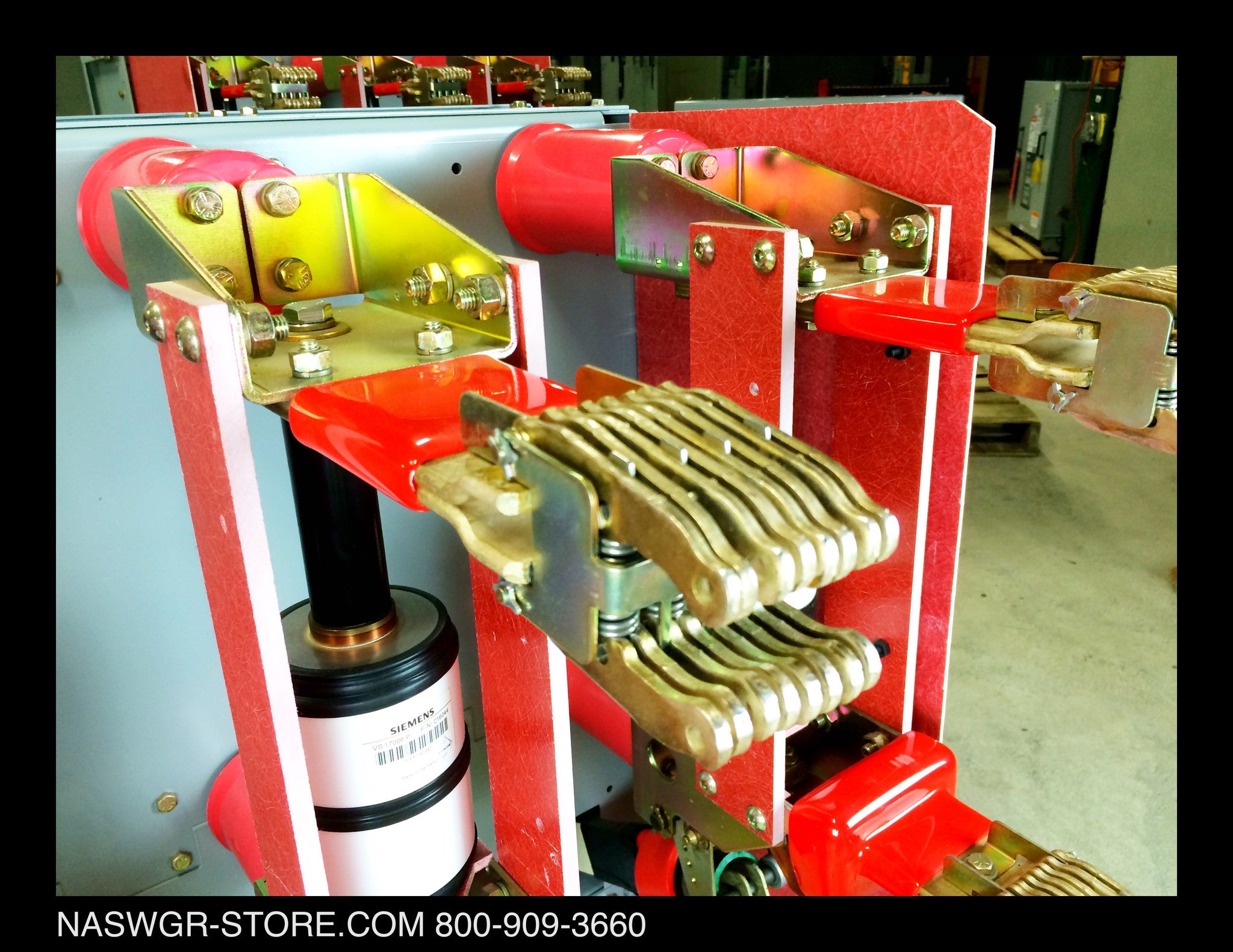

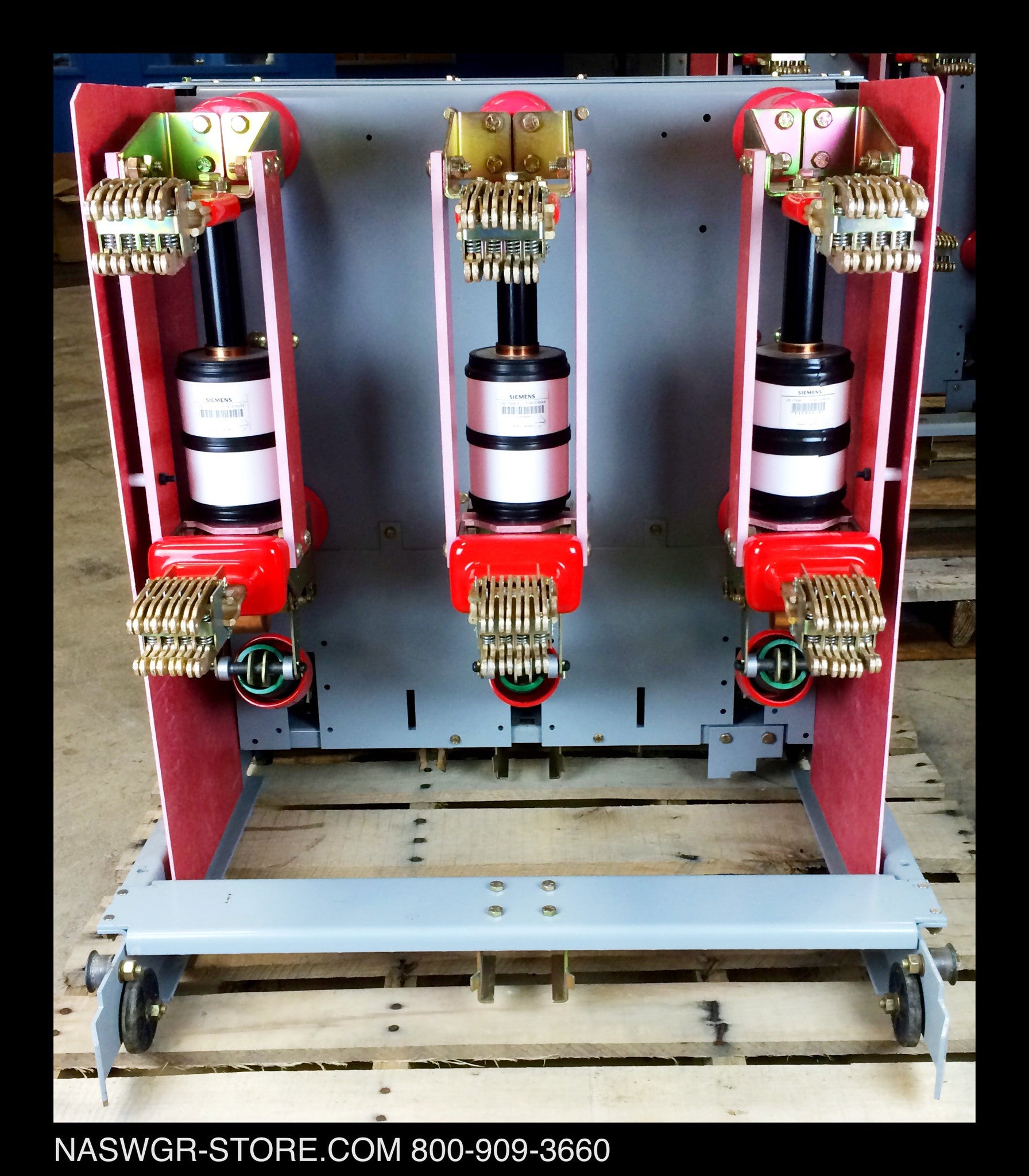

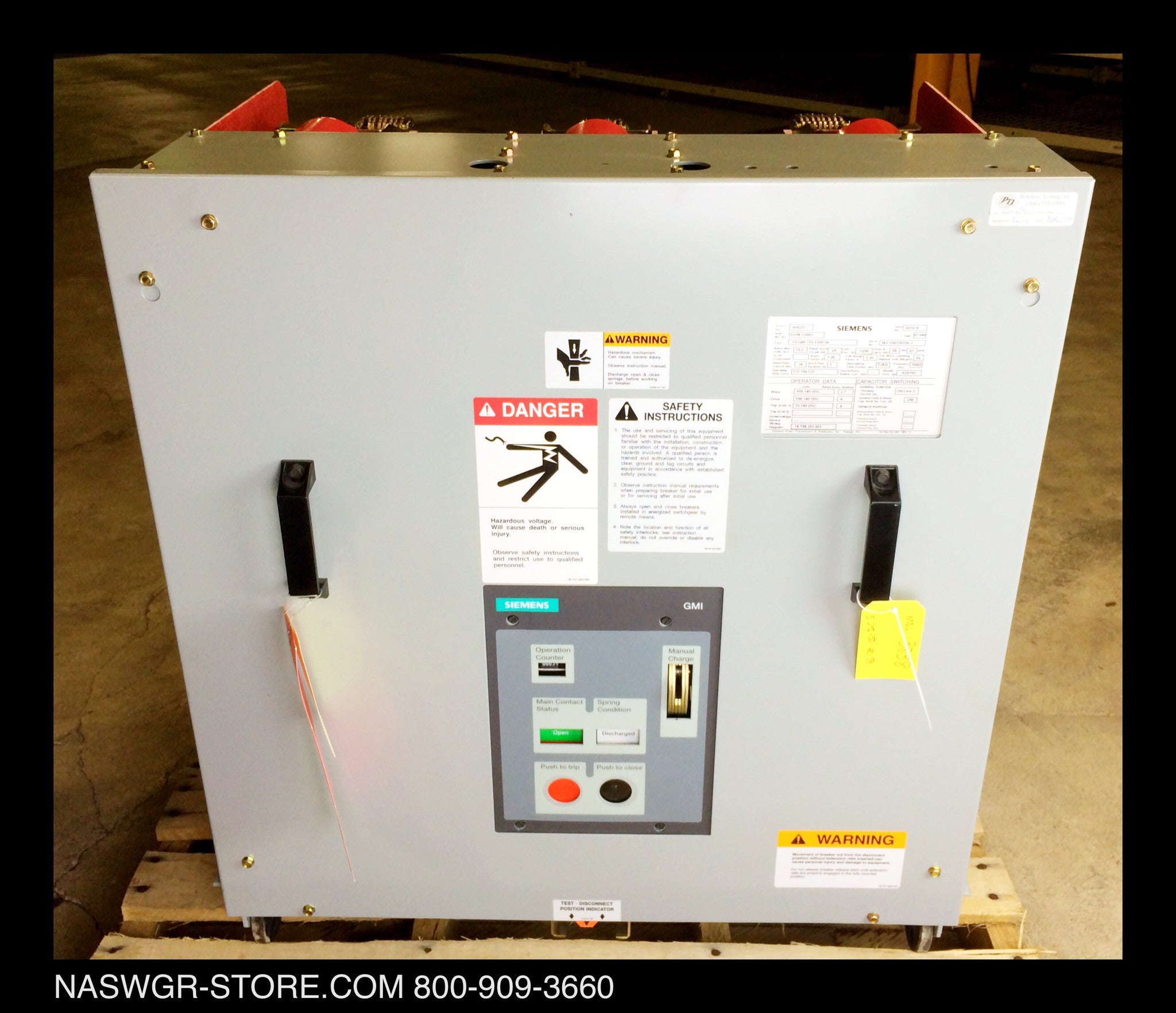

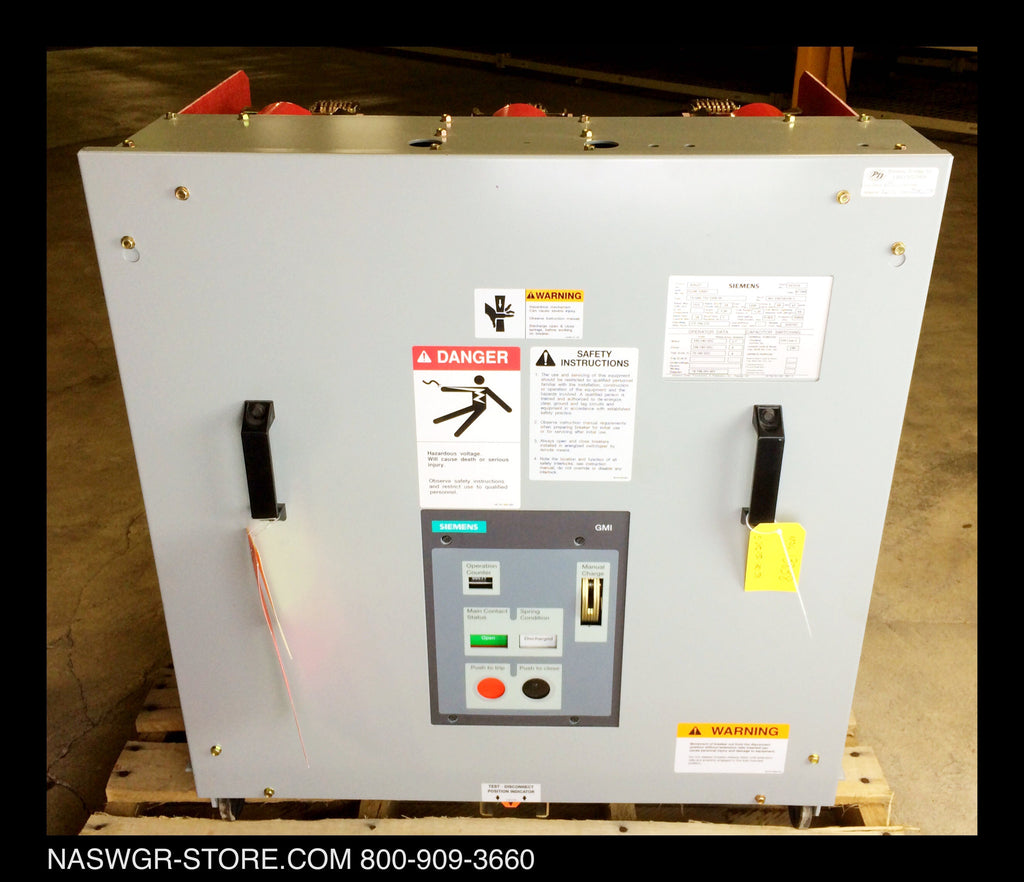

Siemens 15-GMI-750-1200-58 AC High Voltage Circuit Breaker
1200 Amp
Electrically Operated
Drawout

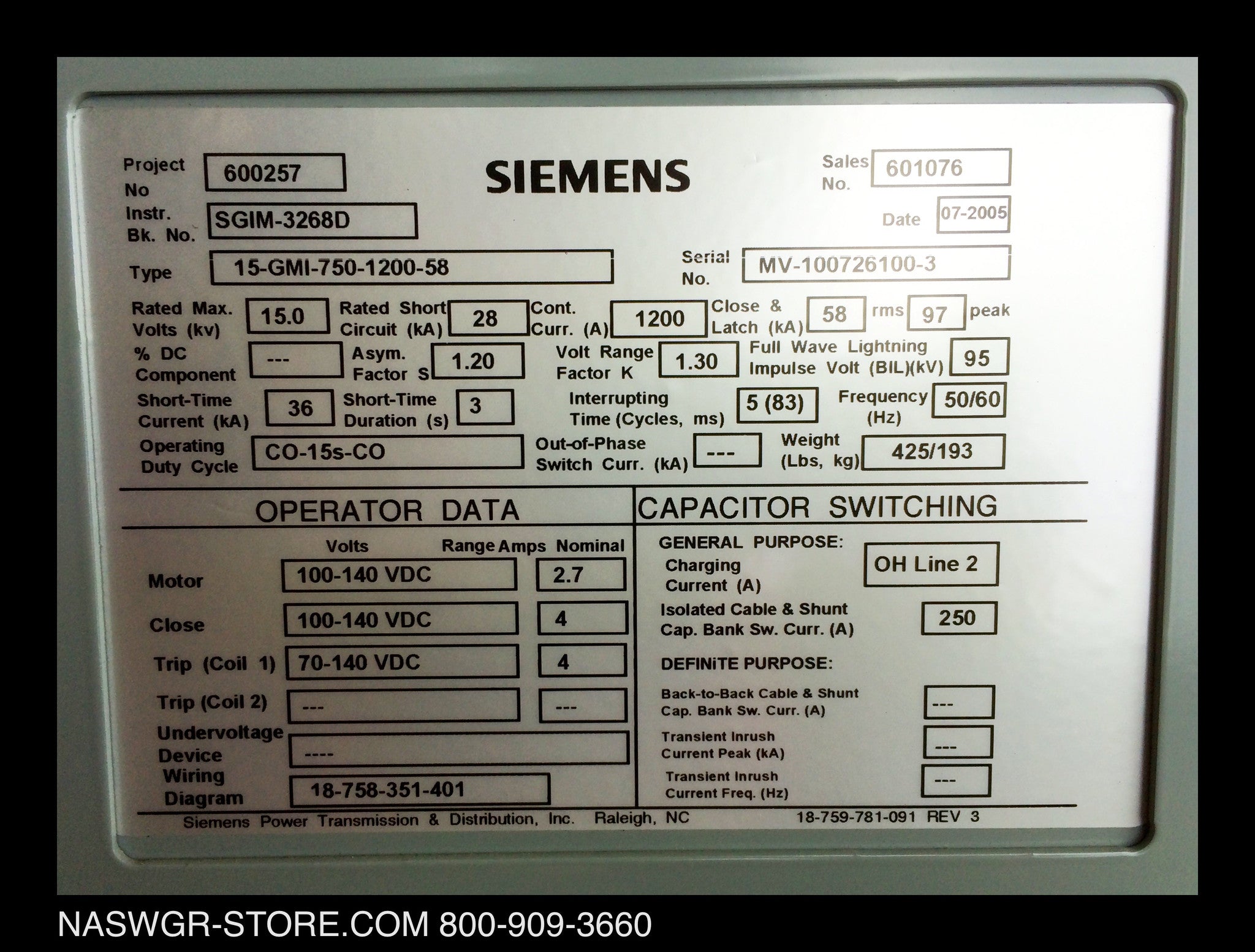

Instr. Bk. No. SGIM-3268D
Type: 15-GMI-750-1200-58
Rated Max. Volts KV 15.0
Rated Short Circuit kA 28
Short Time Current kA 36
Short Time Duration 3
Cont. curr. A 1200
Close & Latch kA 58 rms 97 peak
Volt Range Factor K 1.30  Full wave Lightning Impulse Volt BIL  kV 95
50/60 Hz.

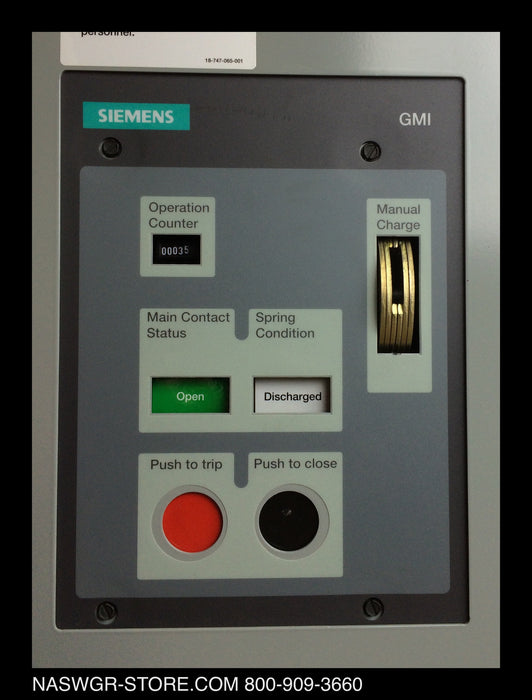

Operator Data
Motor: 100-140 VDC           Range Amps Nominal 2.7
Close: 100-140 VDC           Range Amps Nominal 4
Trip Coil 1: 70-140 VDC    Range Amps Nominal  4
Wiring Diagram 18-758-351-401

*NAS can match your control voltage*

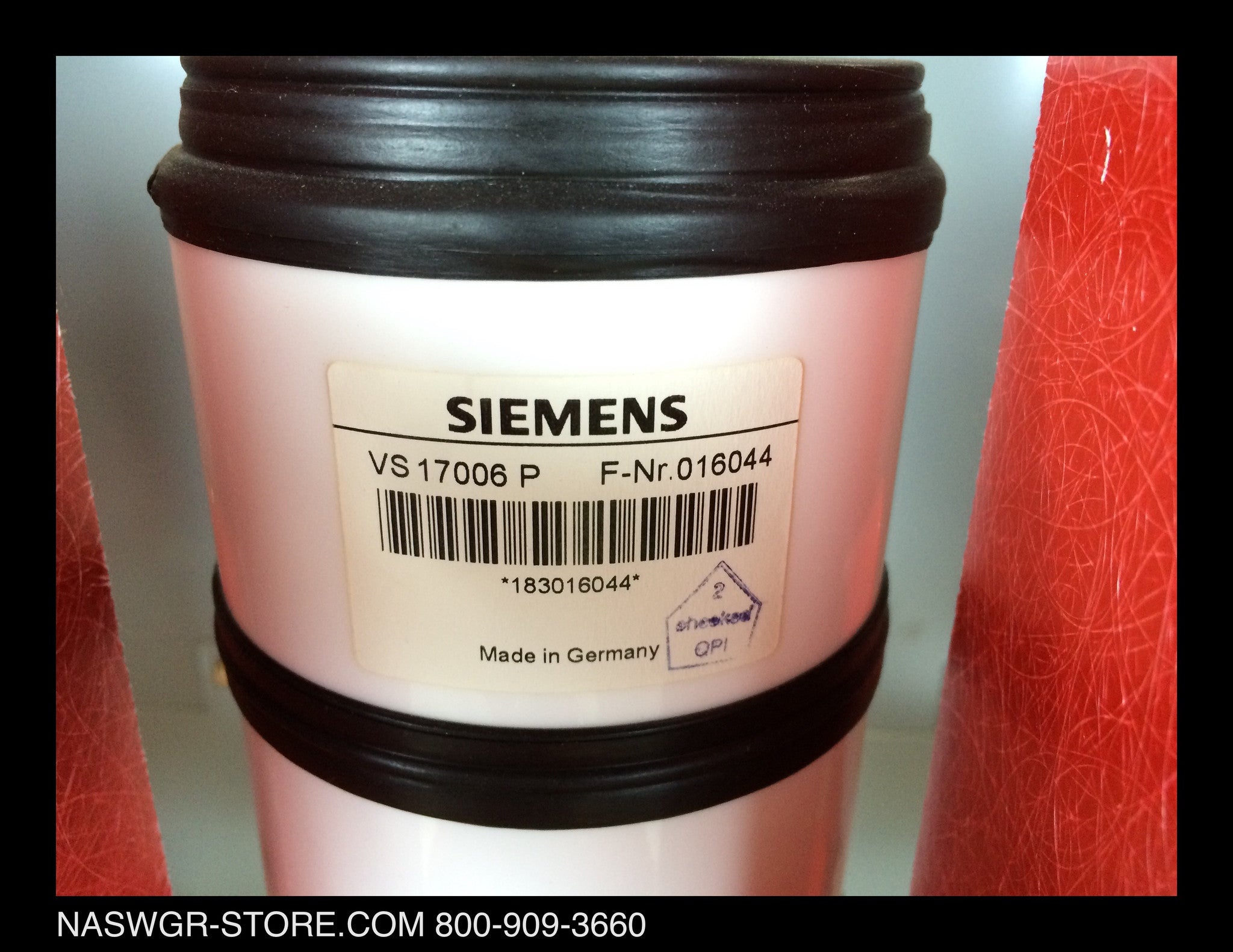

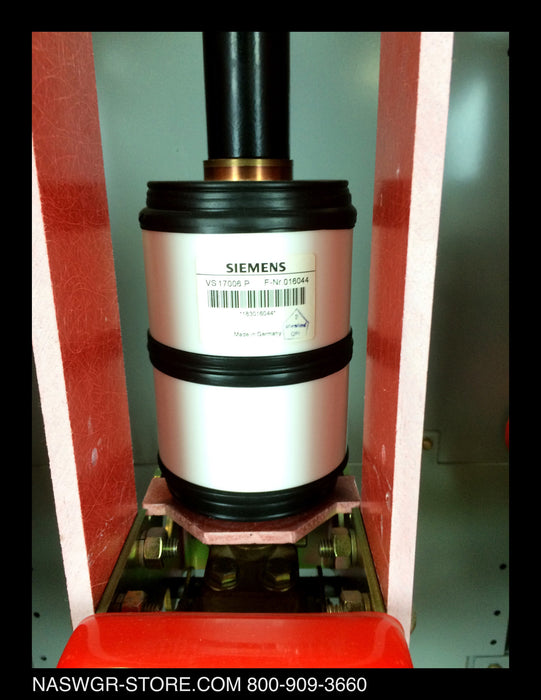

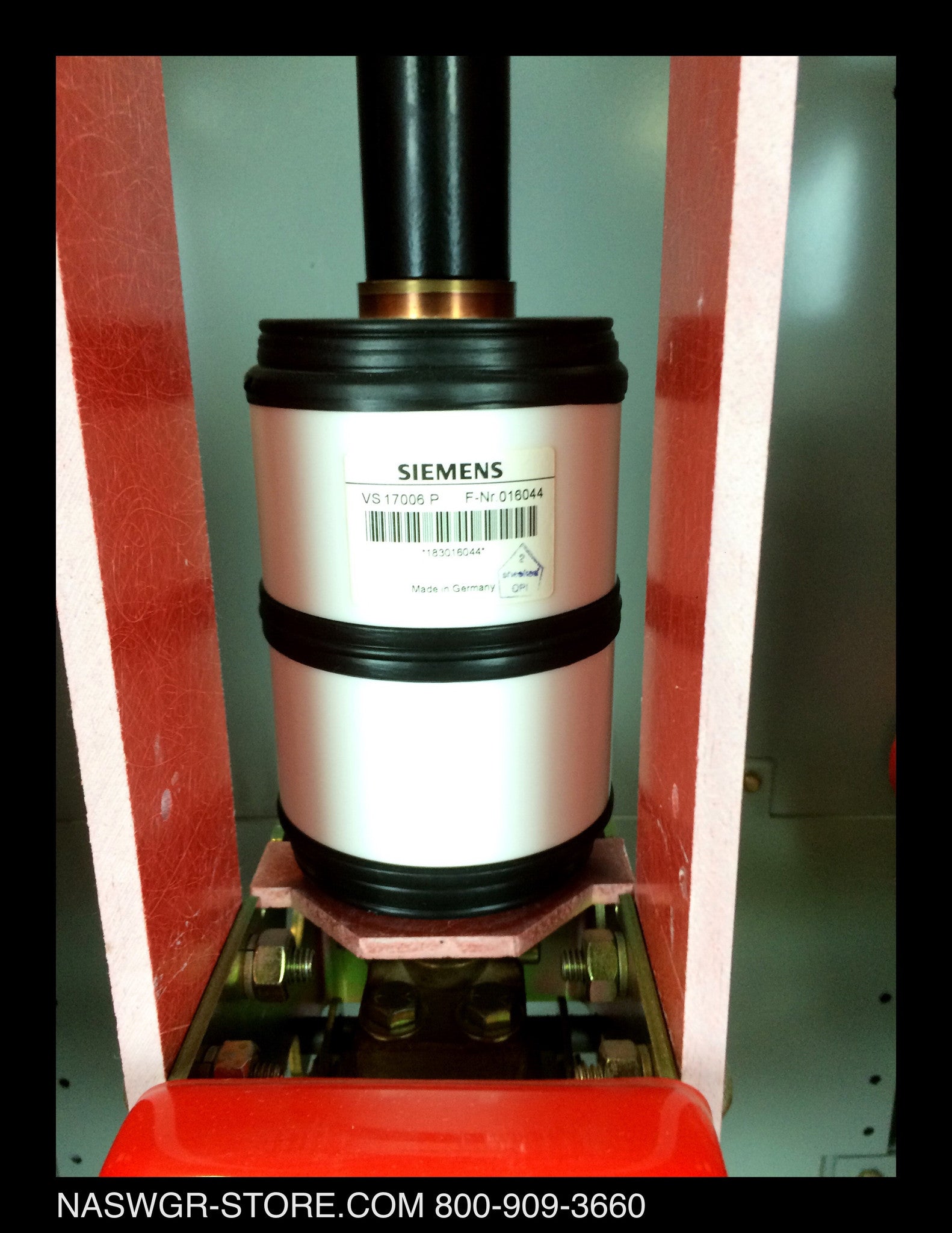

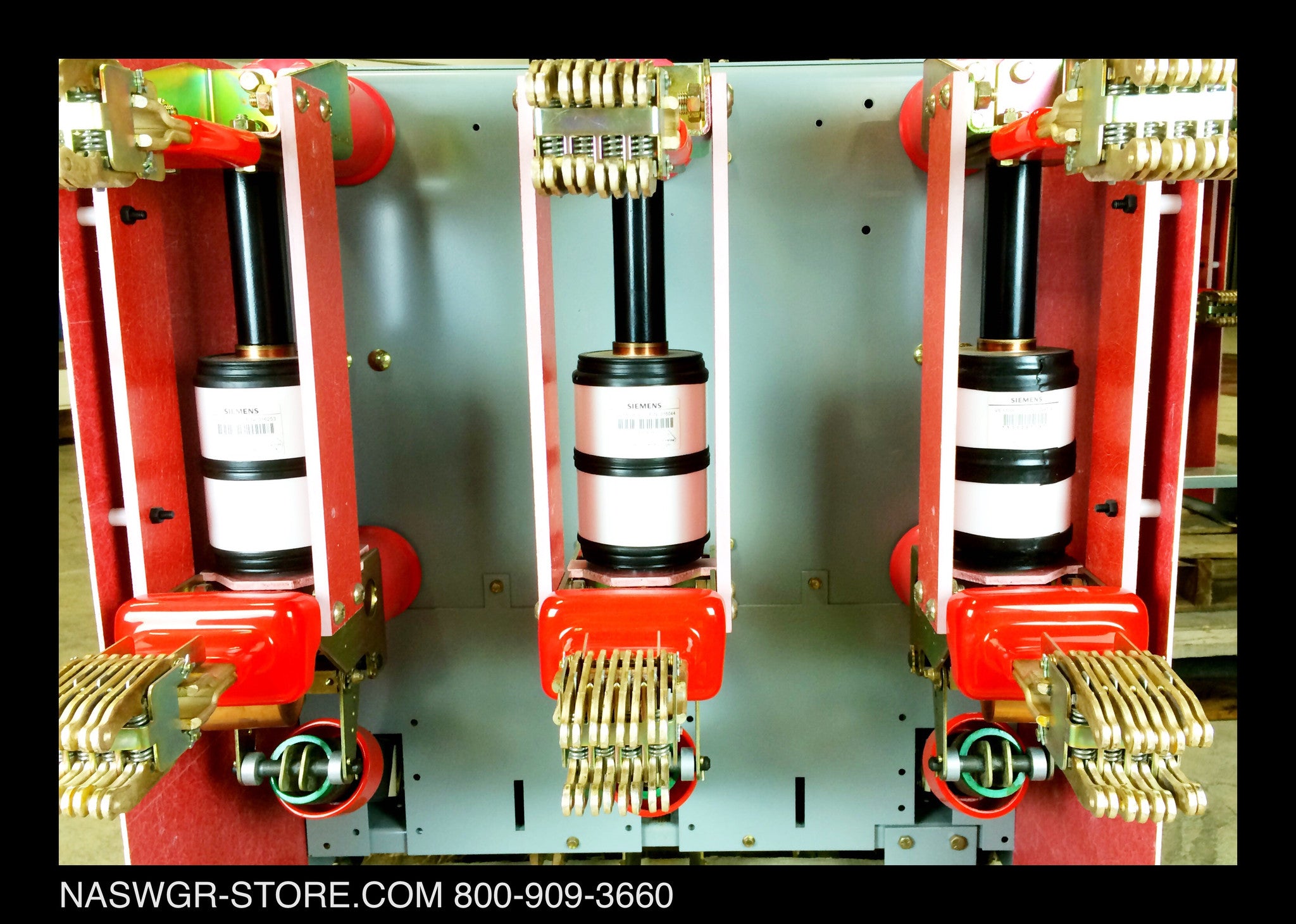

Siemens Bottles
VS 17006 P
F-Nr. 016044

Please Click Here to view our Siemens GMI Switchgear Video

Click here to view our 15-GMI-750-1200-58 Video

Breakers are in excellent condition

Estimated weight: 425 lbs. Please contact us for shipping information.

Item must ship via freight on a pallet.

Each used 15-GMI-750-1200-58 will be cleaned, tested with report and backed by our 1 year warranty.
Hi-Potted, Inspected and Electrically Tested with a Typed Report
